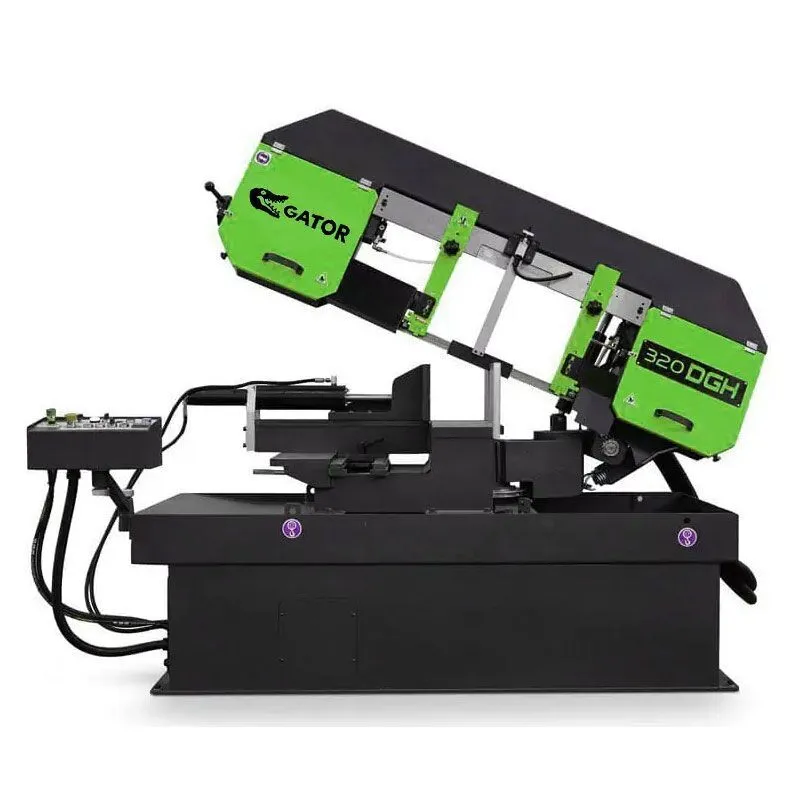

Introducing the new GATOR FAB 12 in. Semi-Automatic Double Miter Bandsaw, model GFSY-320DGH. Perfect for precision cuts with specifications up to 17.7 x 12.6 in. Features adjustable blade speed and robust motor system. Optional enhancements available.
| Round at 0° | 12.6" | 320.04 mm |
| Square at 0° | 12.6 in. | 12.6 in. |
| Rectangle at 0° | 17.7 x 12.6 in. | 17.7 x 12.6 in. |
| Round at 45° | 12.6" | 320.04 mm |
| Square at 45° | 13 x 12.6 in. | 13 x 12.6 in. |
| Rectangle at 45° | 12.6 in. | 12.6 in. |
| Round at -45° | 12.6" | 320.04 mm |
| Rectangle at -45° | 13.38 x 12.6 in. | 13.38 x 12.6 in. |
| Square at -45° | 12.6" | 320.04 mm |
| Round at -60° | 9" | 228.6 mm |
| Rectangle at -60° | 9 x 8.66 in. | 9 x 8.66 in. |
| Square at -60° | 8.66" | 219.96 mm |
| Round at 30° | 12.6" | 320.04 mm |
| Rectangle at 30° | 14.9 x 12.6 in. | 14.9 x 12.6 in. |
| Square at 30° | 12.6" | 320.04 mm |
| Round at -30° | 12.6" | 320.04 mm |
| Rectangle at -30° | 14.9 x 12.6 in. | 14.9 x 12.6 in. |
| Square at -30° | 12.6" | 320.04 mm |
| Blade Size | 163.78 x 1.34 x 0.04 in. | 163.78 x 1.34 x 0.04 in. |
| Blade Speed | 49-394 ft/min. | 49-394 ft/min. |
| Blade Motor | 3 HP | 3 HP |
| Hydraulic Motor | .5 HP | .5 HP |
| Coolant Motor | 0.16 HP | 0.16 HP |
| Material Working Height (from floor to table top) | 33.9" | 861.06 mm |
| Dimensions | 87.8 x 45.27 x 84.25 in. | 87.8 x 45.27 x 84.25 in. |
| Weight | 2,270 lbs. | 2,270 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Hydraulic top clamping
Micro cooling system
10 ft roller idler table
Hydraulic blade tensioning
