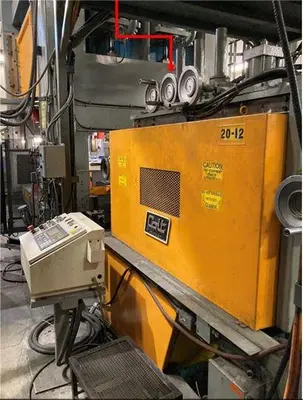

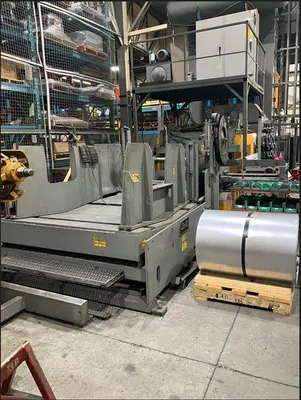

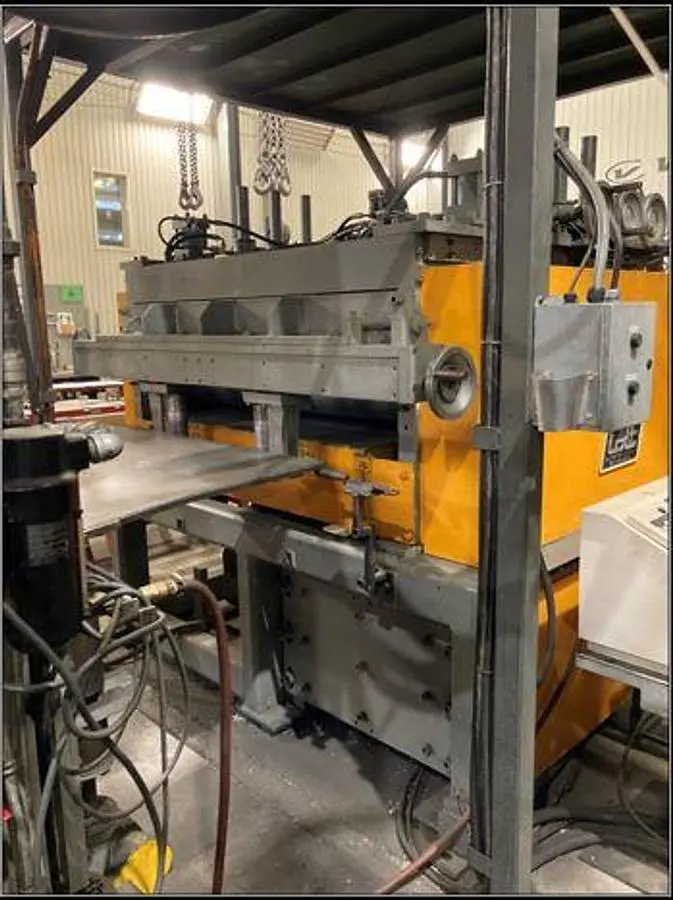

60" x .188" x 30,000 LB COLT FEED LINE
Overview
Description
This used 60" x .188" x 30,000 lb Colt Feed Line is designed for handling a variety of coil materials, making it an excellent addition to your coil processing operations. Capable of accommodating coils up to 60 inches in width and up to 30,000 pounds in weight, this machine effectively manages tasks that involve material thicknesses ranging from 0.025 inches to 0.188 inches. The feed line features a coil inner diameter range of 20 to 24 inches and can handle coils with an outer diameter of up to 60 inches.
With a maximum speed of 60 feet per minute, this feed line is equipped with 3.25-inch diameter pinch and straightener rolls to ensure precise and efficient processing. It operates on a 575 VAC, 3-phase, 60Hz power supply, making it suitable for robust industrial environments. This product's solid construction and reliable performance can optimize your production process by ensuring smooth and consistent material feeding.
Whether enhancing current operations or integrating into new projects, this Colt Feed Line's comprehensive capabilities and robust build make it a valuable tool for industries requiring dependable coil feed lines.
Specifications
MAX MATERIAL WIDTH: 60"
COIL ID RANGE: 20" - 24"
COIL OD: 60"
MAX FEED LENGTH: N/A
MAX COIL WEIGHT: 30,000 LBS
MINIMUM MATERIAL THICKNESS: 0.025"
MAXIMUM MATERIAL THICKNESS: 0.188"
MINIMUM PASS LINE: N/A
MAXIMUM PASS LINE: N/A
MAX SPEED: 60 FPM
PINCH ROLL DIAMETER: 3.25"
STRAIGHTENER ROLL DIAMETER: 3.25"
POWER SUPPLY: 575 VAC, 3PH, 60Hz
