USED DALLAS DRFE-424; DPS-3-7-24RH; DJR-20,000#X24; LC-20000X24
Overview
Description

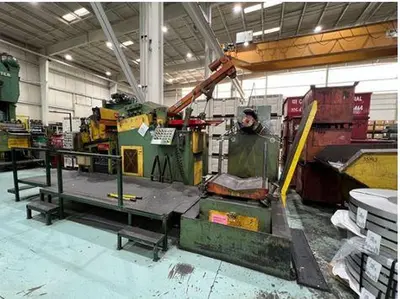

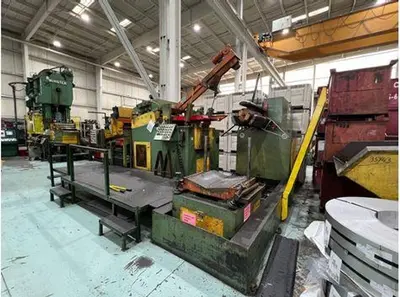

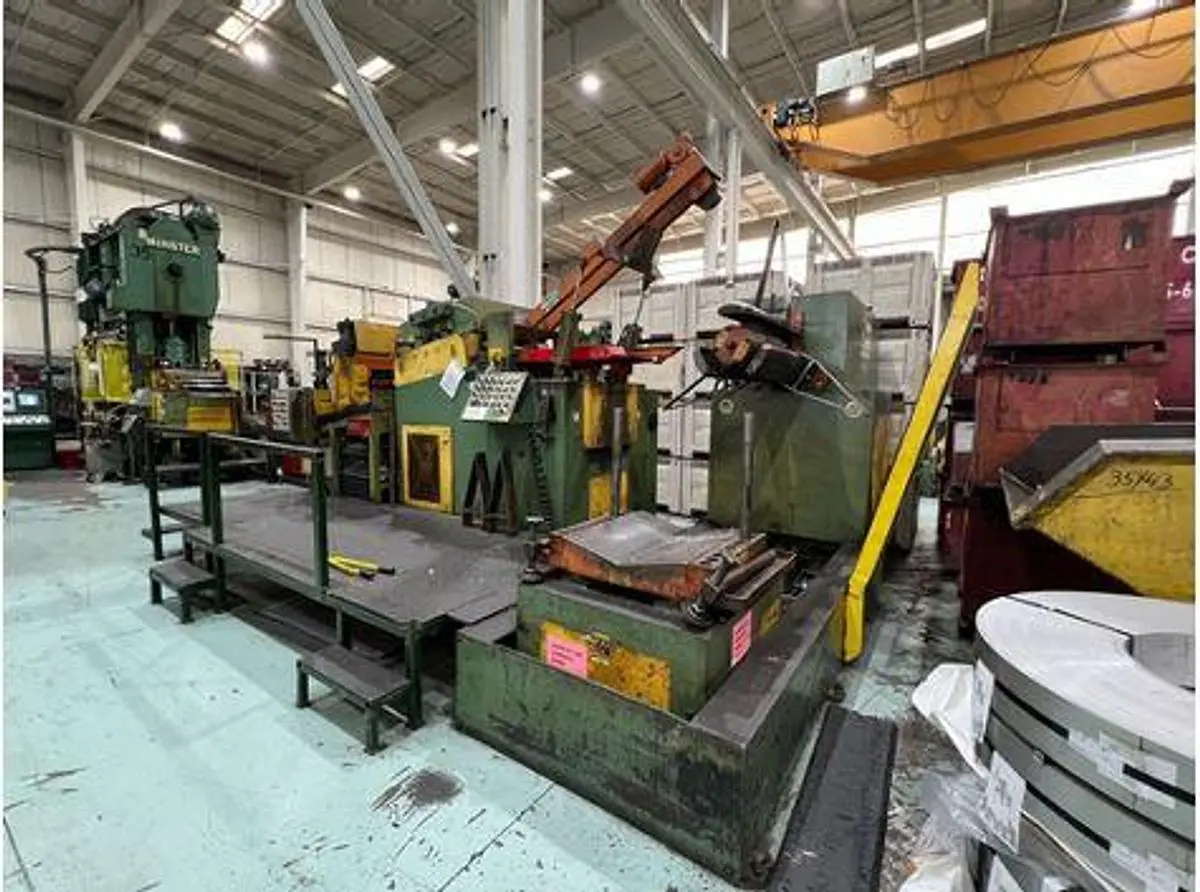

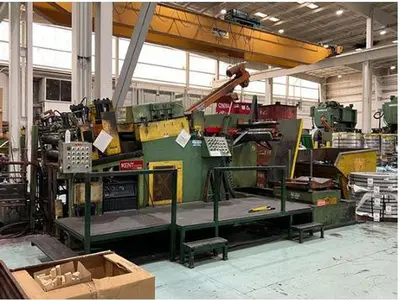

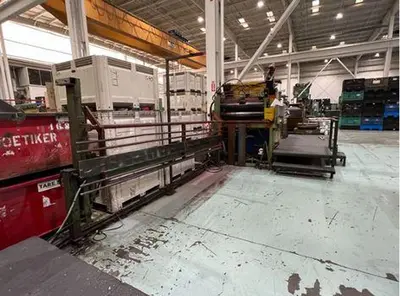

This used Dallas Servo Feed Line is a robust industrial solution designed for heavy-duty coil handling tasks. With a capacity of 20,000 lbs and a width of 24 inches, this model (DRFE-424; DPS-3-7-24RH; DJR-20,000#x24; LC-20000x24) is equipped to manage substantial loads efficiently. It operates at a speed range of 100 to 200 feet per minute, allowing for precise and rapid feed rates suitable for various production environments.
The system includes a straightener with model number DPS-3-7-24RH, featuring seven rolls to ensure accurate material alignment and smooth feeding. The machine's versatile load handling is further supported by a power hold down wheel and adjustable coil ID range of 20-24 inches, accommodating a maximum coil OD of 72 inches. The load car (LC-20000x24) assists in managing the significant coil dimensions, ensuring ease of use and reliability in demanding settings.
For additional functionality, a Kent H-Style End Welder is available at an extra cost. This accessory offers flexibility in processing a range of material widths from 4 to 36 inches and thicknesses from 0.040 to 0.375 inches. The Dallas Servo Feed Line represents a comprehensive solution for businesses requiring meticulous material handling combined with efficient, high-capacity performance.
Specifications

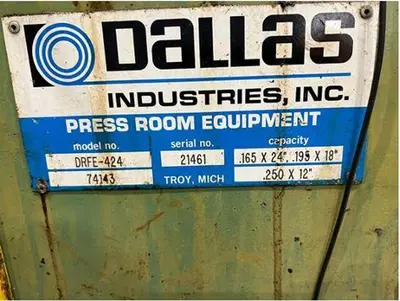

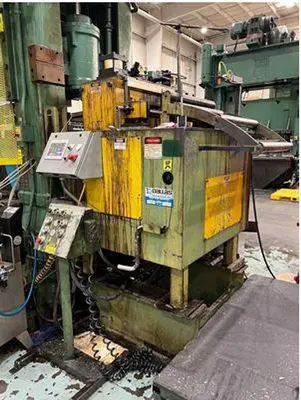

FEEDER MODEL NUMBER: DRFE-424 / 74143
FEEDER SERIAL NUMBER: 21461
CABINET STYLE: YES
CAPACITY: .165" x 24" / .195" x 18" / .250" x 12"
THREAD TABLE: YES

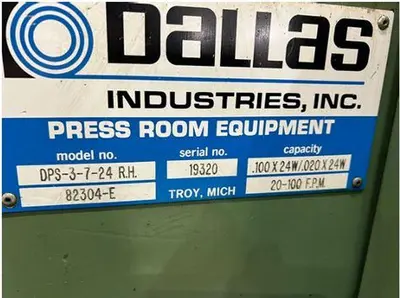

STRAIGHTENER MODEL NUMBER: DPS-3-7-24RH / 82304-E
STRAIGHTENER SERIAL NUMBER: 19320
POWERED: YES
CAPACITY: .020" - .100" x 24"
SPEED: 100-200 FPM
NUBER OF STRAIGHTENER ROLLS: 7

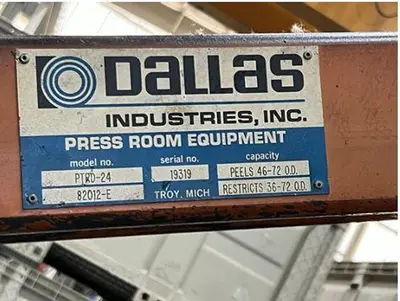

HOLD DOWN ARM MODEL NUMBER: PTRD-24 / 82012-E
HOLD DOWN ARM SERIAL NUMBER: 19319
PEELS: 46" - 72" OB
RESTRICTS: 36" - 72"
POWER HOLD DOWN WHEEL: YES

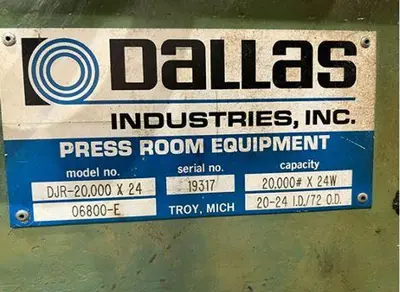

UNCOILER MODEL NUMBER: DJR-20,000#x24 / 06800-E
UNCOILER SERIAL NUMBER: 19317
CAPACITY: 20,000 LBS x 24" WIDE
COIL ID RANGE: 20" - 24"
MAX COIL OD: 72"

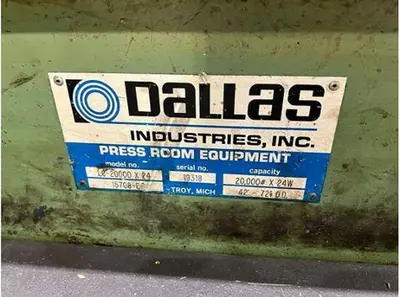

LOAD CAR MODEL NUMBER: LC-20000x24 / 15708-E
LOAD CAR SERIAL NUMBER: 19318
CAPACITY: 20,000 LBS x 24" WIDE
OD RANGE: 42" - 72"
