FUNKE TPL02-K-36-22 Plate Heat Exchanger 28 Bar USED
Overview
Description

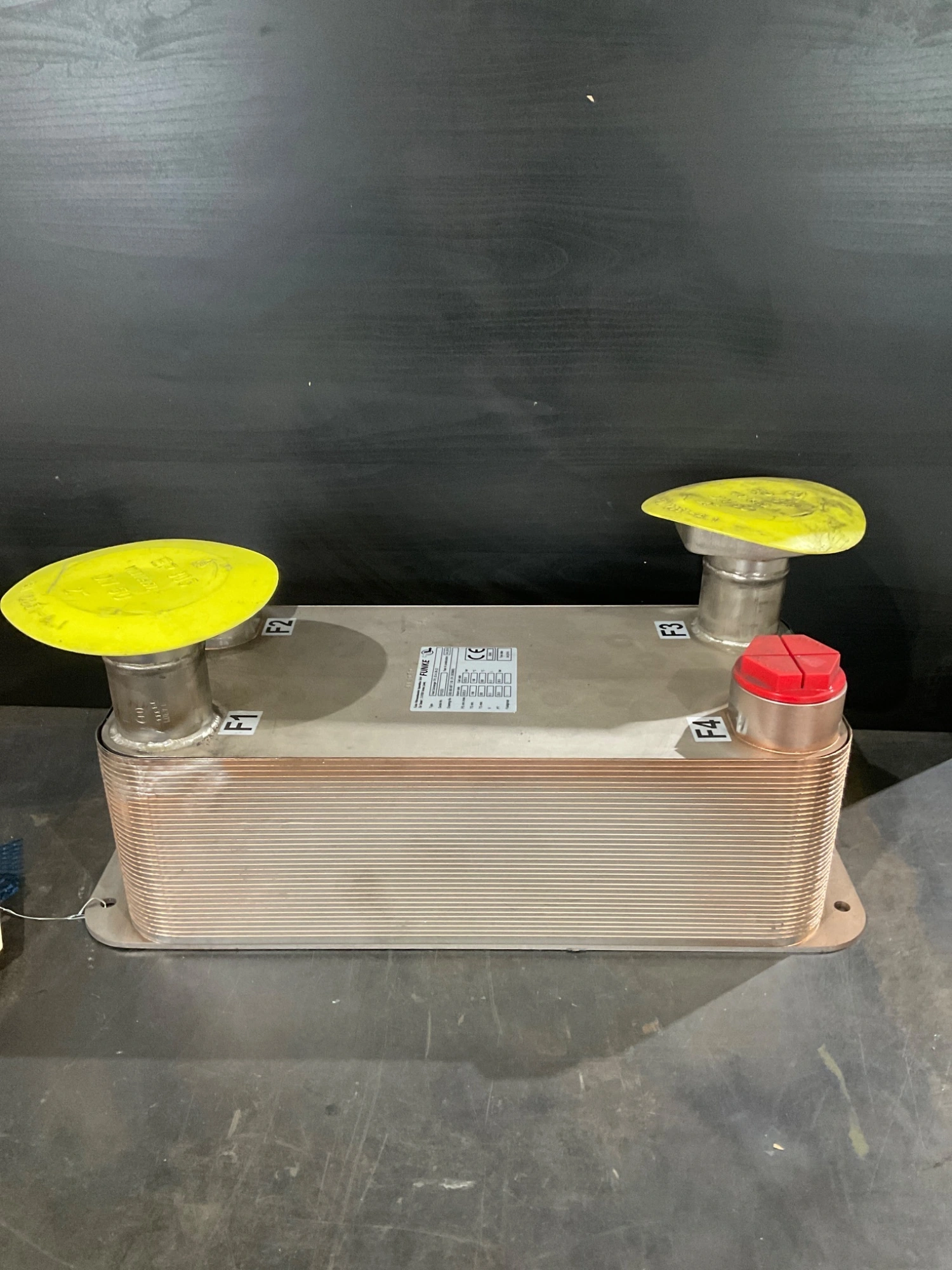

This listing is for a USED FUNKE TPL02-K-36-22. This unit is designed for heat transfer between two media using a plate heat exchanger configuration. The system supports up to 28 bar pressure, operates across a wide temperature range from -196°C to 200°C, and includes a compact stacked plate design with flanged connections for industrial fluid processing applications.

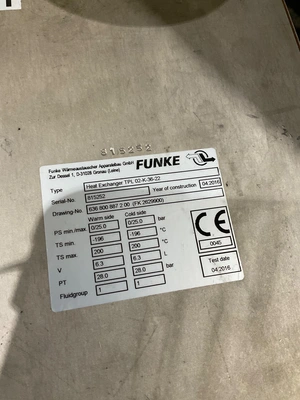

Specifications
| Dimensions | 24 X 10 X 10 | 24 X 10 X 10 |
|---|---|---|
| Weight | 87 LBS | 87 LBS |
Manufacturer: Funke Wärmeaustauscher Apparatebau GmbH
Model/Series: TPL02 Series
Part Number: TPL02-K-36-22
Condition: USED
YOM: 04/2016
Device Type: Plate Heat Exchanger
Function: Transfers heat between two fluids
Pressure Rating:
- 0/25.0 bar (warm side)
- 0/25.0 bar (cold side)
- Test Pressure: 28.0 bar
Temperature Range:
- Min: -196 °C
- Max: 200 °C
Volume:
- 6.3 L (each side)
Fluid Group: 1
Mounting: Stationary with base plate
Country of Manufacture: Germany
