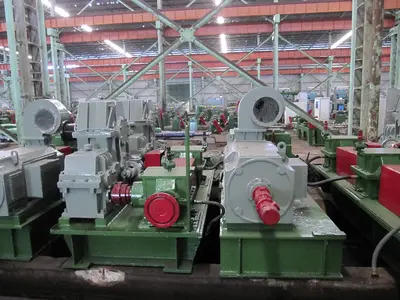

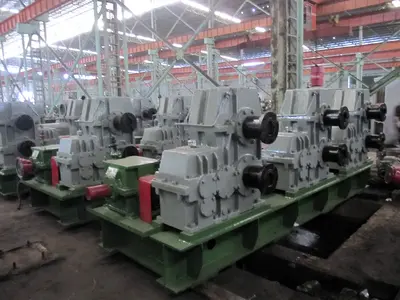

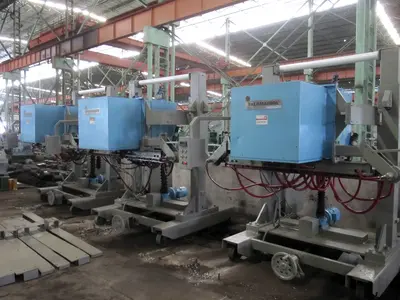

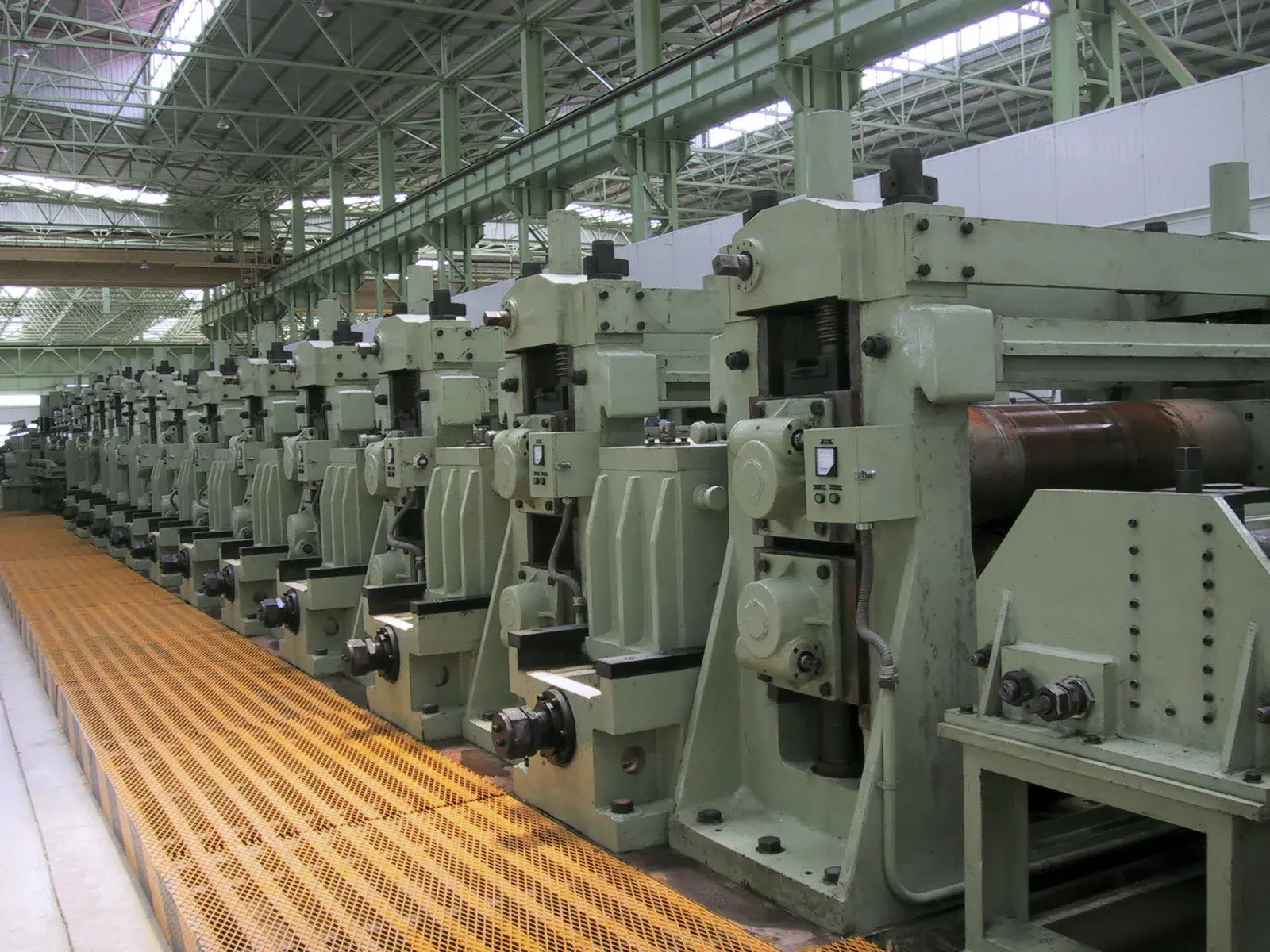

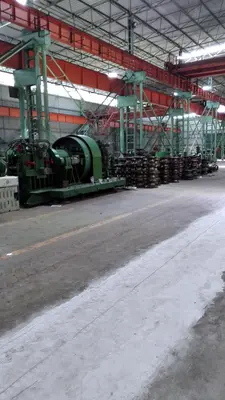

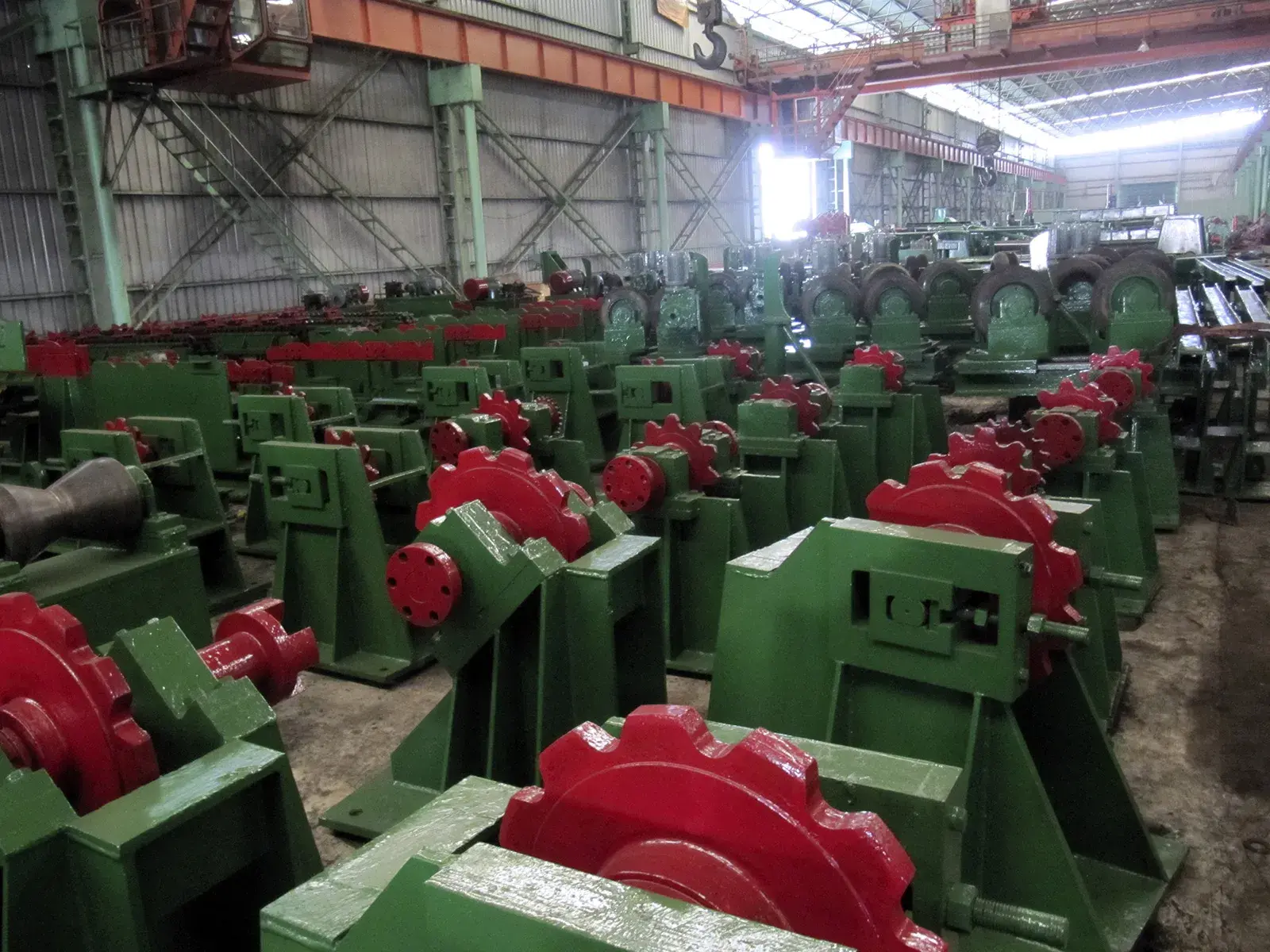

USED 2007 SHIJIAZHUANG BEARING / SHENYANG XINRUITE Φ140 + Φ245 ERW TUBE MILL PACKAGE WITH ZJY180 SLITTER
Overview
Description
Complete 2‑Line ERW Tube Mill Package (Φ140 + Φ245) with Full OCTG Capability and Shared 1800 mm Slitter
The COMPLETE ERW TUBE MILL PACKAGE — Φ140 LINE + Φ245 LINE + Slitter is a fully integrated steel tube production system designed for high-efficiency manufacturing of round, square, and rectangular tubing. This industrial line processes master steel coils through precision slitting, roll forming, and high-frequency welding to deliver consistent, high-quality tube production for construction, automotive, structural, and fabrication industries.
Specifications
OD Range: 2.375" – 5.5"
Wall Range: 0.190" – 0.275"
Grades: J55 UPG, WPT HC80
Line Speed: 1,020 – 1,440 ft/hr
Joint Lengths: 33 ft & 42 ft
Weight per Foot: 4.44 – 15.36 lbs/ft
Φ245 Tube Mill - OD Range: 4.5" – 9.625"
Φ245 Tube Mill - Wall Range: 0.250" – 0.415"
Φ245 Tube Mill - Grades: J55, J55 UPG, J55 HC, WPT HC80
Φ245 Tube Mill - Line Speed: 840 – 1,200 ft/hr
Φ245 Tube Mill - Joint Length: 42 ft
Φ245 Tube Mill - Weight per Foot: 11.36 – 38.97 lbs/ft
ZJY180 Slitting Line: Shared by both Mills
Max Coil Width: 1800 mm
High‑Frequency Welding System: 600 kW
Equipped With
Hydrostatic Testers
Ultrasonic NDT Systems (weld seam + body)
Complete Relay‑Logic + DC‑Drive Control System
Φ340 Oiling Line
Φ165 Oiling Line
Complete Electrical & Hydraulic Systems
600 kW HF welder + induction heating system
Large Spare Roll Package
Testing Laboratory
Φ140 ERW Tube Mill: uncoiler. shear/welder. accumulator. forming & sizing / cutoff
Φ245 ERW Tube Mill: uncoiler. shear/welder. accumulator. forming & sizing / cutoff
