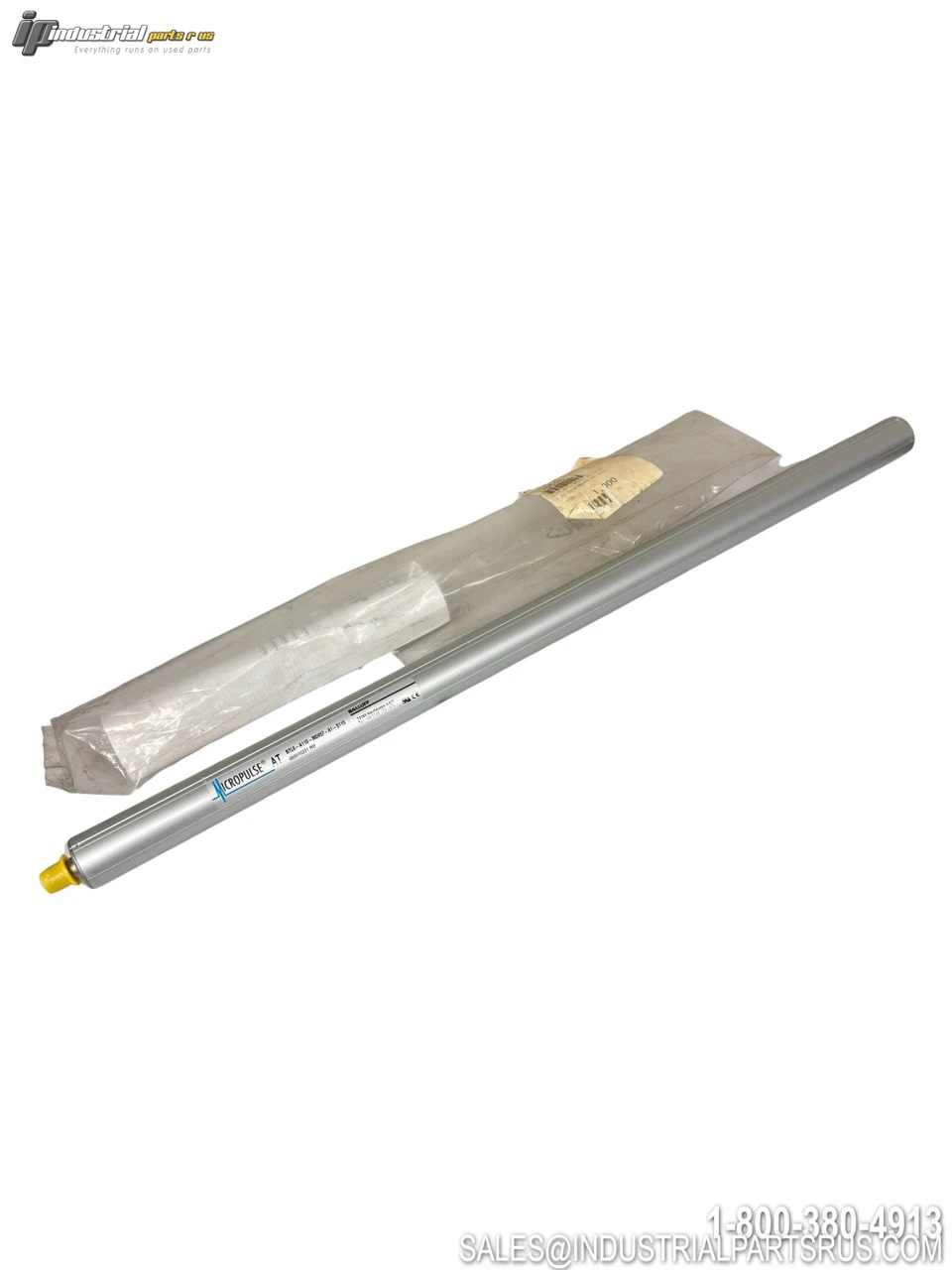

NEW BALLUFF BTL6-A110-M0457-A1-S115

The Balluff BTL6-A110-M0457-A1-S115 is a Micropulse SLT linear position transducer designed for precise position measurement in industrial applications. This analog output transducer features magnetostrictive technology for accurate and reliable position feedback with 457mm stroke length.
Specification
Value
Brand
Balluff
Model/Part Number
BTL6-A110-M0457-A1-S115
Product Type
Micropulse Linear Position Transducer
Stroke Length
457mm (18 inches)
Output Signal
0-10V and 10-0V analog
Supply Voltage
24VDC ±20%
Current Draw
≤ 150mA
Resolution
≤ 10μm
Repeat Accuracy
≤ 10μm
Non-linearity
± 100μm
Update Rate
1ms
Operating Temperature
-40 to +80°C
Protection Class
IP67
Housing Material
Anodized aluminum
Connection Type
Connector
Measurement Technology
Magnetostrictive
We warranty all items for 30 days from date of purchase.

SKU: AI1704
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 6.00
(in)
Height: 5.00
(in)
Depth: 25.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Analog voltage
Sensor Type: Position
Full Load Amps: ≤ 150mA
Manufacturer: Balluff
Part Number: BTL6-A110-M0457-A1-S115
Shelf: B-17
Model: BTL6-A110-M0457-A1-S115
MPN: BTL6-A110-M0457-A1-S115
Type: Linear Sensor
