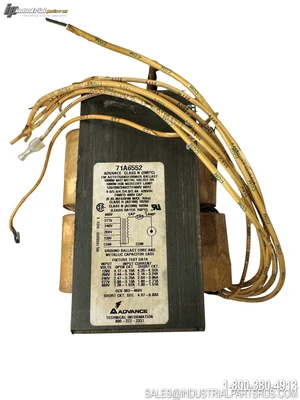

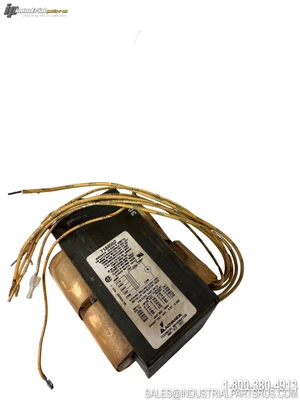

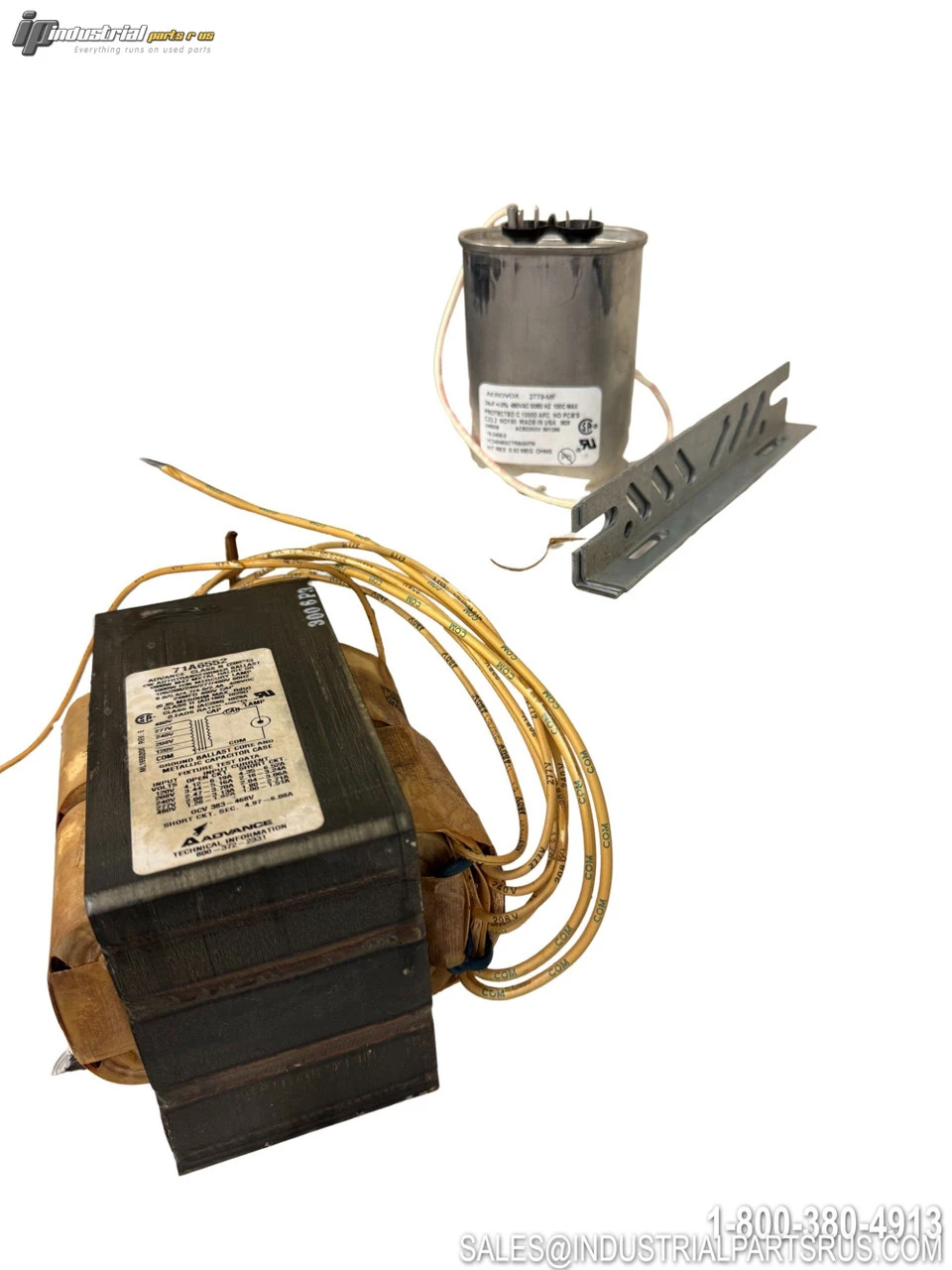

NEW ADVANCE 71A6552

The Advance 71A6552 is a professional-grade metal halide ballast designed for 1000-watt M47 metal halide lamps. This probe start ballast features a 5-tap voltage configuration supporting multiple input voltages and includes core and coil construction with high-quality electrical components.
Specification
Value
Brand
Advance
Model/Part Number
71A6552
Manufacturer
Philips Advance
Lamp Type
Metal Halide
Lamp Wattage
1000W
ANSI Code
M47
Input Voltage
120/208/240/277/480V AC
Input Watts
1080W
Frequency
60 Hz
Circuit Type
CWA
Ballast Type
Magnetic
Start Type
Probe Start
Power Factor
0.9
Ballast Factor
1
Operating Amps @ 120V
9.05A
Operating Amps @ 208V
5.6A
Operating Amps @ 240V
4.7A
Operating Amps @ 277V
4.07A
Operating Amps @ 480V
2.36A
Minimum Starting Temperature
-20°F
Insulation Class
H (180°C)
Housing Material
Steel

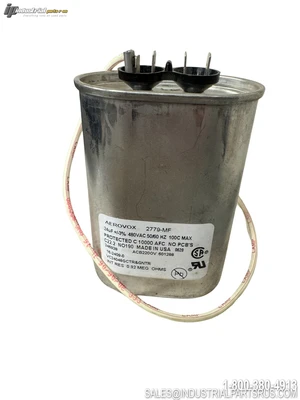

Capacitor Value
24 μF
Capacitor Voltage Rating
480V
Capacitor Temperature Rating
105°C
Dimensions (L x W x H)
6" x 4-11/16" x 4-3/8"
Number of Lamps
1
We warranty all items for 30 days from date of purchase.

SKU: AI1699
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 6.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Advance
Part Number: 71A6552
Shelf: J-125
Model: 71A6552
MPN: 71A6552
Type: Power Supply
