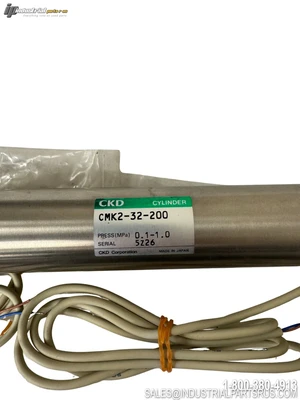

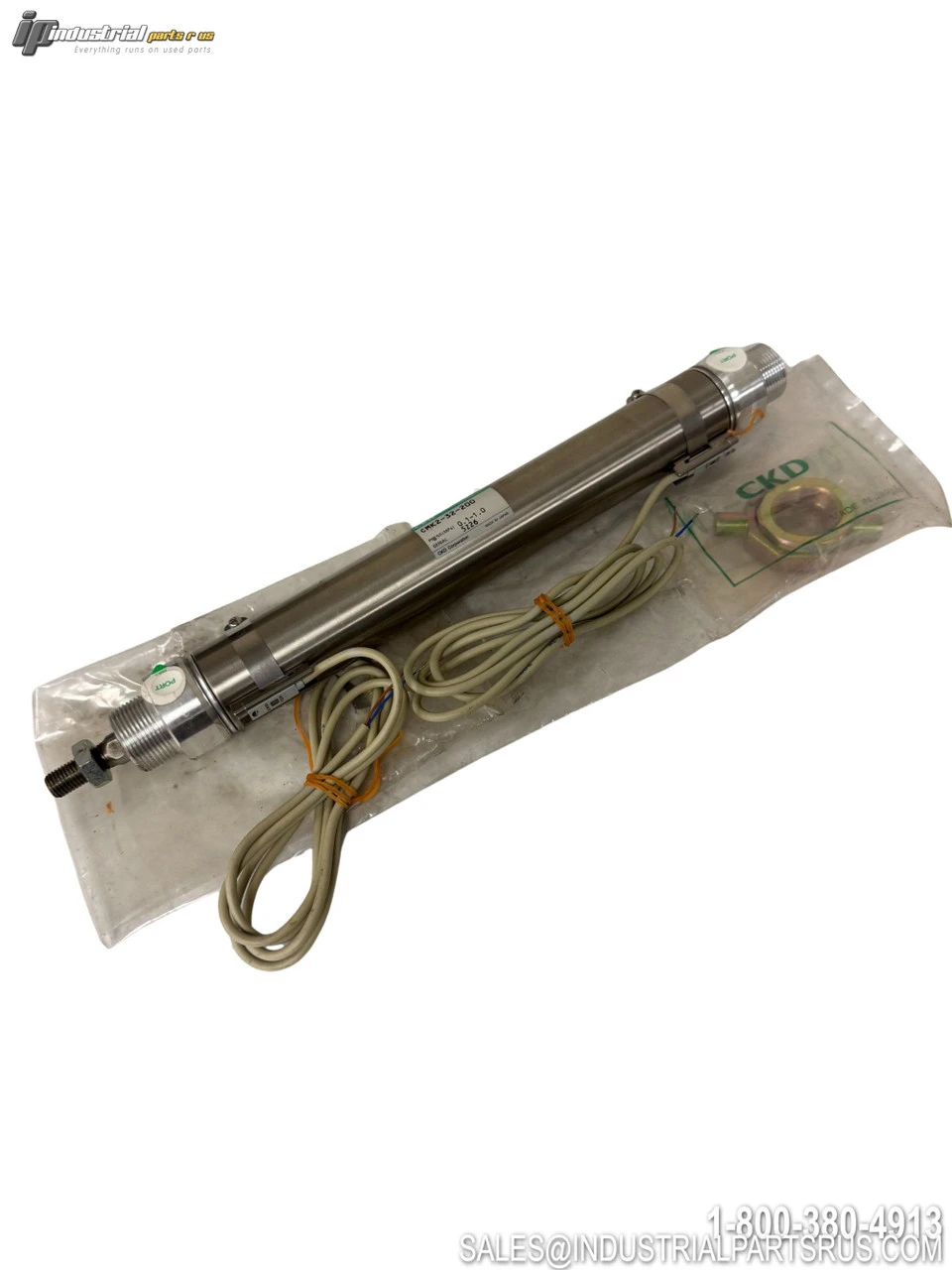

NEW CKD CMK2-32-200

The CKD CMK2-32-200 is a medium bore size pneumatic cylinder designed for industrial automation and fluid control applications. This double acting, single rod cylinder features high corrosion resistance and long service life, making it ideal for general purpose pneumatic applications requiring reliable compressed air operation.
Specification
Value
Brand
CKD
Model/Part Number
CMK2-32-200
Product Type
Pneumatic Cylinder
Bore Diameter
32mm
Stroke Length
200mm
Cylinder Action
Double Acting
Working Fluid
Compressed Air
Max Operating Pressure
1.0 MPa
Min Working Pressure
0.1 MPa
Proof Pressure
1.6 MPa
Port Size
Rc1/8
Ambient Temperature
-10 to 60°C (no freezing)
Working Piston Speed
50 to 500 mm/s
Cushion Type
Rubber Cushion
Lubrication
Not Available
Allowable Energy Absorption
0.424 J
Stroke Tolerance
+2.0/0 mm
We warranty all items for 30 days from date of purchase.

SKU: AI1703
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 10.00
(in)
Height: 5.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: CKD
Part Number: CMK2-32-200
Shelf: B-16
Bore Diameter: 32 mm
Model: CMK2-32-200
MPN: CMK2-32-200
Type: Pneumatic Cylinder
