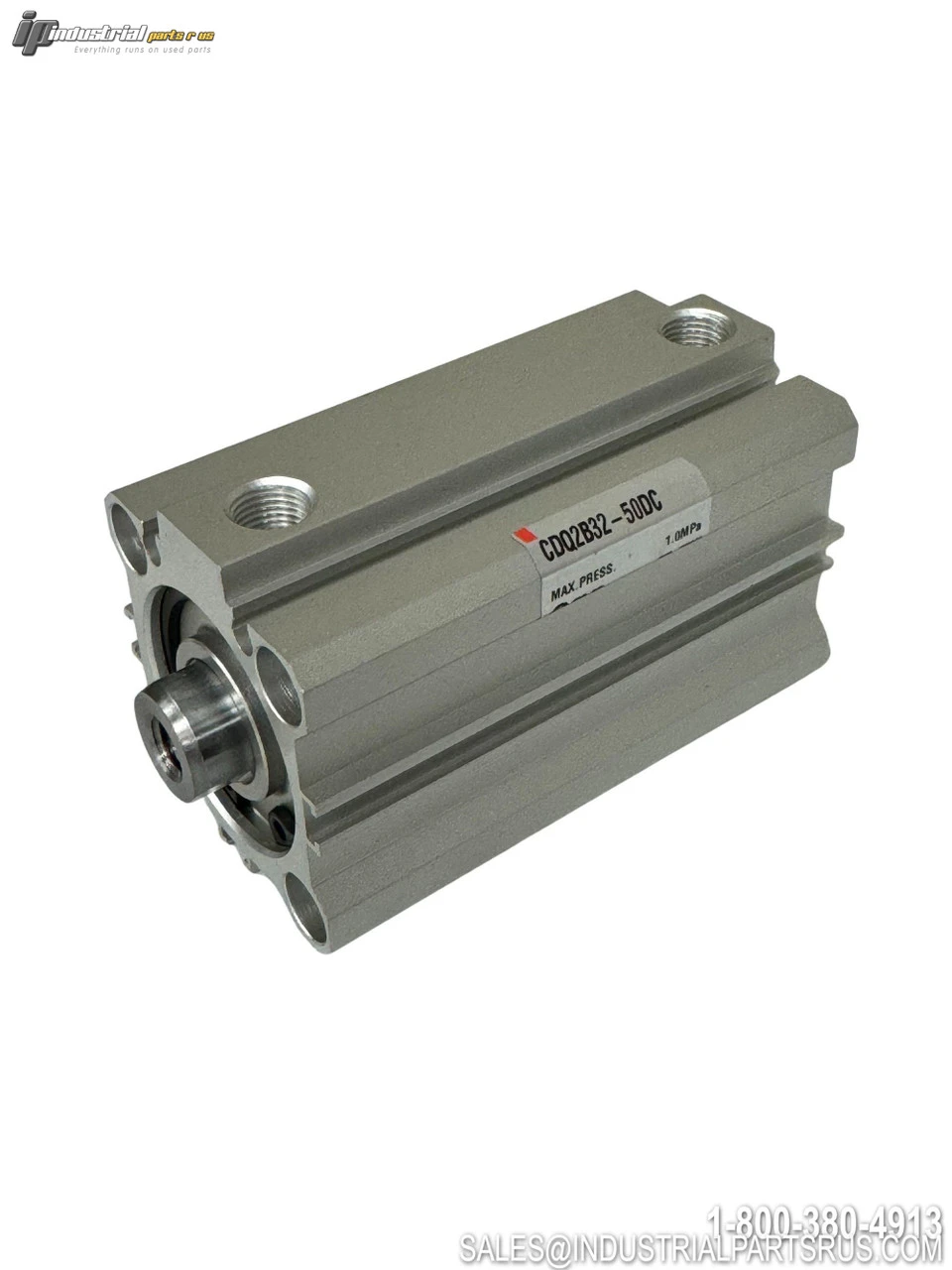

NEW SMC CDQ2B32-50DC
Overview
Description
The SMC CDQ2B32-50DC is a compact pneumatic cylinder from SMC's CQ2 series, designed for space-saving automation applications. This cylinder features a compact body design with 32mm bore diameter and 50mm stroke length. The CQ2 series offers double acting, single rod operation with through-hole mounting capabilities.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2B32-50DC
Series
CQ2
Product Type
Compact Cylinder
Bore Diameter
32mm
Stroke Length
50mm
Cylinder Action
Double Acting
Rod Type
Single Rod
Mounting Type
Through-hole
Port Thread Type
Rc (BSPT)
Rod End Thread
Female Thread
Auto Switch Capability
Yes
Built-in Magnet
Yes
Maximum Operating Pressure
1.0 MPa
Allowable Kinetic Energy (32mm)
0.15J (Standard), 0.29J (With Bumper)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1707
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQ2B32-50DC
Shelf: B-6
Bore Diameter: 32 mm
Model: CDQ2B32-50DC
MPN: CDQ2B32-50DC
Type: Compact Cylinder
