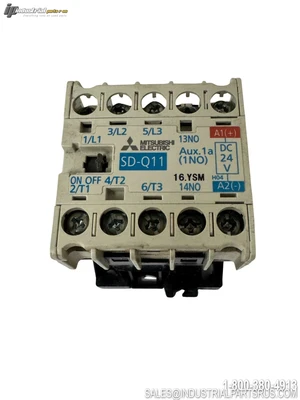

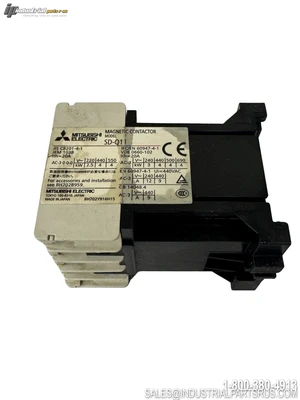

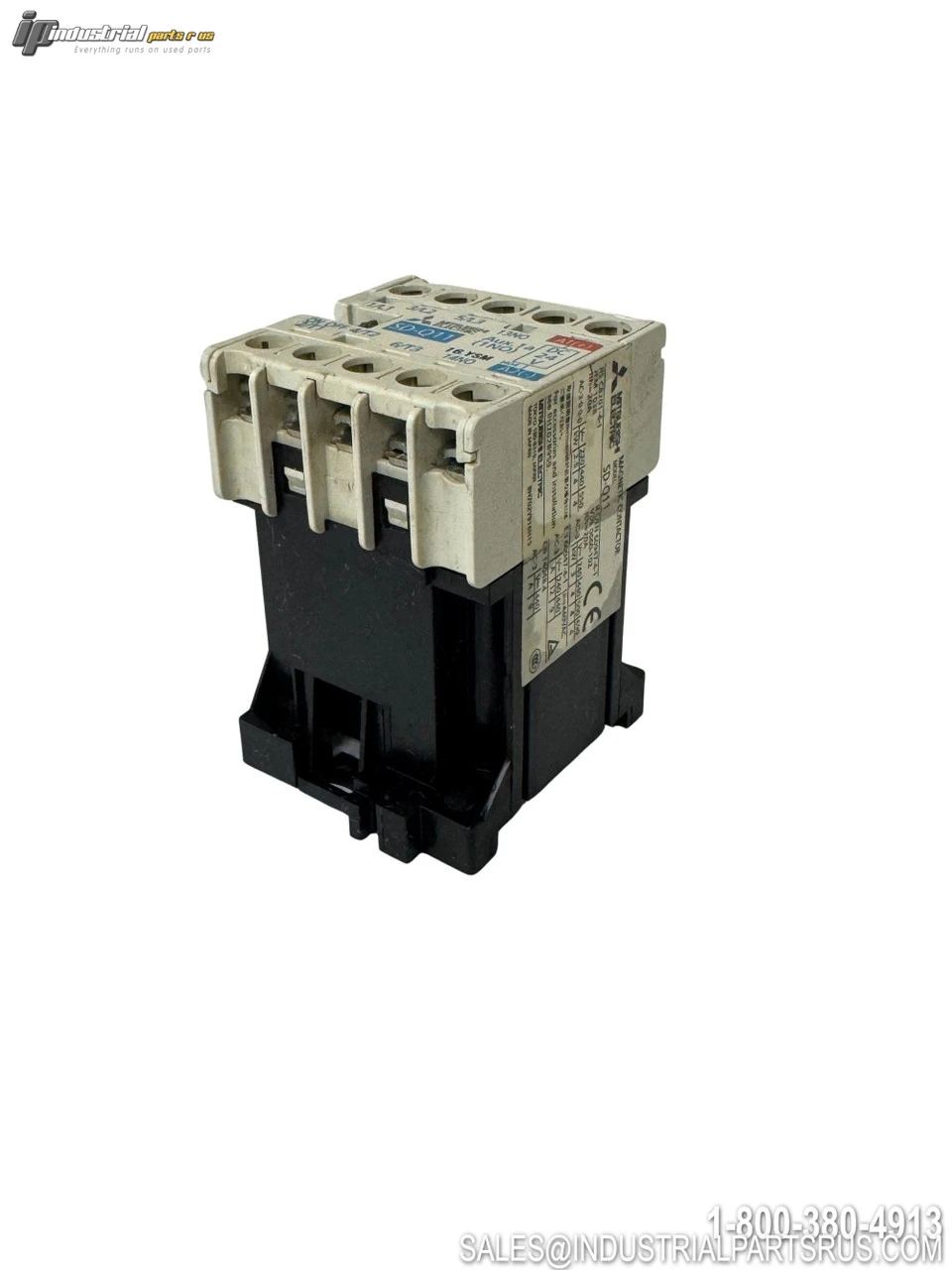

USED MITSUBISHI SD-Q11

The Mitsubishi SD-Q11 is a non-reversing DC operated magnetic contactor from the MS-N series. This industrial-grade contactor is designed for reliable motor starting and stopping applications with a 24VDC control coil voltage and 9A rated current capacity.
Specification
Value
Brand
Mitsubishi
Model/Part Number
SD-Q11
Series
MS-N
Type
Non-Reversing DC Operated
Coil Voltage
24VDC
Current Type
DC
Rated Current (380-440V)
9A
Number of Poles
3
Frame Size
11
Rated Voltage
690V
Rated Capacity (220-240V)
3 kW
Rated Capacity (380-440V)
4 kW
Frequency Range
50/60 Hz
Wiring Type
Screw-Clamp
Min Operating Temperature
-10°C
Max Operating Temperature
40°C
Standards Compliance
EN60947-4-1
We warranty all items for 30 days from date of purchase.

SKU: AI1700
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Mounting Style: DIN Rail/Surface Mount
Current Rating: 9A
Country/Region of Manufacture: Japan
Material: Thermoplastic
Manufacturer: Mitsubishi
Part Number: SD-Q11
Series: MS-N
Shelf: C-18
Model: SD-Q11
Coil Voltage: 24 VDC
Horsepower: 4 HP
MPN: SD-Q11
Type: Contactor
