USED FANUC ARCMATE 120ID

2020 Fanuc ArcMate 120iD Robotic Aluminum Welding Cell — 877 Running Hours

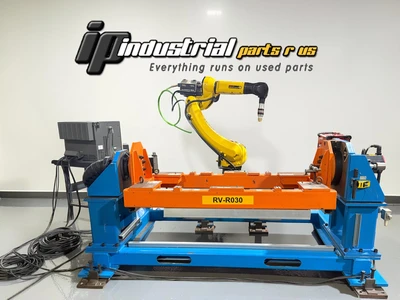

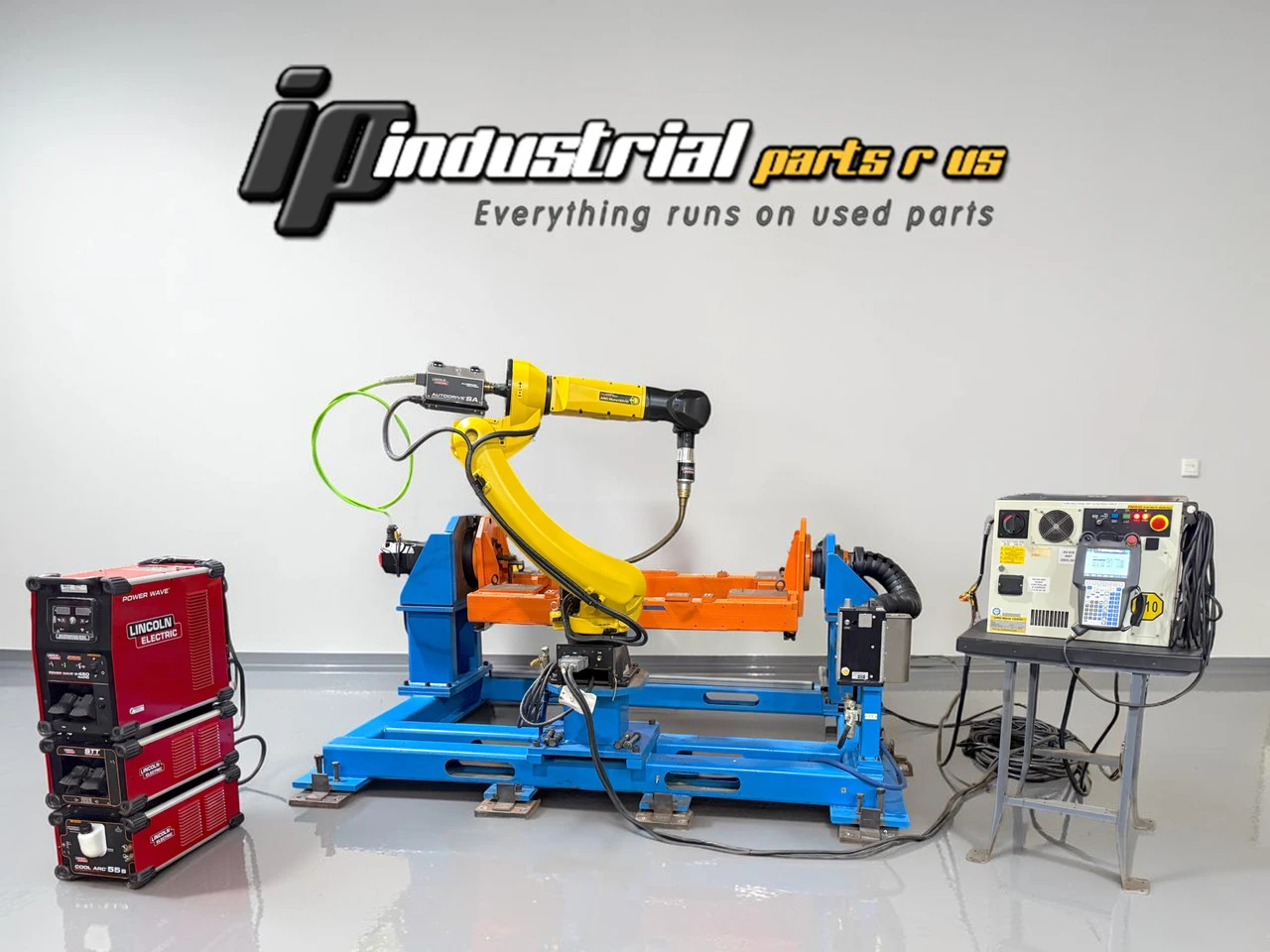

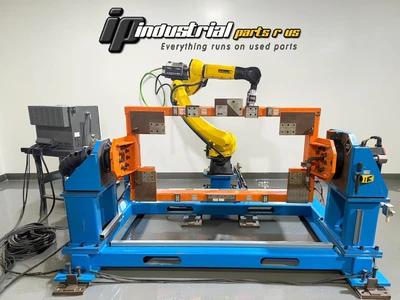

This is a
complete, turnkey robotic aluminum welding cell
built around a 2020 Fanuc ArcMate 120iD with the R-30iB Plus controller. The system has
only 877.5 actual program-execution running hours
. This system saw very limited volume before being decommissioned, leaving you with a turnkey aluminum welding cell at a fraction of new-build pricing and lead time.
The cell has been received at our Bardstown, KY facility, powered up, and jogged on our floor. All major components are present, accounted for, and operational.

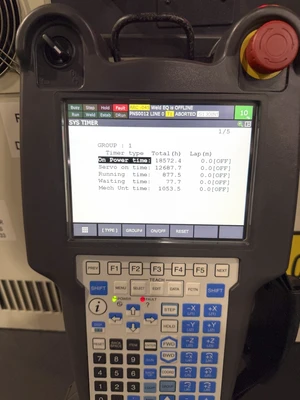

Pulled directly from the controller SYS TIMER (photo included in listing):
Running time (program execution / motion / welding): 877.5 hours
— this is the wear-relevant figure
Servo on time: 12,687.7 hours (servos energized / armed-ready state)
Power-on time: 18,572.4 hours (controller power on the bus)
Mechanical unit time: 1,053.5 hours
Duty cycle works out to roughly 7%, consistent with lots of setup-and-wait time and very little actual weld production. For reference, a Fanuc arc welding robot is rated for tens of thousands of motion hours before major service, making this functionally a low-wear unit.
Genuine low-hour history
— 877.5 running hours in a robot built for tens of thousands
Professionally integrated cell
— clean wiring, properly configured Fanuc external-axis positioner, full ArcLink integration with the Lincoln welder
True aluminum-dedicated welding package
— Lincoln Autodrive SA "Aluminum Solutions" push-pull feeder is the right tool for the job, not a steel feeder retrofitted for aluminum
Power Wave R450 RAPID
(brand new) — upgraded high-speed variant, not the standard R450
STT process module included
— Surface Tension Transfer for thin aluminum and root pass control
Servo headstock / tailstock positioner
integrated as a Fanuc external axis through the R-30iB Plus
Skid-mounted
— single-pick relocation, no field re-integration required

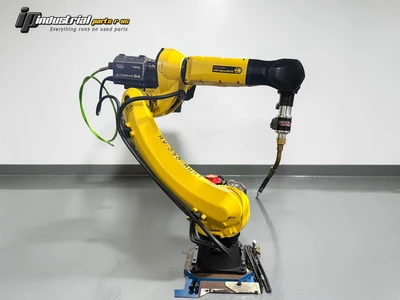

Robot:
Fanuc ArcMate 120iD, 6-axis articulated arc welding robot
Year of Manufacture:
2020
Running Hours:
877.5 (see hours disclosure above)
Payload:
25 kg
Reach:
1,831 mm (72.1")
Repeatability:
±0.02 mm
Robot Mass:
250 kg

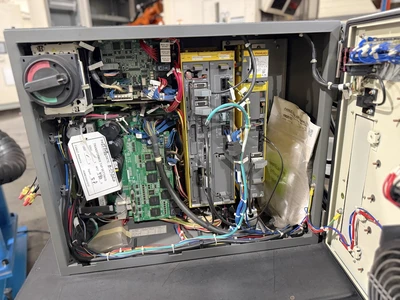

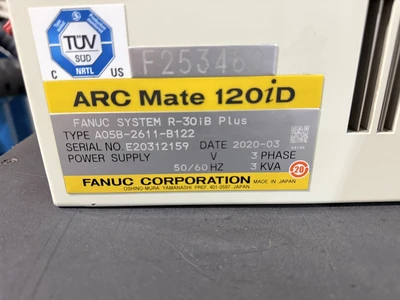

Controller:
Fanuc R-30iB Plus
Teach Pendant:
Fanuc iPendant — included
Cabling:
Complete robot, control, and welding lead set — included
Software:
ArcTool
Voltage:
480V, 3-Phase (transformer tap verified 8-27-2020)
Communication:
ArcLink to Lincoln Power Wave, Ethernet ready

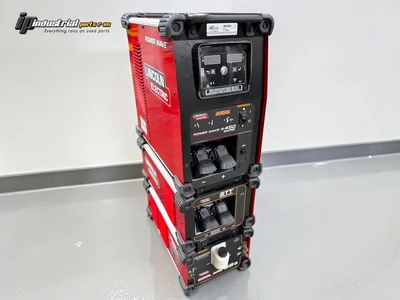

Power Source:
Lincoln Power Wave R450 RAPID —
BRAND NEW
STT Module:
Lincoln Power Wave STT — used, fully functional
Cooling:
Lincoln Cool Arc 55S liquid torch cooler — used, fully functional

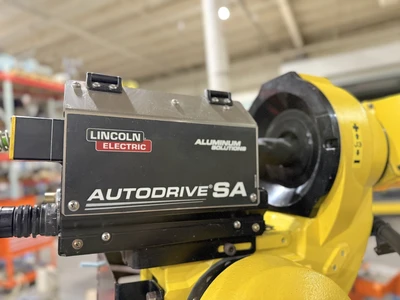

Wire Feeder:
Lincoln Autodrive SA "Aluminum Solutions" with pull-feeder torch assembly — purpose-built for aluminum MIG

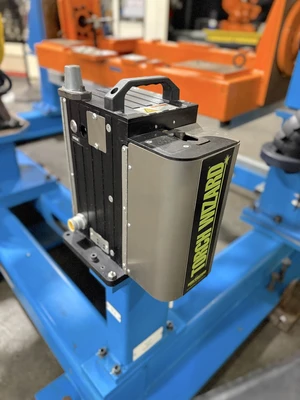

Torch Reamer:
TorchWizard EL-NCS-20 nozzle cleaner / torch maintenance station — skid-mounted
Payload Capacity:
500 kg (1,100 lb)
Headstock Drive:
Fanuc A06B-0243-B705 AC servo motor — integrated as a Fanuc external axis
Distance Between Centers (headstock to tailstock):
71"
Existing Fixture Table:
62-3/4" between centers × 37-1/2" deep — included as installed
Skid Footprint:
106" wide × 80" deep
Fanuc ArcMate 120iD robot arm
Fanuc R-30iB Plus controller
Fanuc iPendant teach pendant
Complete robot, control, and welding cable set
NEW Lincoln Power Wave R450 Rapid welding power source
Lincoln Power Wave STT module
Lincoln Cool Arc 55S torch cooler
Lincoln Autodrive SA Aluminum Solutions push-pull wire feeder

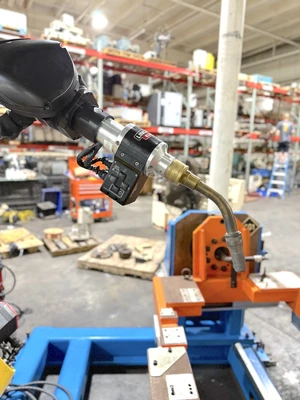

Aluminum-rated robotic torch assembly
TorchWizard EL-NCS-20 torch cleaner / nozzle reamer
500 kg servo-driven headstock/tailstock positioner
Existing tooling fixture table
Heavy-duty common skid base
We maintain a solid stock of
welded-wire robotic safety fencing with leg bases and light curtain assemblies
at our Bardstown, KY facility. If you need to enclose this cell to ANSI/RIA R15.06 standards, we can quote a complete perimeter guarding package shipped with the system. Save the lead time and the freight on a second shipment.
Ideally suited for:
Aluminum frame, chassis, and bracket fabrication
Marine aluminum fabrication (boat hulls, tanks, frames)
Aerospace aluminum components
Aluminum trailer and truck-body components
Any high-mix / medium-volume aluminum MIG application requiring a rotating positioner
Available for in-person inspection and live power-up demonstration at our facility in Bardstown, Kentucky. Buyer is responsible for freight — we load free of charge. International Buyers are
welcome.
We carry many brands from Fanuc, ABB, Yaskawa, or Motoman. Volume discount available if purchased with a perimeter fencing package.
