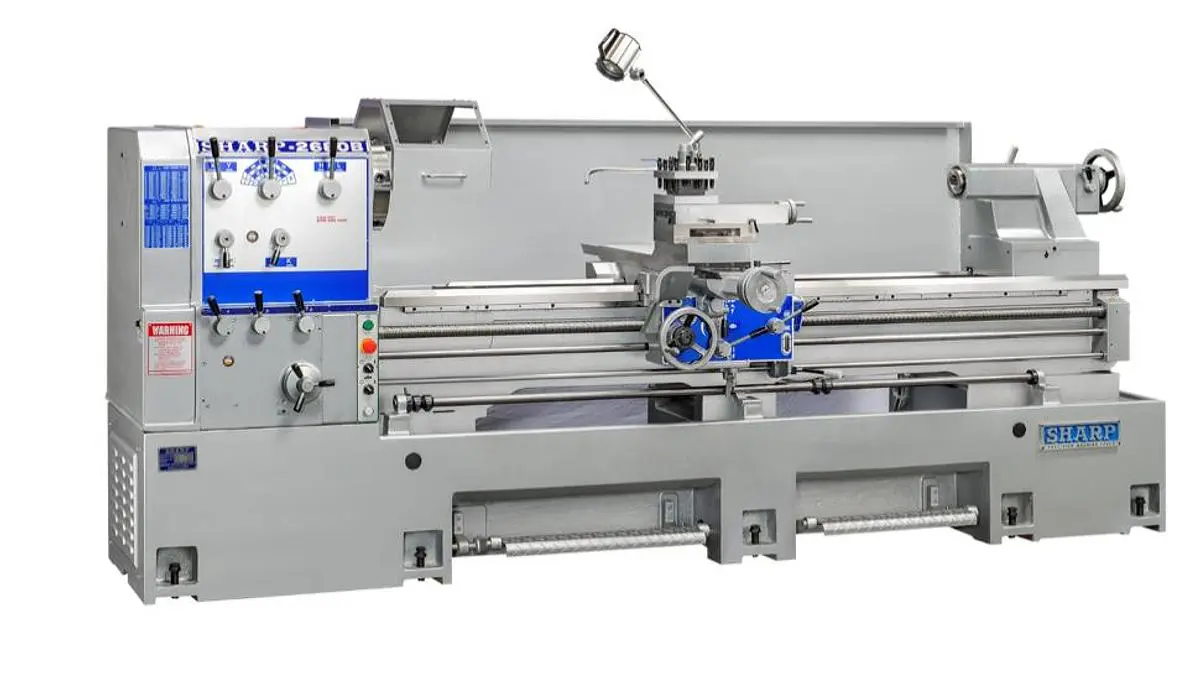

NEW SHARP 22100B

ü  Capacity
¨      Swing Over Bed                                                                                                                         22”
¨      Swing Over Cross Slide                                                                                                             13.2”
¨      Swing Over Gap                                                                                                                         31”
¨      Distance Between Centers                                                                                                       100”
ü  Headstock
¨      Spindle Nose Type                                                                                                                    D1-11 Camlock
¨      Spindle Bore                                                                                                                               4.5”
¨      Spindle Speeds (12)                                                                                                                    10-1,000 rpm
¨      Taper of Spindle Bore                                                                                                               MT#7
¨      Taper of Center                                                                                                                          MT#5
ü  Threads and Feeds
¨      Longitudinal Feeds – in/rev (18)                                                                                             0.0022 - 0.032”
¨      Cross Feeds – in / rev {#}                                                                                                        0.0026 –0.035” {17}
¨      Inch Threads (#)                                                                                                                        2-56 tpi {44}
¨      Metric and Module Threads {#}                                                                                             0.5-14mm {24}
¨      D.P. Threads (36)                                                                                                                      4-56 mm
¨      Leadscrew Pitch, Diameter                                                                                                      4 tpi, 1-1/2”
ü  Carriage
¨      Cross Slide Travel                                                                                                                      11.8”
¨      Compound Rest Travel                                                                                                             6.2”
¨      Compound Width                                                                                                                      6”
ü  Bed
¨      Bed Width                                                                                                                                   15-3/4”
¨      Bed Length                                                                                                                           130.5”
ü  Tailstock
¨      Quill Travel (graduated)                                                                                                           6-1/2”
¨      Quill Diameter                                                                                                                           3”
¨      Quill Taper                                                                                                                                 MT#5
ü  General
¨      Spindle Motor (220V or 440V, 60, 3)                                                                                        15 hp
¨      Net Weight (approx.)                                                                                                                6,930 LBS
¨      Standard Color                                                                                                                           Gray
¨      Dimensions:                                                                                                                   157”x 41” x 50”
¨      Weight                                                                                                                                   7280 Lbs.
§  Specifications may be changed or improved without notice.
