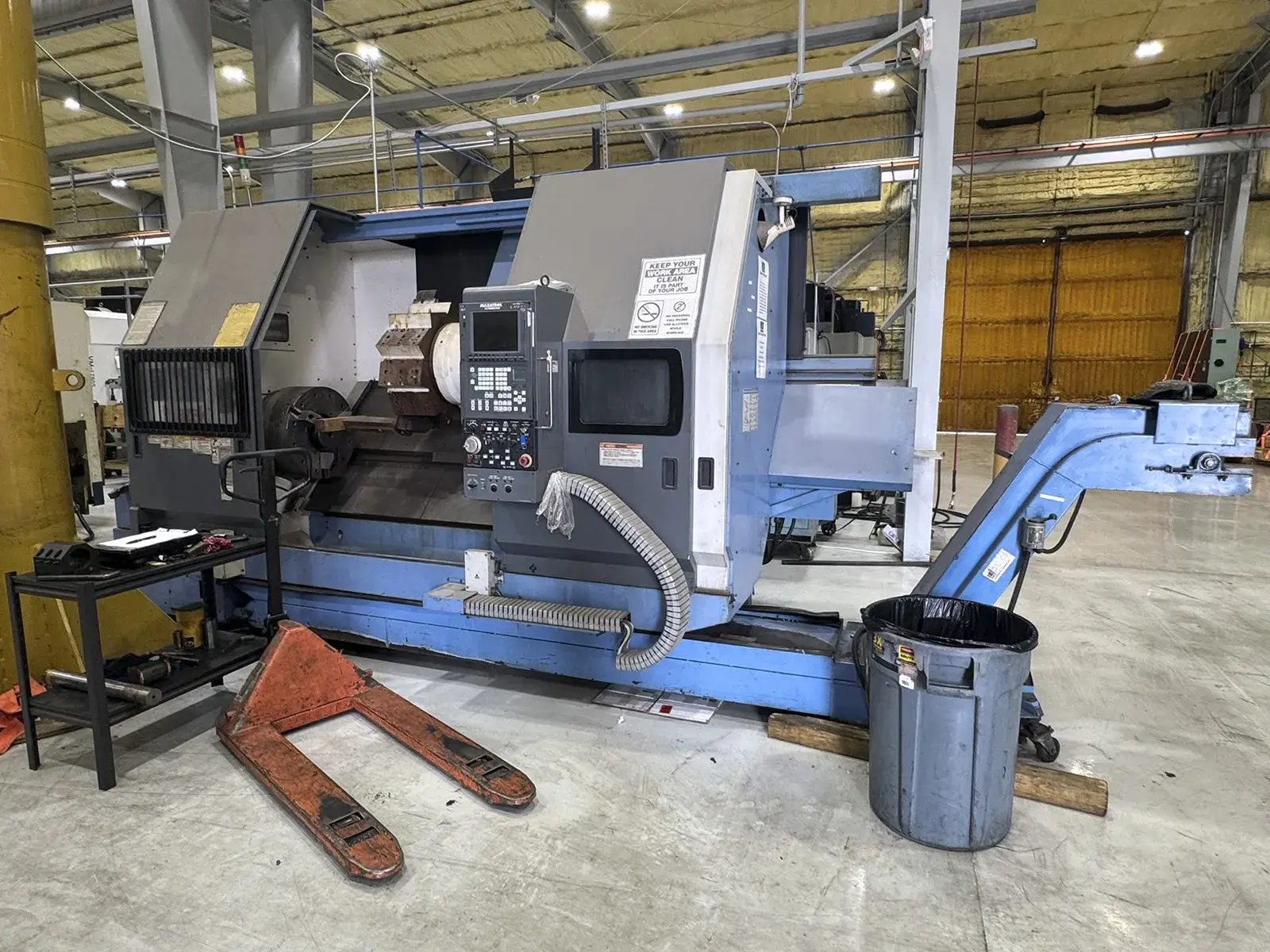

Used CNC Lathe featuring Mazatrol 640T PC Fusion CNC, 31.7" max swing, 28" max cut diameter, and 2-750 RPM spindle speed. Equipped with 15" chuck, chip conveyor, coolant, and presetter tailstock.
| Swing | 31.7" | 805.18 mm |
| Machining Length | 80" | 2,032 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 750 RPM | 750 RPM |
| Turning Dia | 28" | 711.2 mm |
| Tailstock | Yes | Yes |
| Control | CNC (FUSION 640T) | CNC (FUSION 640T) |
| Weight | 23,150 LBS | 23,150 LBS |
Maximum Swing 31.7"
Swing Over Carriage 22"
Maximum Cutting Diameter 28"
Center Distance 80"
Spindle Speed 2-750 RPM
Spindle Bore 4"
Bar Capacity 3.75"
Turret Positions 10
Spindle Motor 50 HP
Dimensions 20ft 9" X 8ft
Weight 23,150 LBS
Mazatrol 640T PC Fusion CNC
Chuck Size: 15"
Chip Conveyor
Coolant
Presetter TailstocK
