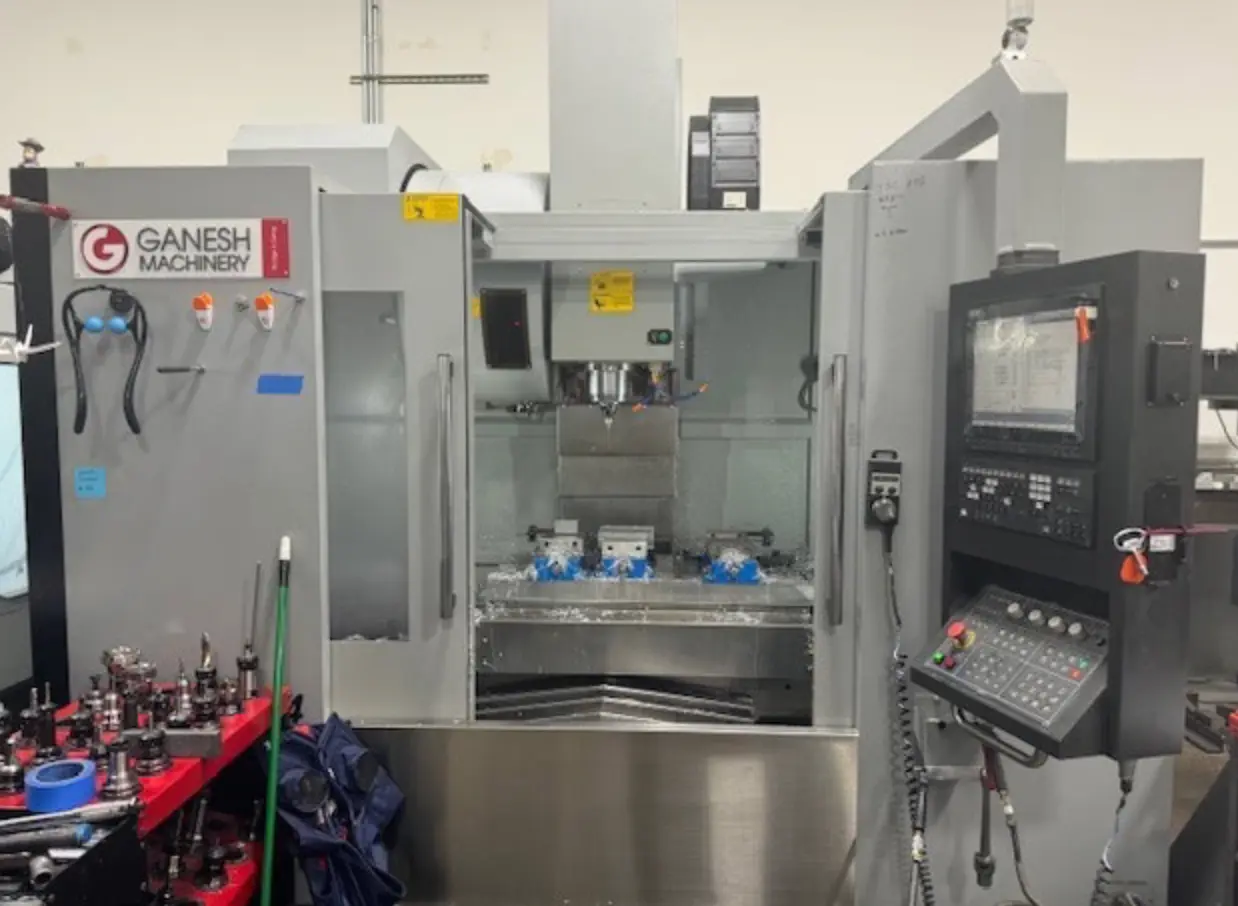

Used Vertical Machining Center. Features a 40" x 24" x 22" travel range, 12,000 RPM spindle, and 30 HP motor. Equipped with Mitsubishi M800 Control, through spindle coolant, Renishaw probing, and more.
| X | 40" | 1,016 mm |
| Y | 24" | 609.6 mm |
| Z | 22" | 558.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 19.68" | 499.87 mm |
| Table-L | 43.3" | 1,099.8 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mitsubishi) | CNC (Mitsubishi) |
Table Size: 43.29″ x 19.67″
X Axis: 40″
Y Axis: 24″
Z Axis: 22″
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40
Feed Rates: 393 IPM
ATC: 30
Mitsubishi M800 Control
Through Spindle Coolant
4th Axis Wiring
Dual 5C Collet Rotary
Chip Conveyor
Renishaw Probing System
Tool Setter
Chip Flush
Air Blast
