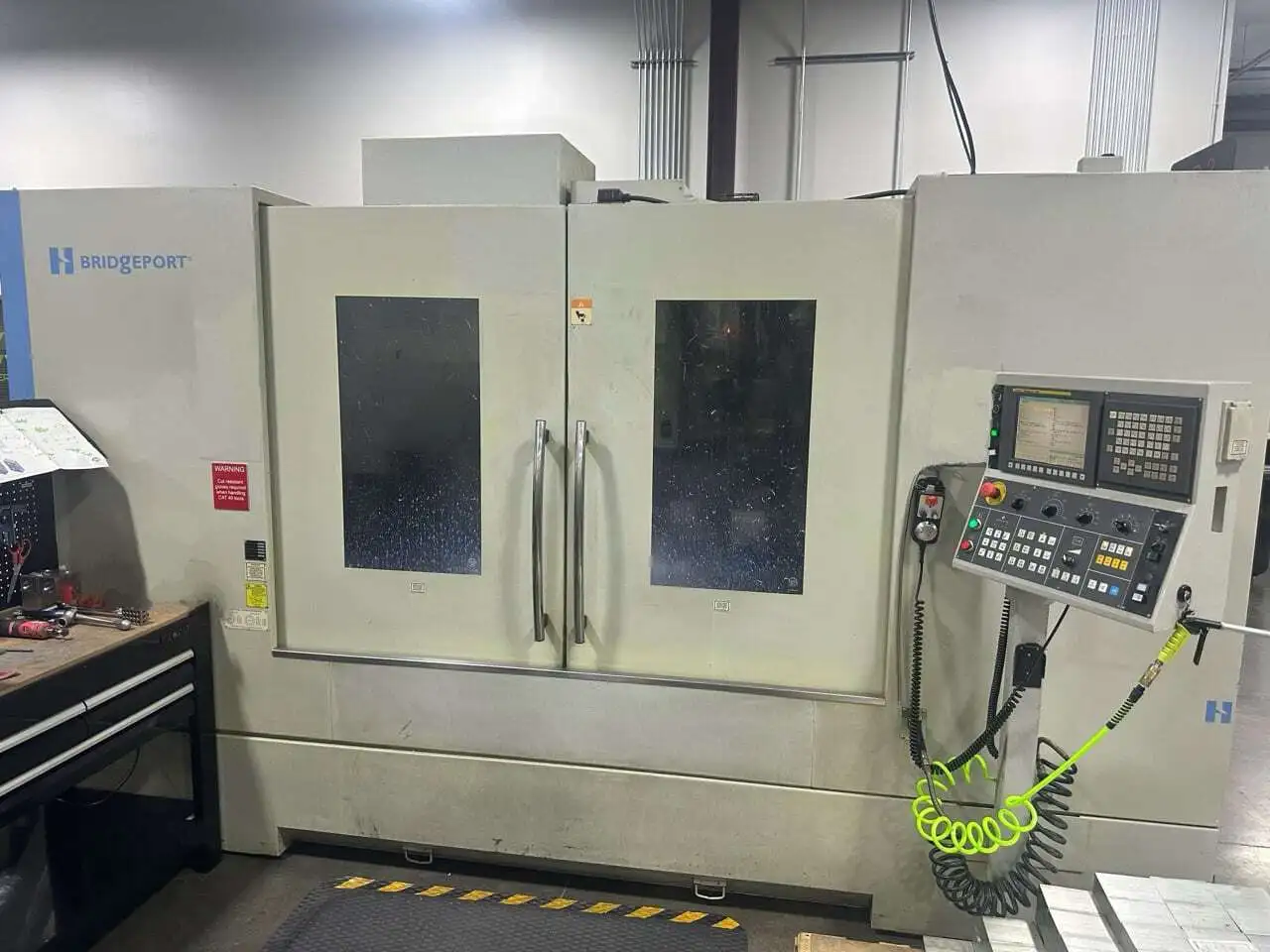

Used Vertical Machining Center. Equipped with Fanuc OiMD control, it offers excellent X, Y, and Z travel dimensions, a powerful 25 HP spindle motor, and a 30-tool magazine.
| X | 62" | 1,574.8 mm |
| Y | 27.5" | 698.5 mm |
| Z | 25" | 635 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 27.5" | 698.5 mm |
| Table-L | 63.9" | 1,623.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
X-Axis Travel: 62.9″
Y-Axis Travel: 27.5″
Z-Axis Travel: 25″
Table Size: 27.5″ x 67″
Table Load Capacity: 3,300 lbs
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Spindle Motor Power: 25 HP
Tool Magazine Capacity: 30 tools
Feed Rates (All Axes): 0.1 – 472 IPM
Rapid Traverse Rate: 1,147 IPM
Max/Min Clearance from Tabletop to Spindle Nose: 31.1″ / 6.1″
Machine Dimensions (L x W x H): 153.5″ x 107.2″ x 113.3″
Machine Weight: 21,560 lbs
Power Requirement: 380-440V, 3-phase, 60 Hz
Control Fanuc OiMD
