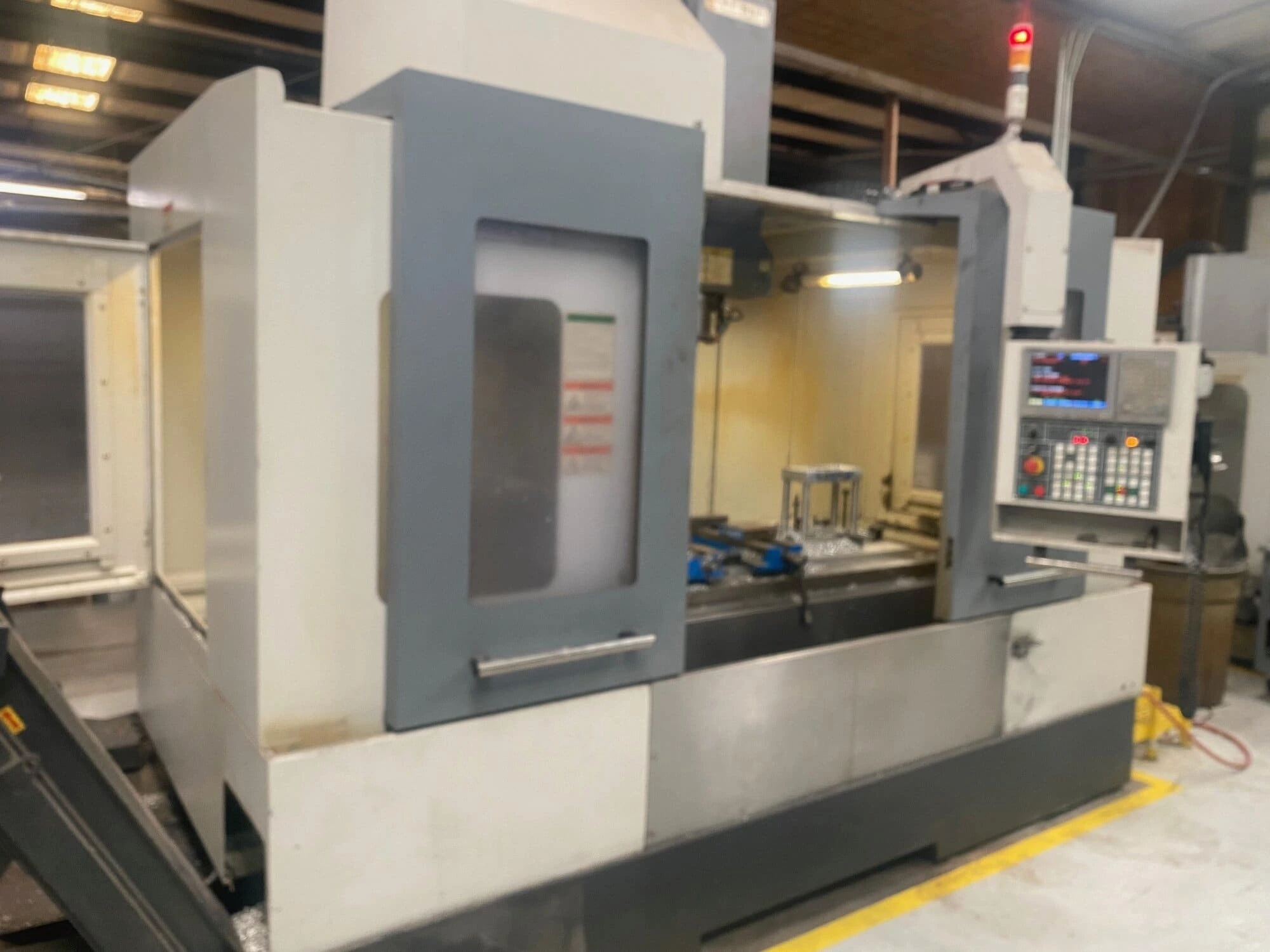

Used Vertical Machining Center, CAT50 spindle, 53.1" X-axis, 8,000 rpm, Akira Mi-845 control, coolant, and chip conveyor. Table 59"×23.6", 24 tool stations. Approx. dimensions: 150" W×98" D×124" H, weight: 17,500 lbs.
| X | 53.1" | 1,348.7 mm |
| Y | 25" | 635 mm |
| Z | 26" | 660.4 mm |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 50 | CAT 50 |
| # Axis | 3 | 3 |
| Dimensions | 150″ W × 98″ D × 124″ H | 150″ W × 98″ D × 124″ H |
| Weight | 17,500 lbs | 17,500 lbs |
X-Axis Travel: 53.1″
Y-Axis Travel: 25″
Z-Axis Travel: 26″
Spindle Nose to Table Height: 4″–30″
Spindle Center to Column: 25″ (640 mm)
Table Size: 59″ × 23.6″
Spindle Speed: 8,000 rpm
Spindle Taper: CAT50
Rapid Traverse: 1,417 IPM (X/Y), 1,181 IPM (Z)
Tool Stations: 24
Approx. Dimensions: 150″ W × 98″ D × 124″ H
Approx. Weight: 17,500 lbs
Control System: Akira Mi‑845
Coolant
Chip Conveyor
