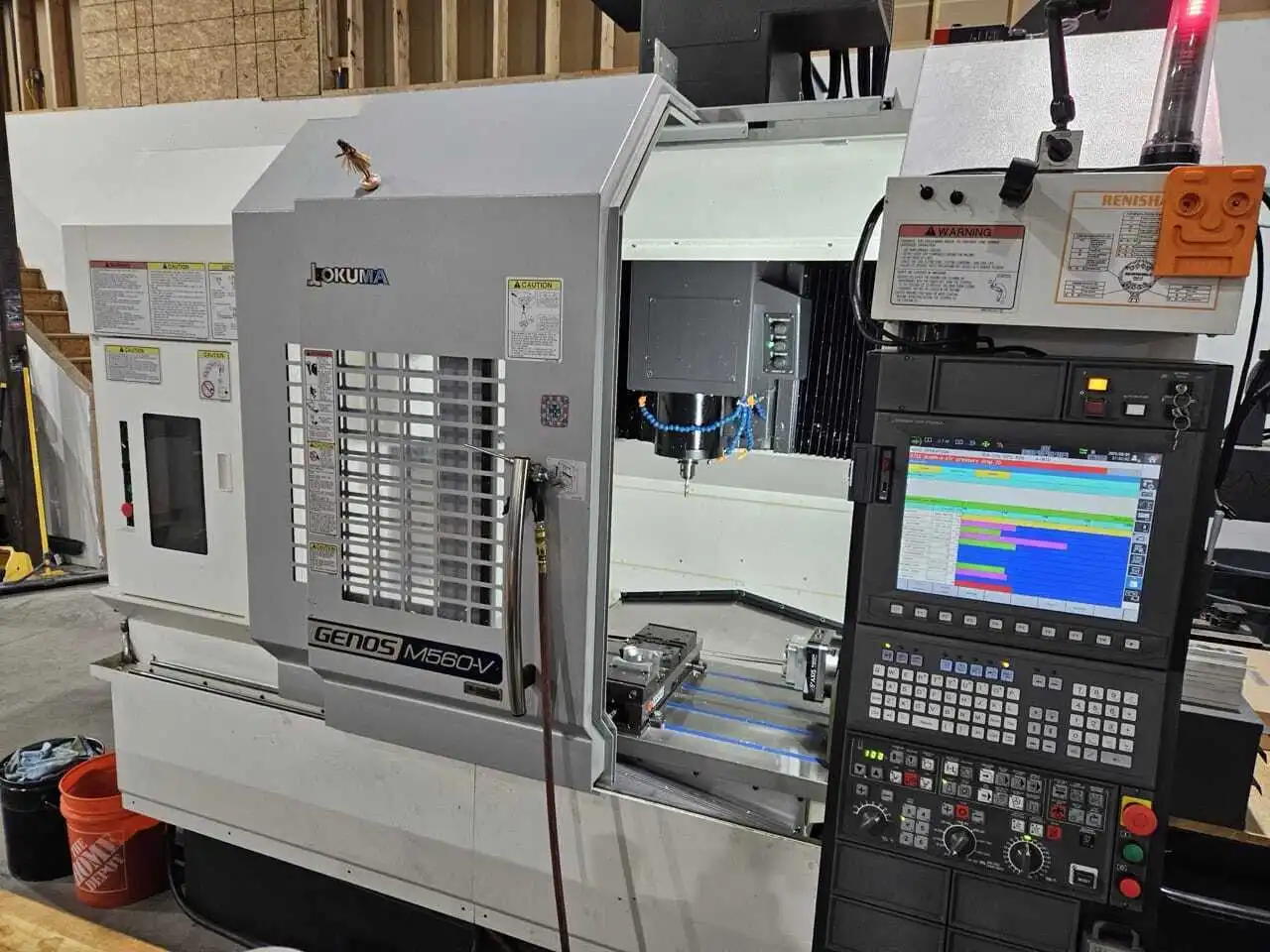

Used Vertical Machining Center. Features 41.34″ X, 22.05″ Y, 18.11″ Z axes, 15,000 rpm spindle, and 32-tool capacity. Equipped with Okuma OSP-300A, 4th Axis, and more.
| X | 1,050 mm | 41.339" |
| Y | 560 mm | 22.047" |
| Z | 460 mm | 18.11" |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 560 mm | 22.047" |
| Table-L | 1,300 mm | 51.181" |
| # Axis | 4 | 4 |
| Control | CNC (OKUMA) | CNC (OKUMA) |
| Dimensions | 122″ x 99″ x 108″ | 122″ x 99″ x 108″ |
| Weight | 17,000 lbs | 17,000 lbs |
X-axis: 41.34″
Y-axis: 22.05″
Z-axis: 18.11″
Rapid Traverse:
X/Y-axes: 1,575 IPM
Z-axis: 1,260 IPM
Tooling Capacity: 32
Table Size: 51.18″ x 22.05″
Table Load Capacity: approx 1,980lbs
Spindle:
Max Speed: 15,000 rpm
Motor Power: 30HP
Taper: CAT-40 Big Plus
Dimensions: approx 122″ x 99″ x 108″
Weight: approx 17,000lbs
Electrical Requirements: 220/480V; 3 Phase; 60Hz
Okuma OSP-300A
Low hours
Coolant Through Spindle
Probes
4th Axis
Chip Conveyor
