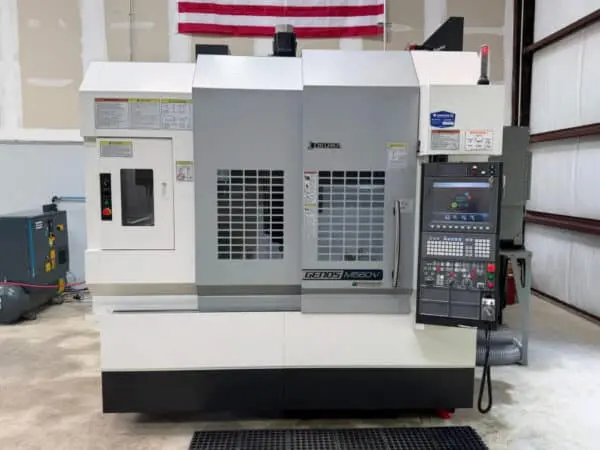

Okuma Genos M560V with Rotary Table – 2023

2023 OKUMA GENOS M560V Vertical Machining Center
X Axis Travel: 41.34″

Y Axis Travel: 22.05″

Z Axis Travel: 18.11″

Rapid Rate X Axis: 1,575 IPM

Rapid Rate Y Axis: 1,575 IPM

Rapid Rate Z Axis: 1,262 IPM

Max Table Load: 1,980 LBS

Spindle Motor: 30 HP

Spindle Speed: 15,000 RPM

Spindle Taper: CatBIGPlus#40

Tool Changer: 32 ATC

Max. Workpiece Weight 2,000 lbs

Spindle Nose To Table 7.8″ x 33.8″

Max. Tool Length 11.8″

Max. Tool Diameter 4.9″

Dimensions: 122″ x 99″ x 108″

Table Size: 51.18″ x 22.05″

Weight: 14,330 LBS
OPTIONS

OSP

Probe

Chip Conveyor

4th Axis Rotary Table

Tsudakoma RWA-250R

Mist Collector

Never Used

High Column Configuration
