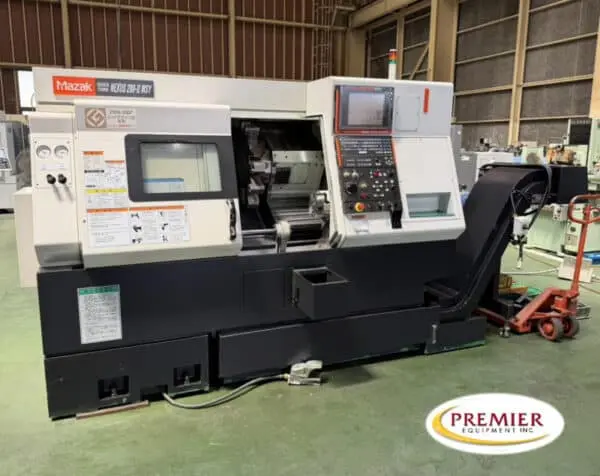

Mazak Nexus 200MSY-II – 2007

Mazak QT Nexus 200MSY Multi-Axis CNC Lathe with Milling, Sub Spindle and Y-Axis / QTN200MSY / QTN-200MSY

Maximum Swing…………………………26.58″
  Standard Machining Diameter…………….10.87″
  Maximum Machining Diameter……………..14.75″
  Spindle Motor…………………………35 HP
  Standard Bar Capacity………………….2″
  Spindle Speed…………………………5,000 RPM
  Spindle Nose………………………….A2-6
  Spindle Bore………………………….3″
  Second Spindle Chuck Size………………6″
  Second Spindle Nose……………………A2-6
  Second Spindle Maximum RPM……………..6,000
  Second Spindle Power…………………..10 HP
  Number of Tools……………………….12
  Tool Shank Size………………………1.0″ x 1.0″ Square
  Mill Spindle Power…………………….7.5 HP (10 min)
  Mill Spindle Torque…………………..26 FT / LBS (10 min)
  Mill Spindle Maximum RPM………………4500 RPM
  Turret Index Time (1 Position / Full Rotation)  0.2 / 0.6 SEC
  X-Axis Travel…………………………9.055″
  Z-Axis Travel…………………………22.63″
  Y-Axis Travel…………………………+/- 2″

Matrix Nexus
Chip Conveyor
