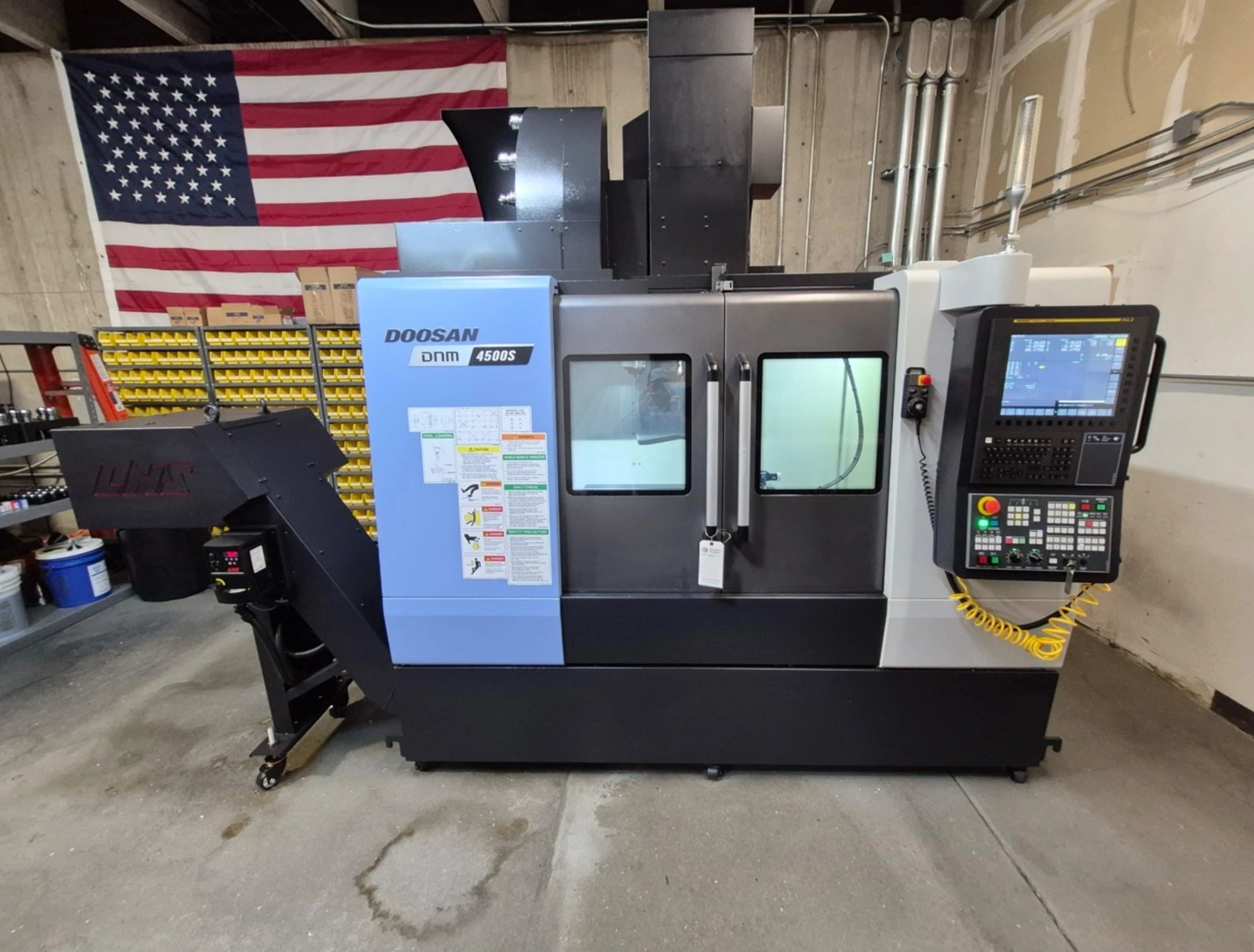

Used Vertical machining center. Features include 31.5" X, 17.7" Y, and 20.1" Z travel, 15000 rpm spindle speed, and 40-tool capacity. Equipped with FANUC CNC, touch screen.
| X | 31.5" | 800.1 mm |
| Y | 17.7" | 449.58 mm |
| Z | 20.1" | 510.54 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 40 | CAT 40 |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 103.7″ x 49.3″ x 117.5″ | 103.7″ x 49.3″ x 117.5″ |
| Weight | 11,023 lbs | 11,023 lbs |
Travel Distance X-axis: 31.5 in
Travel Distance Y-axis: 17.7 in
Travel Distance Z-axis: 20.1 in
Table Size: 39.4 x 17.7 in
Max Load: 1320 lbs
Spindle to Table Distance: 5.9 – 26 in
Spindle Speed: 15000 rpm
Power: 25 Hp
Torque: 87 ft-lbs
Tool Changer Capacity 40
Max Diameter 3.2/4.9 in
Max Length: 11.8 in
Tool Shank: 40 CAT
Approx Dims: 103.7″ x 49.3″ x 117.5″
Approx Weight: 11023 lbs
FANUC 0I-PLUS CNC CONTROL
TOUCH SCREEN INTERFACE
RENISHAW OMP60 OPTICAL PROBE
OTS TOOL SETTER
THROUGH SPINDLE COOLANT (TSC)
SPINDLE CHILLER UNIT
LNS TURBO HINGE-BELT CHIP CONVEYOR
