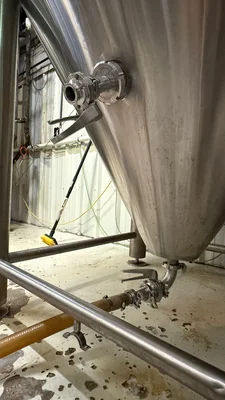

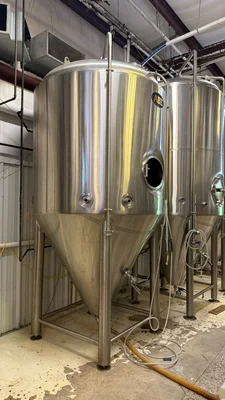

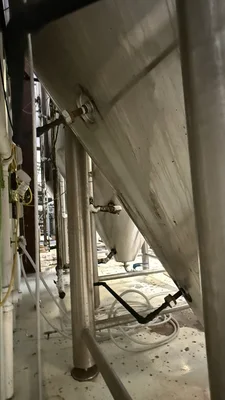

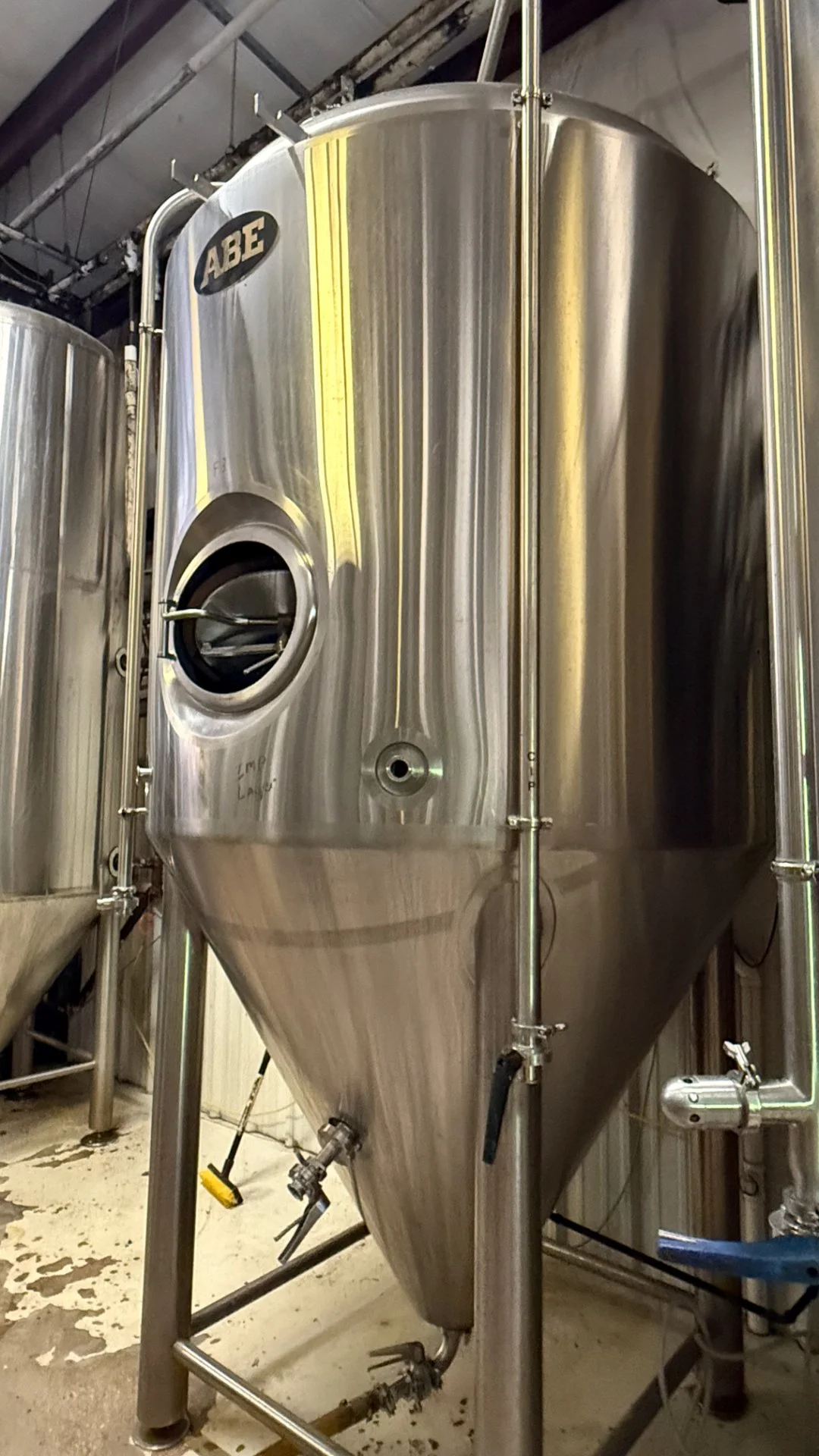

ABE 30 BBL (930 Gallon) Unitank Fermenter – Glycol Jacketed & Insulated
Overview
Description
ABE 30 BBL (930 Gallon) Unitank Fermenter – Good Condition
This ABE 30 BBL Unitank Fermenter is available due to a recent brewery closure. It is in good working condition and features a glycol jacket for efficient temperature control, making it ideal for craft breweries looking to enhance their fermentation process.
Key Features:
• Model: ABE 30 BBL Unitank Fermenter
• Capacity: 30 BBL (930 gallons)
• Glycol jacketed and insulated for optimal temperature management
• Professionally maintained and in good working condition
• Ideal for: craft breweries, beverage producers, cideries, seltzeries, etc.
• Built with durable, industry-grade components
Note: A reasonable decommissioning fee will be added to cover our professional onsite removal and loading services.
FREIGHT IS AVAILABLE! Message now for a quote.
30 BBL ABE Unitank Fermenter
Approx. 5' x 14' (Diameter x Height)
• Manufacturer: ABE Equipment
• Vessel Type: Unitank Fermenter
• Capacity: 30 BBL
• Dimensions: 5' Diameter x 14' Height
• Orientation: Vertical With Conical Bottom
• Construction: 304 Stainless Steel
• Jacketing: Glycol Jacketed (Multi-Zone Cooling)
• Insulation: Fully Insulated

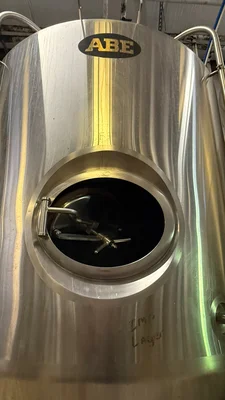

• Manway: Side Manway Door With Clamp Closure

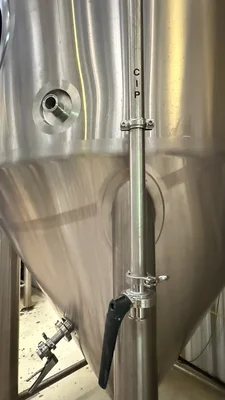

• CIP: Spray Ball With Hard-Piped CIP Arm
• Racking Arm: Internal Rotating Racking Arm
• Ports And Fittings:
Sample Valve (Zwickel)
CIP Port
Thermowell
Carb Stone Port (Installed Or Ready)
PRV / Vacuum Relief

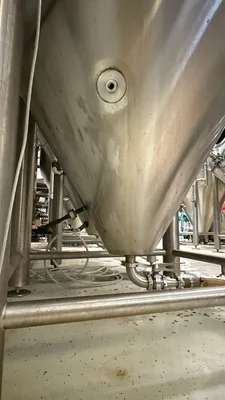

• Bottom Cone: 60° Cone With Dump Port And Butterfly Valve
• Secondary Racking / Transfer Port
• Piping And Connections: Sanitary Tri-Clamp Fittings Throughout
• Hard Piped CIP And Process Lines Present
• Support: Four Leg Design With Cross Bracing And Adjustable Feet
• Pressure Rating: Approx. 15 PSI (Typical For ABE – Confirm If Required)
• Utilities Requirements:
Glycol Supply (28–34°F Loop Typical)
CO₂ Supply For Carbonation And Head Pressure
Electrical (Low Voltage For Sensors / Solenoids If Equipped)
Compressed Air (If Pneumatic Valves Installed)
Floor Drain Access For CIP And Blowoff
• Condition: Good, Operational With Cosmetic Wear Consistent With Use
• Included: All Mounted Valves, Fittings, And Visible Piping Assemblies
Specifications
Category: Fermenters
Subtype: 30 BBL
Status: available
Condition: used
Quantity: 1
SKU: MAR963
Low Price: 3000.0
High Price: 5500.0
Notes: 30 BBL ABE Unitank Fermenter
Approx. 5' x 14' (Diameter x Height)
• Manufacturer: ABE Equipment
• Vessel Type: Unitank Fermenter
• Capacity: 30 BBL
• Dimensions: 5' Diameter x 14' Height
• Orientation: Vertical With Conical Bottom
• Construction: 304 Stainless Steel
• Jacketing: Glycol Jacketed (Multi-Zone Cooling)
• Insulation: Fully Insulated
• Manway: Side Manway Door With Clamp Closure
• CIP: Spray Ball With Hard-Piped CIP Arm
• Racking Arm: Internal Rotating Racking Arm
• Ports And Fittings:
Sample Valve (Zwickel)
CIP Port
Thermowell
Carb Stone Port (Installed Or Ready)
PRV / Vacuum Relief
• Bottom Cone: 60° Cone With Dump Port And Butterfly Valve
• Secondary Racking / Transfer Port
• Piping And Connections: Sanitary Tri-Clamp Fittings Throughout
• Hard Piped CIP And Process Lines Present
• Support: Four Leg Design With Cross Bracing And Adjustable Feet
• Pressure Rating: Approx. 15 PSI (Typical For ABE – Confirm If Required)
• Utilities Requirements:
Glycol Supply (28–34°F Loop Typical)
CO₂ Supply For Carbonation And Head Pressure
Electrical (Low Voltage For Sensors / Solenoids If Equipped)
Compressed Air (If Pneumatic Valves Installed)
Floor Drain Access For CIP And Blowoff
• Condition: Good, Operational With Cosmetic Wear Consistent With Use
• Included: All Mounted Valves, Fittings, And Visible Piping Assemblies
