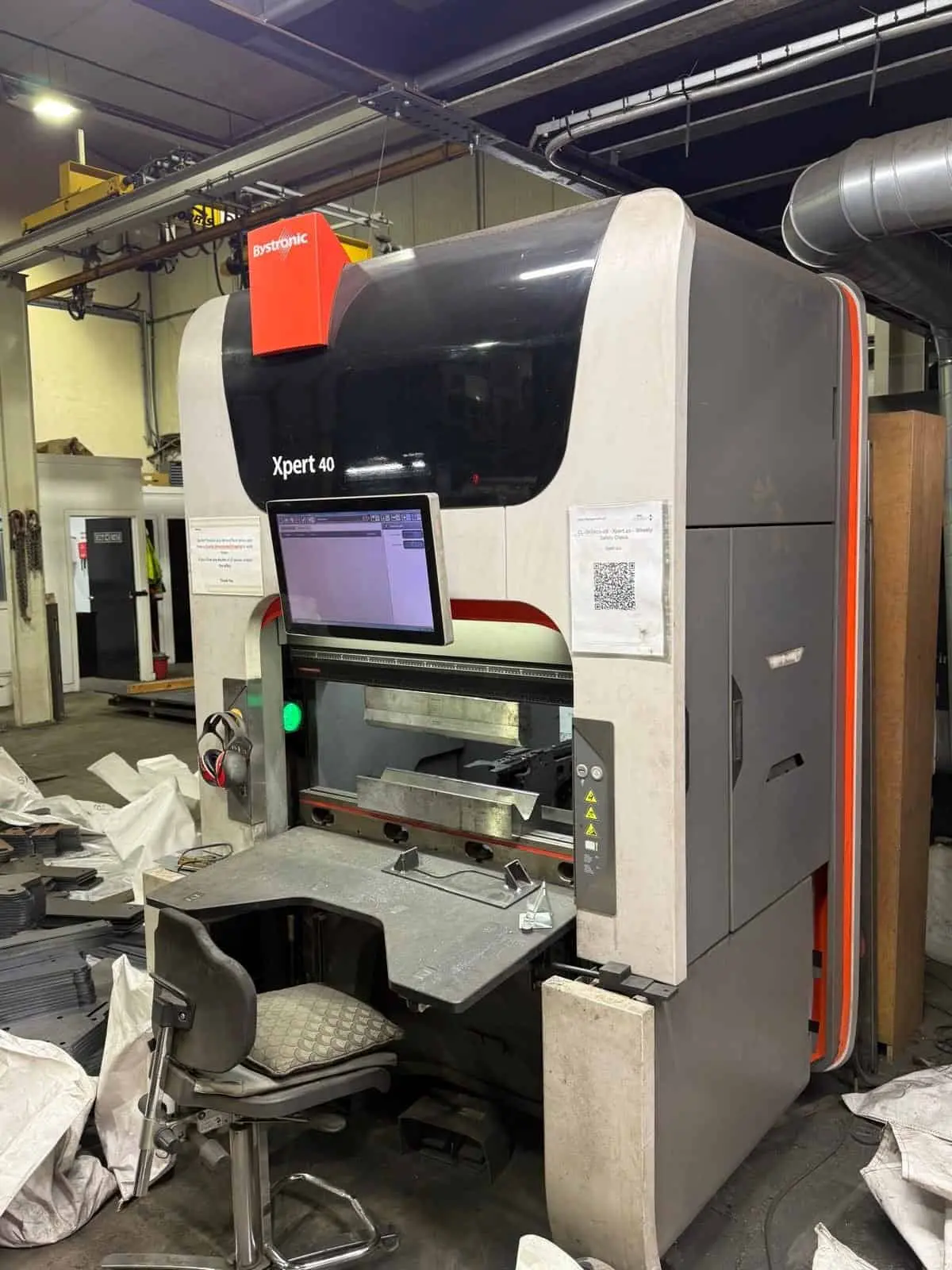

USED BYSTRONIC XPERT 40/1030

Make: Bystronic
Model: Xpert 40/1030
Tonnage 400 kn / 40ton
Bending length 1030 mm / 1metre
Standard stroke [S] 200 mm
Open height [D] 515mm
Distance between side frames 1060mm
Table Width 60mm
Max. back gauge range X-axis 500mm
X-axis travel 300 mm
X-axis speed 1500 mm/s
R-axis travel 100 mm
R-axis speed 500 mm/s
Z-axis travel 955 mm
Z-axis speed 2000 mm/s
Rotsxtf A Ijxmfy Nsch
Y-approach speed (up to) 300 mm/s
Y-working speed (up to) 25 mm/s
Accuracy Y-axis 0.004 mm
Oil capacity 100 l
Electric supply 7.5 kw
Weight 4t
Length, approx. [L] 1520 mm
Width, approx. [W] 1584 mm
Height, approx. [H] 2449 mm
1.1
Xpert 40/1030
1.2
ByVision Bending control with 22 Inch Full HD display and touch technology
1.3
Dynamic drive system (DDS) with Energy Saver
1.4
Automatic tool protection
1.5
Ergo foot switch
1.6
Rear protection sliding door electrically controlled
1.7
User manual (on CD)
1.8
Ambient air temperature 7°C up to 35°C
1.9
Voltage: 400/480 V, 50/60 cycles, 3 Ph (other parameters available on request)
