USED 2019 Doosan TW2600M-GL
Overview
Description

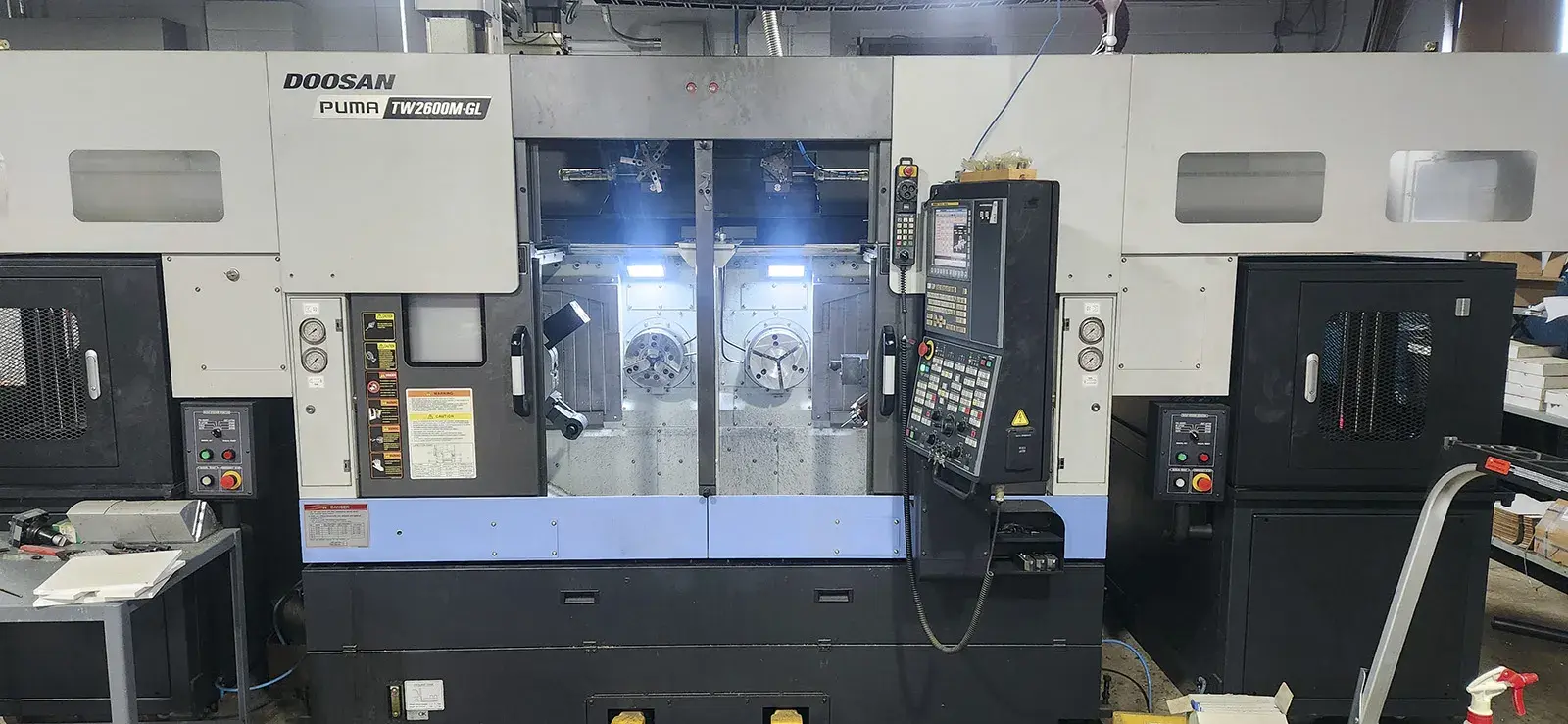

The Doosan Puma TW2600M-GL Multi Spindle CNC Lathe (2019) with Fanuc control is a high-production turning center engineered for unattended, large-volume manufacturing. Designed for automotive and industrial applications, it efficiently machines clutch bosses, ring gears, transmission shafts, and bearing hubs with exceptional precision. Its integrated turning, cross-milling, and drilling capabilities make it ideal for repetitive production of complex metal components.
Specifications
Chuck Size: 10 inch
Max. Turning Diameter: 14 inch
Max. Turning Length: 7 inch
X-Axis Rapid Traverse: 945 ipm
Z-Axis Rapid Traverse: 945 ipm
X-Axis Travel Distance: 7 inch
Z-Axis Travel Distance: 7 inch
Max. Spindle Speed: 3500 rpm
Max Spindle Power: 25hp
Max. Spindle Torque: 148ft-lb
No. of Tool Stations: 10 ea
Rotary Tool R/Min: 5000 rpm
Equipped With

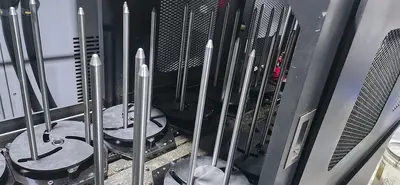

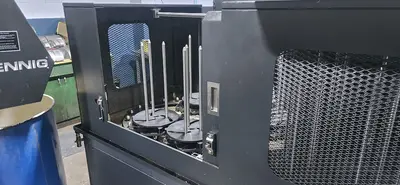

Gantry
Live tooling Included
4 - 1in OD TURN
6 - 1.5in ID TURN
2 - 125mm Center Height Face Live Tool
2 - Radial Live Tool
1 - 36mm Z-Offset Radial Live Tool
Gantry Jaw Fixture for cutting Gantry Jaws
