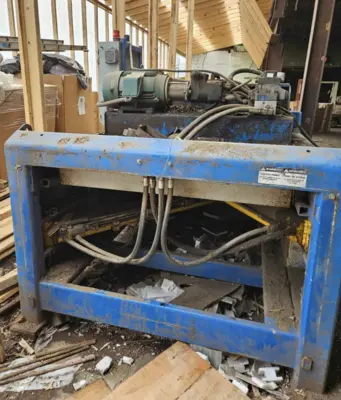

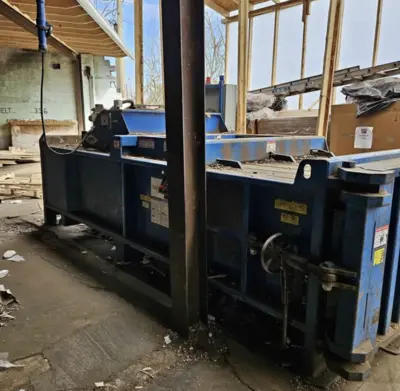

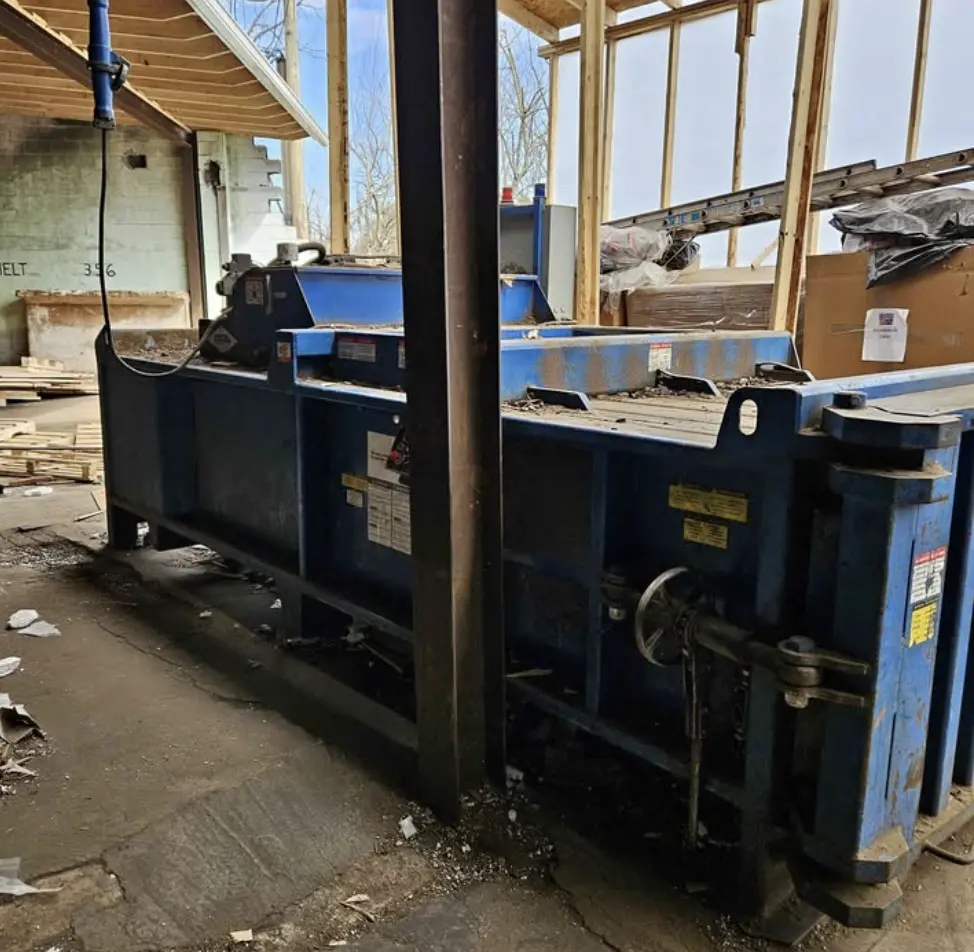

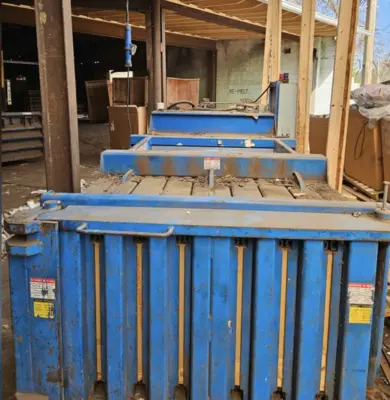

Excel EX62 Horizontal Baler
The Excel EX62 is a heavy-duty horizontal baler designed for processing OCC, paper, plastics, PET, HDPE, aluminum cans, and other recyclable materials. Built with a full penetration ram and closed-end bale chamber, this baler delivers consistent bale densities and reliable production for recycling and waste processing operations.
Specifications:
* Manufacturer: Excel Manufacturing
* Model: EX62
* Bale Size: 60” L x 48” W x 30” H
* Chamber Size: 47” L x 60” W x 30” H
* Feed Opening: 54” W x 35” L
* Motor: 20 HP
* Electrical: 208/230/460V, 3 Phase
* Hydraulic Pressure: 4,000 PSI
* Total Ram Force: 159,400 lbs (72 tons)
* Cylinders: Twin 6” bore cylinders
* Cycle Time: 29 second full stroke
* Oil Reservoir Capacity: 105 gallons
* Approximate Weight: 18,960 lbs
Approximate Bale Weights:
* OCC: Up to 1,200 lbs
* Office Paper: Up to 1,600 lbs
* Newspaper: Up to 1,550 lbs
* Magazines: Up to 2,100 lbs
* PET: Up to 1,000 lbs
* HDPE: Up to 1,100 lbs
* Aluminum Cans: Up to 600 lbs
Features:
* Full penetration ram design
* Closed-door bale chamber
* Hydraulic door system
* PLC controls
* Heavy-duty construction
* Multi-material processing capability
* Removable serrated shear blade

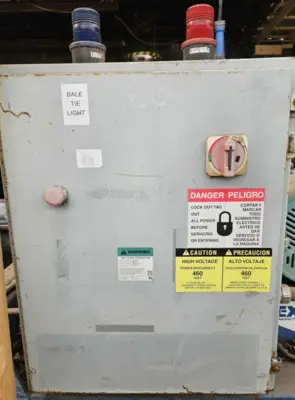

* NEMA 12 electrical enclosure
Ideal for recycling facilities, distribution centers, waste processors, and material recovery operations looking for dependable bale production and efficient material handling.
