USED PRO-FILL INC SENSOR BRACKET A
Overview
Description
What is for?This bracket is compatible with the operation of labeling machines.Material = Aluminum Sensor Bracket A #40501
A = 50 mm
a = 42 mm
B = 35 mm
b = 28 mm
C = 63 mm
D = 8 mm
E = 6.5 mm
F = M8 – 1.25

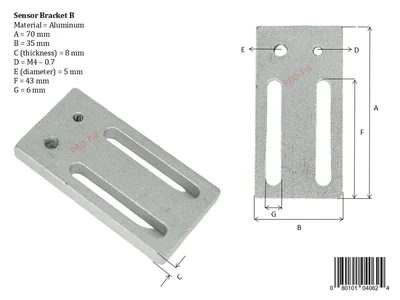

Sensor Bracket B (70mm x 35mm) #40624
A = 70 mm
B = 35 mm
C (thickness) = 8 mm
D = M4 – 0.7
E (diameter) = 5 mm
F = 43 mm
G = 6 mm
Sensor Bracket C (60mm x 53mm) #40525
A = 60 mm
B = 53 mm
C = 10 mm
D (diameter) = 7 mm
Sensor Bracket D (100mm x 15mm) #40594
A = 100 mm
a = 76 mm
B = 15 mm
b = 7 mm
C = 15 mm
D (diameter) = 6 mm
E = M5 – 0.8
Sensor Bracket E (Round - 50.5mm x 12mm) #40563
A (length) = 50.5 mm
B (larger diameter) = 12 mm
C (smaller diameter) = 6 mm
D = M5 – 0.8
Sensor Bracket F (50mm x 38mm) #40679
A = 50 mm
B = 38 mm
C = 8 mm
D = M5 – 0.8
E = M4 – 0.7
Specifications
A = 50 mm
a = 42 mm
B = 35 mm
b = 28 mm
C = 63 mm
D = 8 mm
E = 6.5 mm
F = M8 – 1.25
A = 70 mm
B = 35 mm
C (thickness) = 8 mm
D = M4 – 0.7
E (diameter) = 5 mm
F = 43 mm
G = 6 mm
A = 60 mm
B = 53 mm
C = 10 mm
D (diameter) = 7 mm
A = 100 mm
a = 76 mm
B = 15 mm
b = 7 mm
C = 15 mm
D (diameter) = 6 mm
E = M5 – 0.8
A (length) = 50.5 mm
B (larger diameter) = 12 mm
C (smaller diameter) = 6 mm
D = M5 – 0.8
A = 50 mm
B = 38 mm
C = 8 mm
D = M5 – 0.8
E = M4 – 0.7
