USED PRO-FILL INC ROLLER E (M6 - 1.0)
Overview
Description
What is for?High quality products. Get better performance for your Labeling Machines.Material = Plastic/Metal/Steel Roller A (186mm x 48mm) #49207
Bearing #62012
A (diameter) = 48 mm
B = 180 mm
C = 186 mm
D = M6 – 1.0
Roller B (210mm x 48mm) #49238
Bearing #62012
A (diameter) = 48 mm
B = 180 mm
C = 210 mm
D = M6 – 1.0
E (diameter)= 12 mm
Roller C (180mm x 31mm) #49269
A (diameter) = 31 mm
B (diameter) = 36 mm
C (diameter) = 50 mm
D = 180 mm

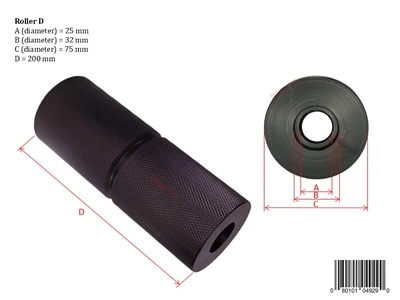

Roller D (200mm x 75mm) #49290
A (diameter) = 25 mm
B (diameter) = 32 mm
C (diameter) = 75 mm
D = 200 mm
Roller E (M6 - 1.0) #49313
A (diameter) = 25 mm
B (diameter) = 75 mm
C = 200 mm
D = M6 – 1.0
Roller F (302mm x 75mm) #49344
A (diameter) = 15 mm
B (diameter) = 25 mm
C (diameter) = 75 mm
D = 3 mm
E = 5 mm
F = 14 mm
G = 122 mm
H = 10 mm
I = 122 mm
J = 14 mm
K = 302 mm
L = M6 – 1.0
Roller G (280mm x 75mm) #49351
Bearing#6002 Z HRB
A (diameter) = 15 mm
B (diameter) = 30 mm
C (diameter) = 75 mm
D = M6 – 1.0
E = 15 mm
F = 15 mm
G = 10 mm
H = 122 mm
I = 122 mm
J = 280 mm

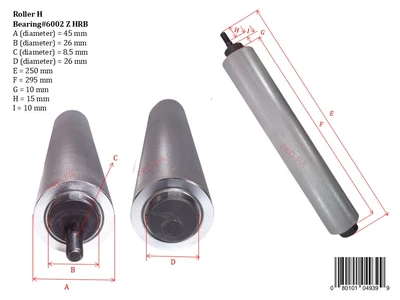

Roller H (250mm x 45mm) #49399
Bearing#6002 Z HRB
A (diameter) = 45 mm
B (diameter) = 26 mm
C (diameter) = 8.5 mm
D (diameter) = 26 mm
E = 250 mm
F = 295 mm
G = 10 mm
H = 15 mm
I = 10 mm
Specifications
Bearing #62012
A (diameter) = 48 mm
B = 180 mm
C = 186 mm
D = M6 – 1.0
Bearing #62012
A (diameter) = 48 mm
B = 180 mm
C = 210 mm
D = M6 – 1.0
E (diameter)= 12 mm
A (diameter) = 31 mm
B (diameter) = 36 mm
C (diameter) = 50 mm
D = 180 mm
A (diameter) = 25 mm
B (diameter) = 32 mm
C (diameter) = 75 mm
D = 200 mm
A (diameter) = 25 mm
B (diameter) = 75 mm
C = 200 mm
D = M6 – 1.0
A (diameter) = 15 mm
B (diameter) = 25 mm
C (diameter) = 75 mm
D = 3 mm
E = 5 mm
F = 14 mm
G = 122 mm
H = 10 mm
I = 122 mm
J = 14 mm
K = 302 mm
L = M6 – 1.0
Bearing#6002 Z HRB
A (diameter) = 15 mm
B (diameter) = 30 mm
C (diameter) = 75 mm
D = M6 – 1.0
E = 15 mm
F = 15 mm
G = 10 mm
H = 122 mm
I = 122 mm
J = 280 mm
Bearing#6002 Z HRB
A (diameter) = 45 mm
B (diameter) = 26 mm
C (diameter) = 8.5 mm
D (diameter) = 26 mm
E = 250 mm
F = 295 mm
G = 10 mm
H = 15 mm
I = 10 mm
