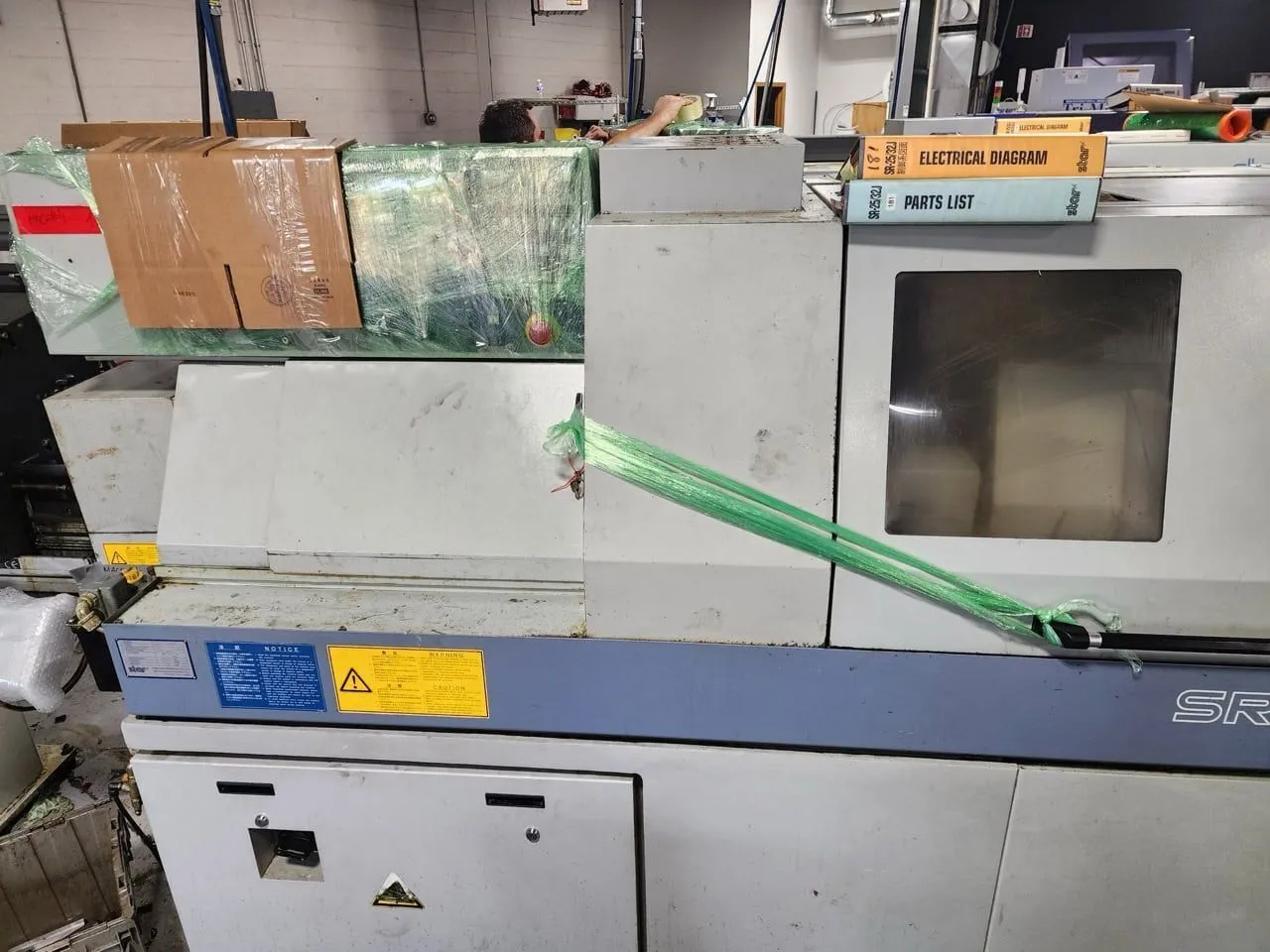

STAR SR-32J Swiss CNC Lathe, New in 2010.
32mm Bar Capacity.
8-Axis Sliding Headstock.
Fanuc Control.
| Capacity | 32 mm | 1.2598" |
| Spindle Hole Diameter | 32 mm | 1.2598" |
| Power | 10 hp | 7.5 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 7 | 7 |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | Full C | Full C |
| Live Back Working Tools | Yes | Yes |
| Control | CNC (Fanuc 18i-TB) | CNC (Fanuc 18i-TB) |
| Dimensions | 108" x 51" x 69" | 108" x 51" x 69" |
| Weight | 6500 lbs | 6500 lbs |
General Specifications:
Control Fanuc CNC Control 18i-TB
Bar Capacity 1.26 in (32 mm)
Max Turning Length 12.6 in (320 mm)
Main Spindle Speed Up to 8,000 RPM
Sub Spindle Speed Up to 8,000 RPM
Number of Axes 8 (X1, Y1, Z1, C1 + X2, Z2, C2 + optional Y2)
Main Spindle Motor 5.5 / 7.5 kW (7.5 / 10 HP)
Sub Spindle Motor 3.7 kW (5 HP)
Live Tool Speed Up to 5,000 RPM
Tool Capacity Approx. 28 total positions
Cross-Drilling Stations 6 front + 4 rear live tools
Back-Working Tools 8 stations (drilling, tapping, milling)
Coolant System Flood coolant (high-pressure option available)
Bar Feeder Compatibility FMB
Dimensions (L × W × H) ≈ 100″ × 55″ × 65″ (2,540 × 1,397 × 1,651 mm)
Approx. Weight ≈ 6,500 lb (2,950 kg)
