Brother R450X1 High Speed Vertical Machining Center (2016), 2800 Hours
| size | 17" x 12" x 12" | 17" x 12" x 12" |
| X Travel | 17.7" | 449.58 mm |
| Y Travel | 12.6" | 320.04 mm |
| Z Travel | 12" | 304.8 mm |
| Power | 10.1 kW | 13.5 hp |
| RPM | 16,000 RPM | 16,000 RPM |
| # ATC | 22 | 22 |
| Taper | 7/24 #30 | 7/24 #30 |
| Table-W | 11.8" | 299.72 mm |
| Table-L | 23.6" | 599.44 mm |
| # Axis | 3 | 3 |

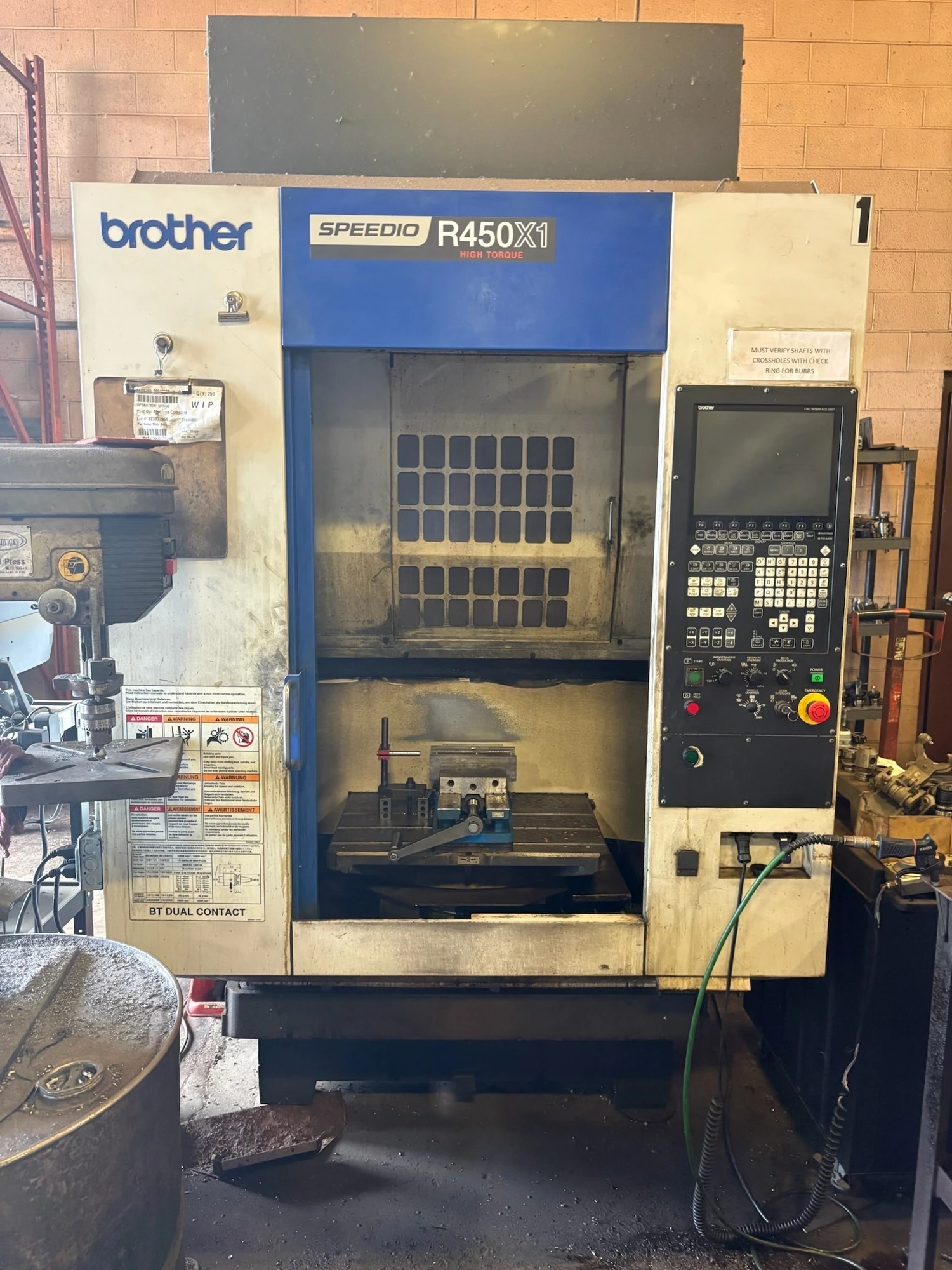

Brother R450X1 High Speed Vertical Machining Center (2016)
X-Axis 17.7″
Y-Axis 12.6″
Z-Axis 12″
Max Tapping Speed 6k RPM
Max Tool Diameter 3.1″
Max Tool Length 7.9″
Max Tool Weight 6.6 lbs.
Pallet Change Time 2.8 Seconds
Rapid Traverse Rates 1969 IPM
Spindle Motor (10 Min / Cont) 9.8 / 6.5 HP
Spindle Nose to Table Top 7.9″ – 19.9″
Spindle Speed 16000 RPM
Spindle Taper BT 30
Table Load Capacity 265 lbs.
Table Size 23.6″ x 11.8″
Tool Change Time (T – T / C – C) 0.8 / 1.6 Seconds
ATC 22
2800 Hours
