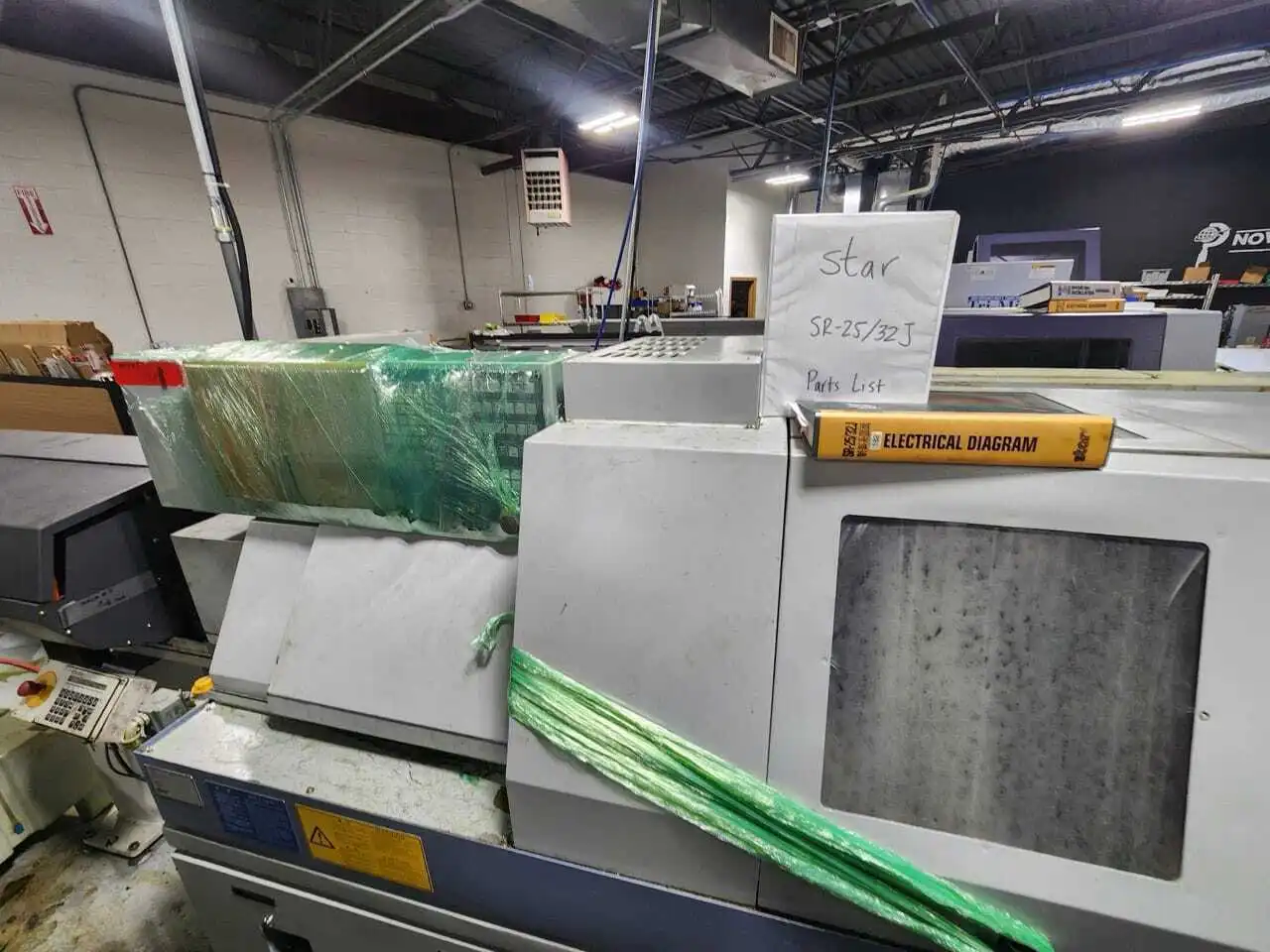

STAR SR-32J Swiss CNC Lathe, New in 2010.
32mm Bar Capacity.
8-Axis Sliding Headstock.
Fanuc Control.
| Capacity | 32 mm | 1.2598" |
| Spindle Hole Diameter | 32 mm | 1.2598" |
| Power | 10 hp | 7.5 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 7 | 7 |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | Full C | Full C |
| Live Back Working Tools | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 108" x 51" x 69" | 108" x 51" x 69" |
| Weight | 6500 lbs | 6500 lbs |
General Specifications:
Control Fanuc CNC Control (typically Fanuc 18i-TB or 31i-A)
Bar Capacity 1.26 in (32 mm)
Max Machining Length (per chuck) 12.6 in (320 mm)
Main Spindle Speed Up to 8,000 RPM
Sub Spindle Speed Up to 8,000 RPM
Number of Axes 8 (X1, Y1, Z1, C1 + X2, Z2, C2 + optional Y2)
Main Spindle Motor 5.5 / 7.5 kW (7.5 / 10 HP)
Sub Spindle Motor 3.7 kW (5 HP)
Live Tool Speed Up to 5,000 RPM
Cross-Drilling Stations 6 front + 4 rear live tools
Back-Working Tools 8 stations (drilling, milling, tapping)
Total Tool Capacity 28+ tools (depending on configuration)
Coolant System Flood coolant / high-pressure coolant ready
Bar Feeder Compatibility FMB
Chip Conveyor – LNS
Machine Dimensions (L × W × H) ≈ 100″ × 55″ × 65″ (2,540 × 1,397 × 1,651 mm)
Weight ≈ 6,500 lb (2,950 kg)
