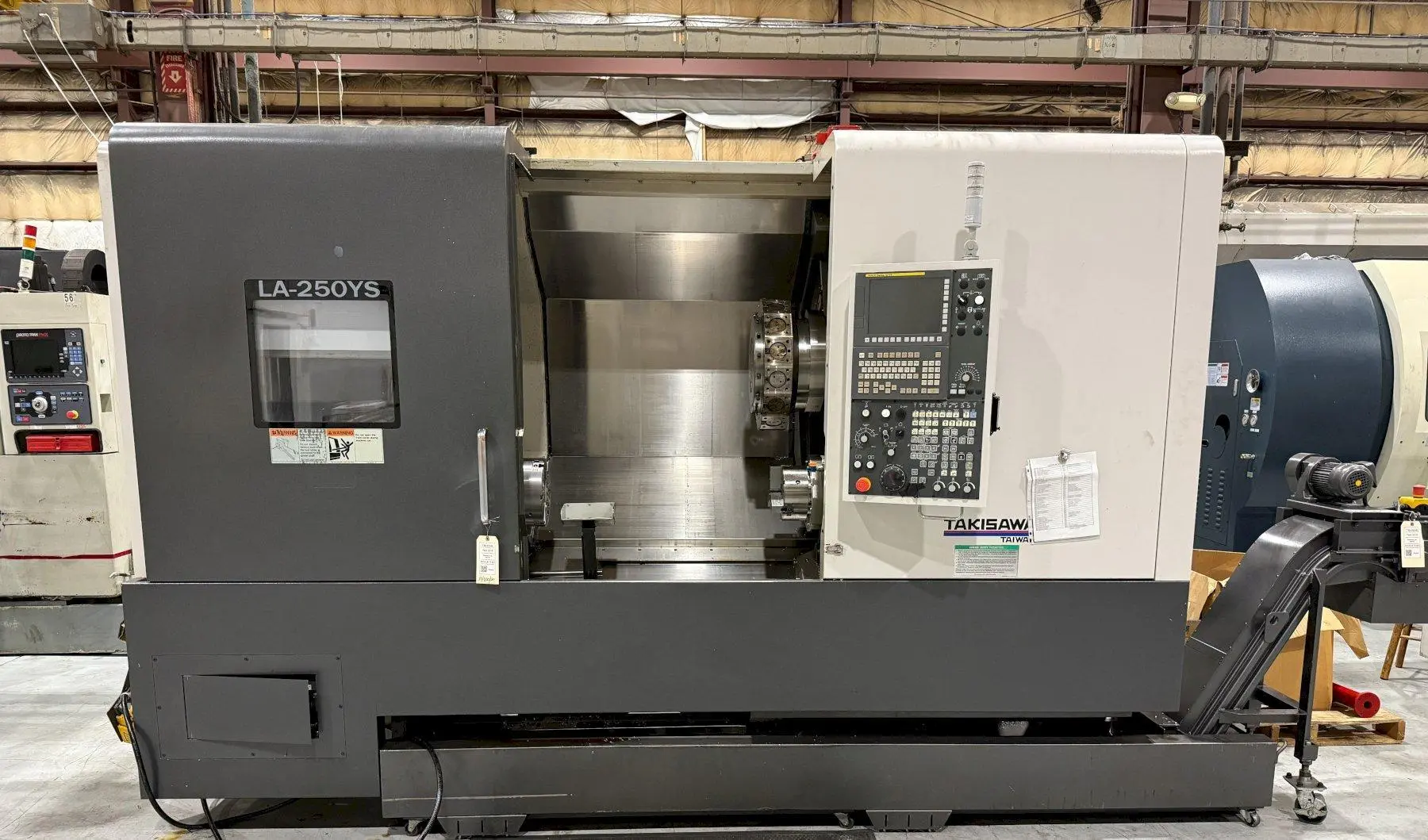

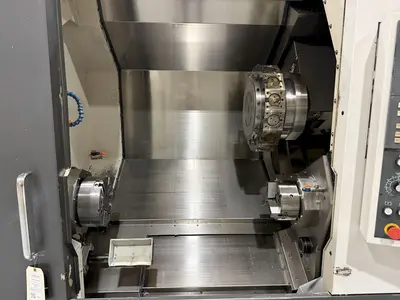

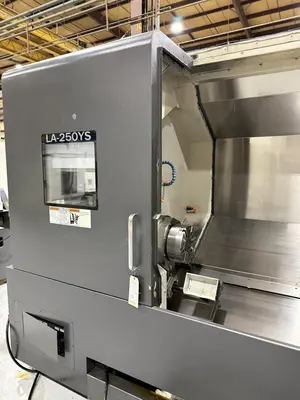

NEW 2018 TAKISAWA LA-250YS

SPECIFICATIONS
Spec
Inch
Metric
CNC Control
yes

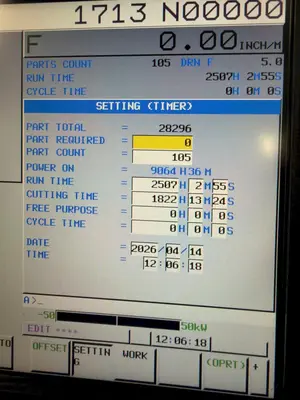

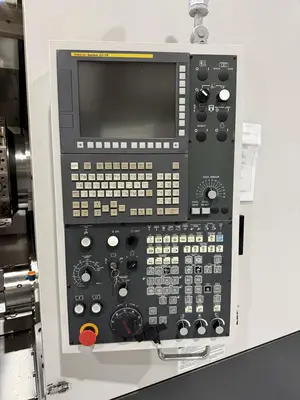

Type of CNC Control
Fanuc 0i-TF

# Axis
6
6
Swing
23.6 in
599.44 mm
Turning Diameter
14.6 in
370.84 mm
Center Distance
43.11 in
1,094.99 mm

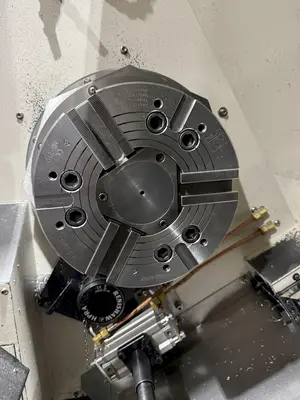

Chuck Size
10 in
254.00 mm
Bar Capacity
3.05 in
77.47 mm
X Axis Travel
10.6 in
269.24 mm
Y Axis Travel
3.92 in
99.57 mm
Z Axis Travel
31.49 in
799.85 mm
B Axis Travel (Sub Spindle)
28.93 in
734.82 mm
C1/C2 Axis Index
0.001°

Rapid Traverse (X/Y/Z)
787/393/797 ipm

Spindle Nose
A2-8

Spindle Speed
3,500 rpm

Main Motor
30 hp

Tailstock
no

Y Axis
yes

Live Tooling
yes

Live Tooling Speed
5,000 rpm

Live Tooling Motor
5 hp

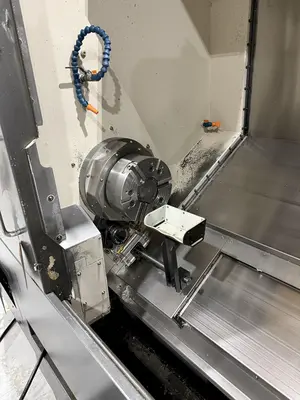

Sub Spindle
yes

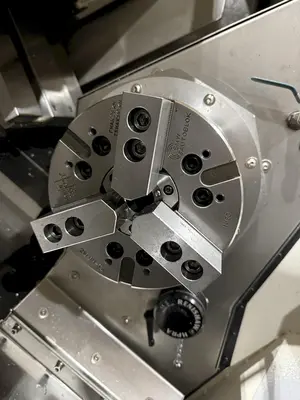

Sub Spindle Chuck
8 in
203.20 mm
Sub Spindle Bar Capacity
2 in
50.80 mm
Sub Spindle Nose
A2-6

Sub Spindle Speed
3,500 rpm

Sub Spindle Motor (HP)
15 hp

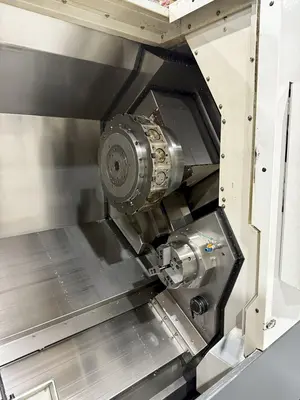

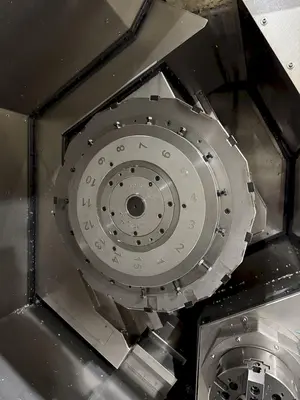

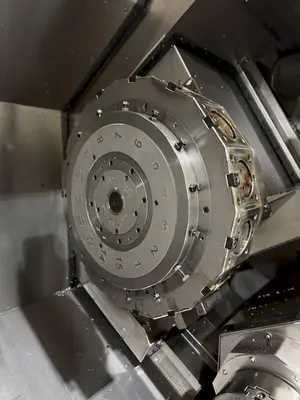

Turret Capacity
15 Stations

Machine Dimensions
149" x 73" x 98"

Machine Weight
17800 lb
8,073.94 kg
EQUIPPED WITH
- Fanuc 0i-TF CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Parts Conveyor
- Live Tooling
- Y Axis
- Sub Spindle
- Tool Presetter
- Spindle Chiller
- Manual Guide i (Conversational Programming)
- Misc. Static Tooling Available
- (2) Straight Live Tool Holders
- (2) Right Angled Live Tool Holders
- Heavy Duty Box Way Machine
