Runs very well
| Mandrel Dia. (min) | 0.06" | 1.524 mm |
| Mandrel Dia. (max) | 4.5" | 114.3 mm |
| Stroke (max) | 16" | 0.4 m |
| Horz/Vert | Horz | Horz |

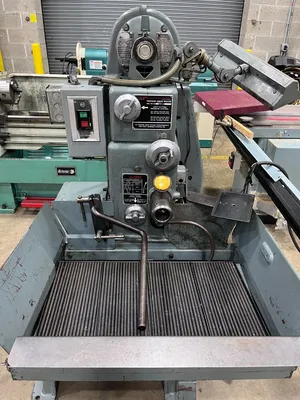

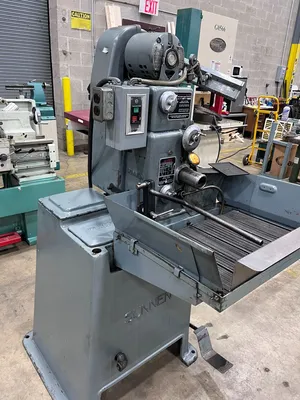

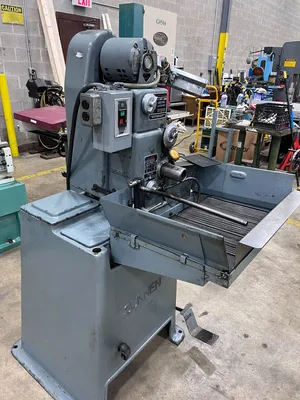

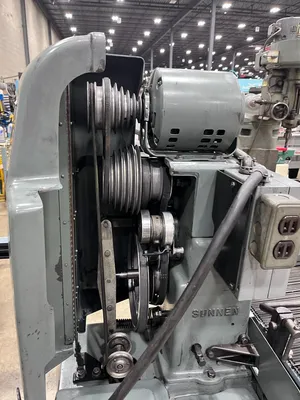

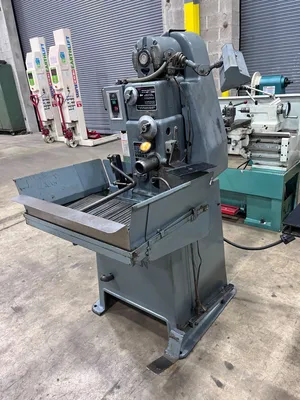

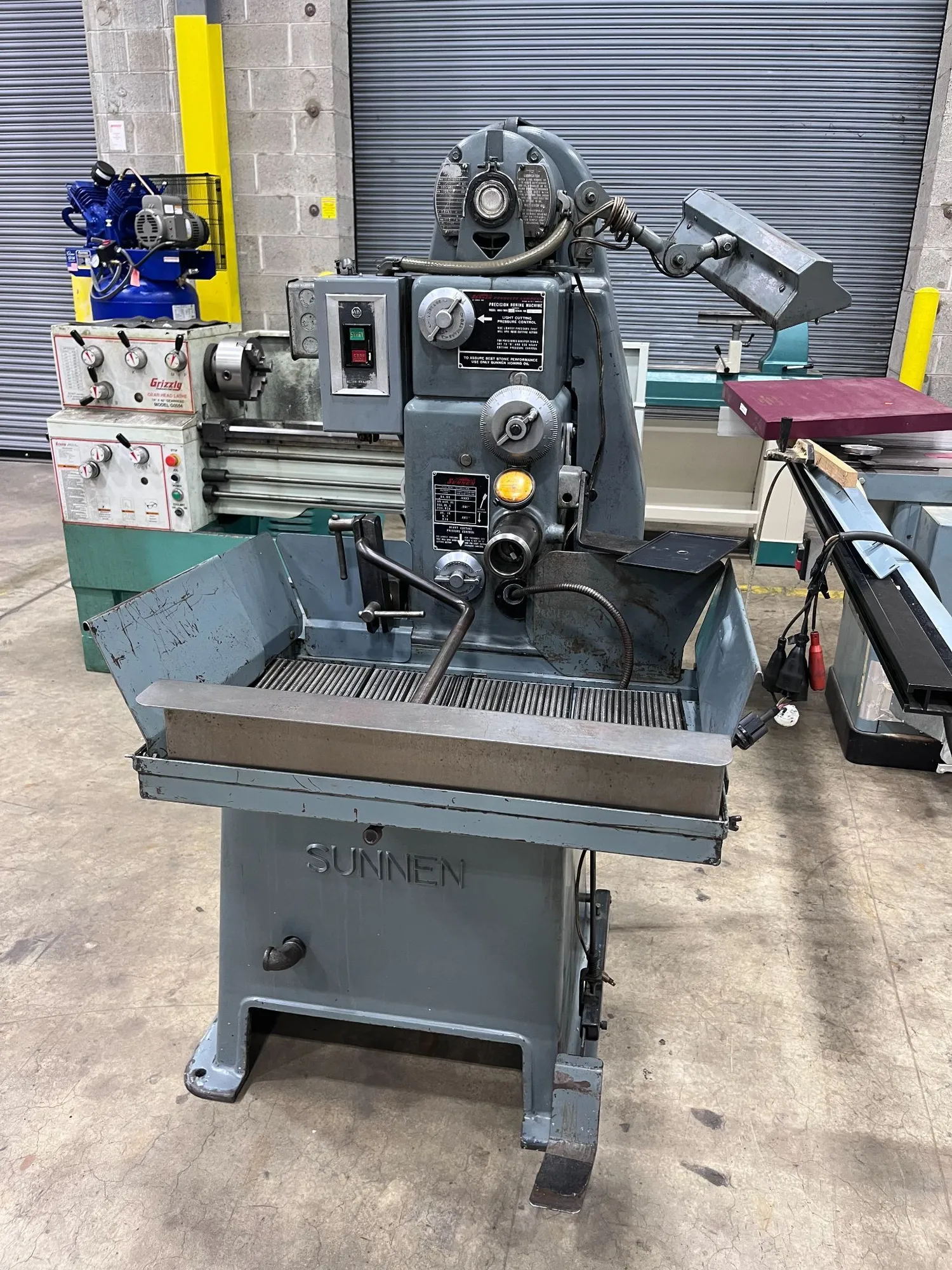

Sunnen Honing Machine, Model MBB 1600 MS, S/N 45763
To View under Power Follow the link Below
https://youtu.be/bBThqspxQwY
SPECIFICATIONS:
I.D. Range…………………………………………….0.060″ – 6.500″
Length Range – Maximum…………………………………………….16″
Spindle Speeds…………………………………………200 – 1,600 RPM
Motor – Spindle………………………………………………..1/2 HP
Electrics……………………………………………220V / 3Ph / 60Hz
Machine Dimensions – Approximate……………..31″(L-R) x 43″(F-B) x 63″(H)
Self-energizing Band-type Spindle Brake
Honing Oil Pump that Utilizes the Spindle Drive Motor
Honing Oil Reservoir
Foot Treadle
Shop Light
Good Condition
Inspect under Power in Our Lebanon NJ warehouse
Price: $ 1950.00
Offered with VFD for single Phase Use $2100.00
