USED AMCOT ST-30

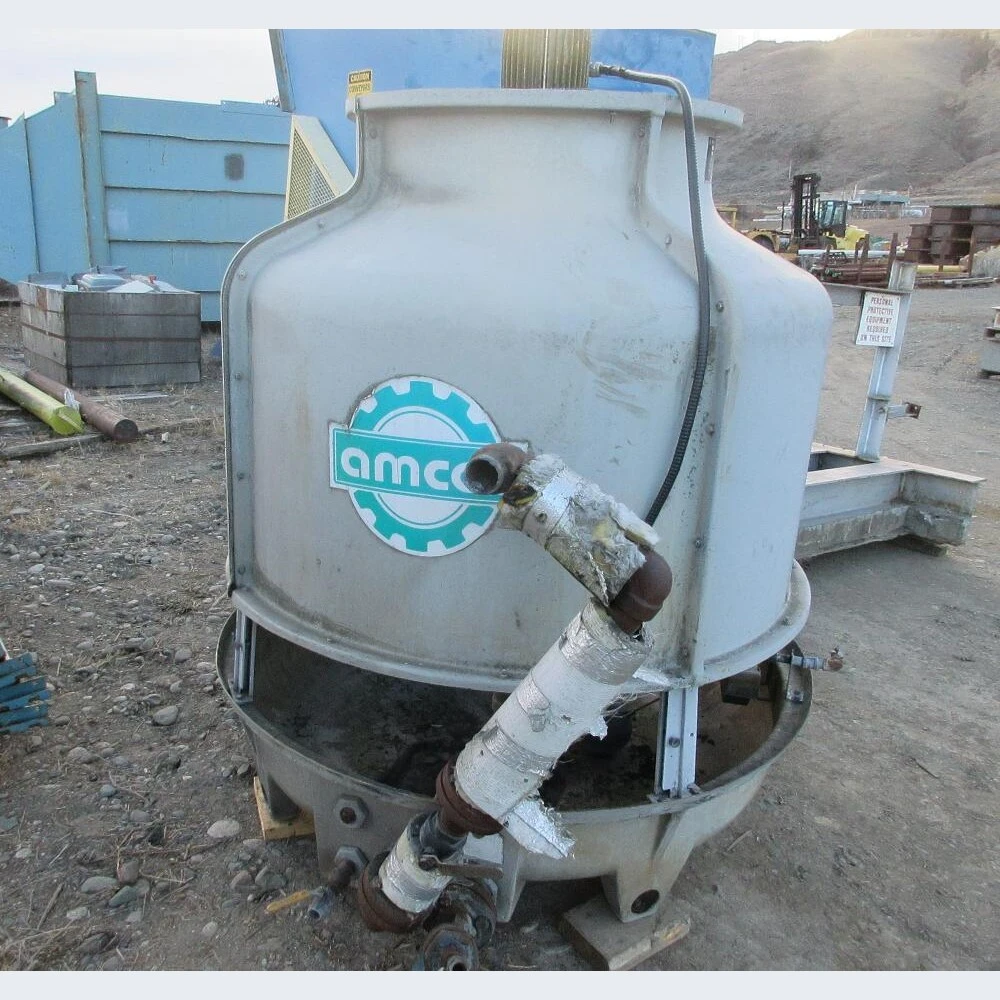

Amcot ST-30 Cooling Tower
Make: Amcot
Model: ST-30
Serial: 98882
Condition: Used
Housing: Fiberglass
Cooling Capacity: 360,000 BTU/Hr.
Air Volume: 8,100 CFM
Water Flow: 61 GPM
Inlet: 2.5in
Outlet: 2.5in

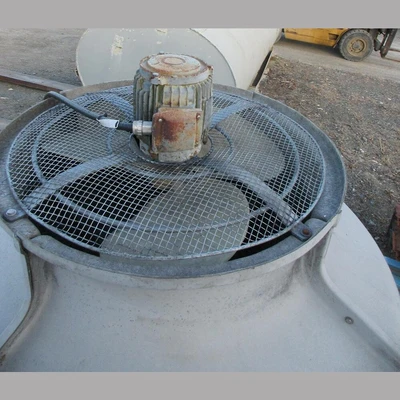

Fan Diameter: 30in

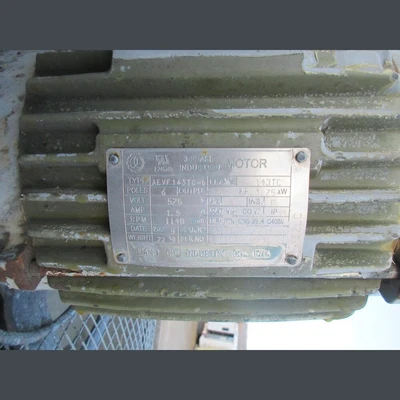

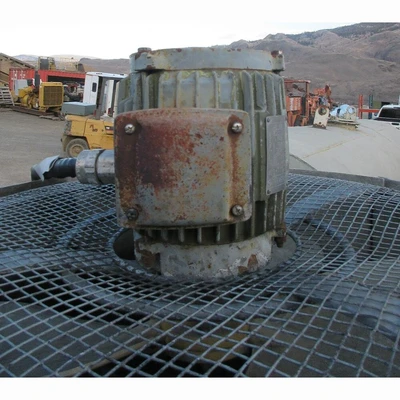

Fan Motor: 1HP
Speed: 1140 RPM
Voltage: 575 Volt
Current: 1.5 Amp
Frequency: 60Hz
Phase: 3-Phase
Speed: 1140 RPM
Voltage: 575 Volt
Current: 1.5 Amp
Frequency: 60Hz
Phase: 3-Phase
Overall Dimensions:
Diameter: 62in
Height: 84in
Top Diameter: 36in
Bottom Diameter: 62in
Float Diameter: 6in
Diameter: 62in
Height: 84in
Top Diameter: 36in
Bottom Diameter: 62in
Float Diameter: 6in
Location: Savona, British Columbia, Canada
