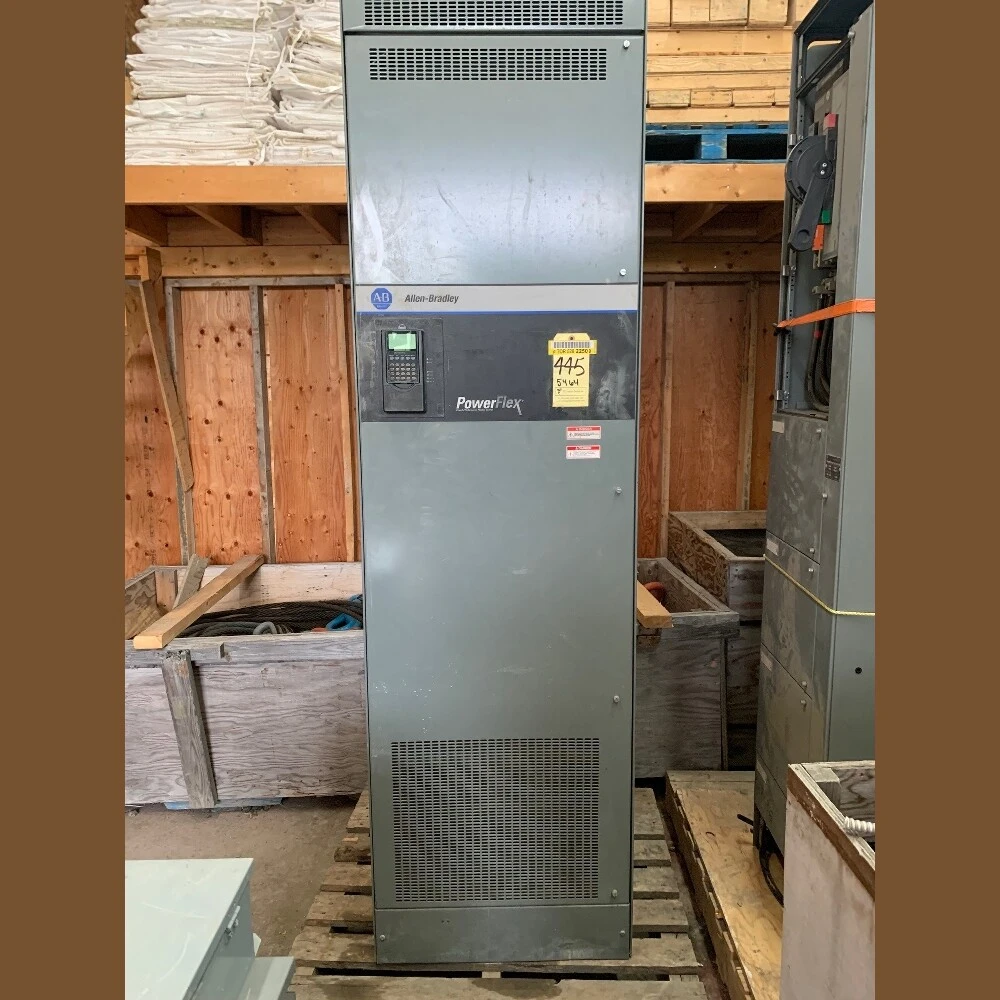

USED 2012 ALLEN-BRADLEY POWERFLEX 700S

350HP Allen-Bradley Powerflex 700S VFD

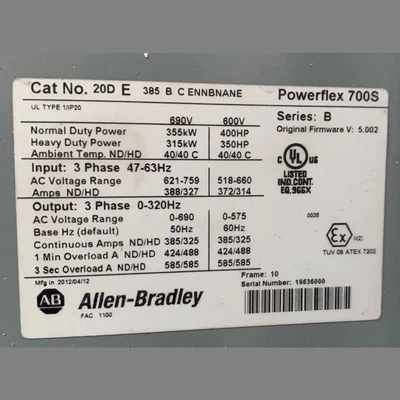

Make: Allen-Bradley
Model: Powerflex 700S
Type: Variable Frequency Drive
Series: B
Cat No: 20D E
Year: 2012/04/12
Condition: Unused Condition
Frame: 10
UL Type: 1/IP20
Voltage: 600 Volt

690 Volt
600 Volt
Normal Duty Power
355kW
400HP
Heavy Duty Power
315kW
350HP
Ambient Temp. ND/HD
40°C/40°C
40°C/40°C
Input: 3-Phase 47-63Hz
690 Volt
600 Volt
AC Voltage Range
621-759
518-660
Amps ND/HD
388/327
372/314
Output: 3-Phase 0-320Hz
690 Volt
600 Volt
AC Voltage Range
0-690
0-575
Base Hz (Default)
50Hz
60Hz
Continuous Amps ND/HD
385/325 A
385/325 A
1 Min Overload Amps ND/HD
424/488 A
424/488 A
3 Sec Overload Amps ND/HD
585/585 A
585/585 A
Location: Eastern Canada
