| Swing | 20" | 508 mm |
| Machining Length | 40" | 1,016 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 0" | 0 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Bridgeport EZ-Path CNC Control) | CNC (Bridgeport EZ-Path CNC Control) |
| Dimensions | 107" L x 56" W x 66" H | 107" L x 56" W x 66" H |
| Weight | 5000 | 5000 |

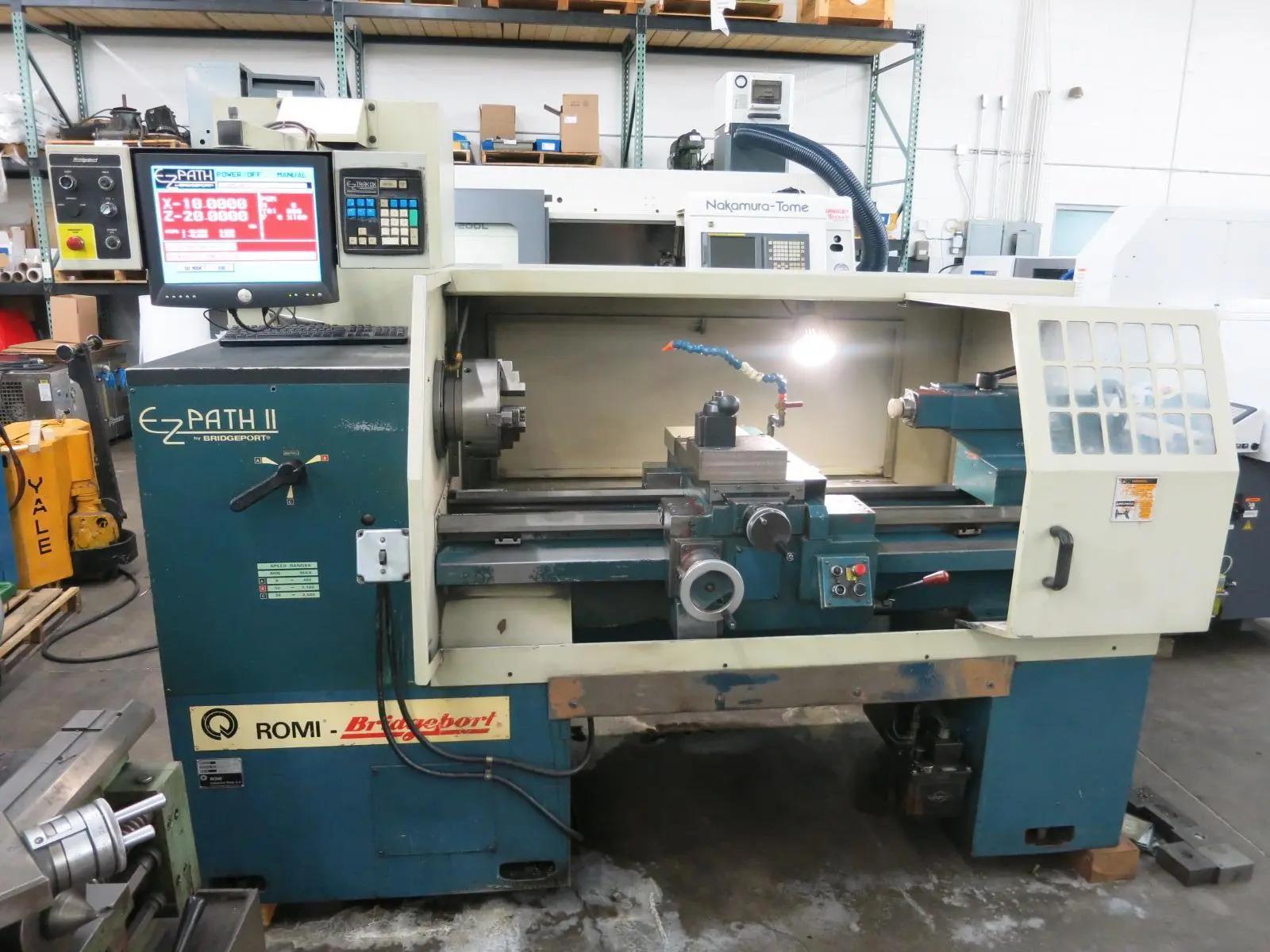

Bridgeport EZ Path II CNC Lathe
Main Motor: 10 HP
X-Axis Travel:10"
Z-Axis Travel: 40"
Swing Over Bed: 20"
Swing Over Cross Slide: 10"
Distance Between Centers: 40"
230V, 3-Phase, 60Hz
Spindle Speeds: Variable up to 3,500 RPM
Machine Weight: Approx. 5,000 lbs.
Footprint: Approx. 107" L x 56" W x 66" H
Bridgeport EZ-Path CNC Control with Teach and Constant Surface Speed,
Variable Spindle Speeds,
10" 3-Jaw Chuck,
Tailstock,
Bijur Lube System,
Quick Change Tool Post,
3.5" Floppy Drive,
RS-232,
Sliding Chip Enclosure,
Coolant System,
Manuals and Boot Disk
