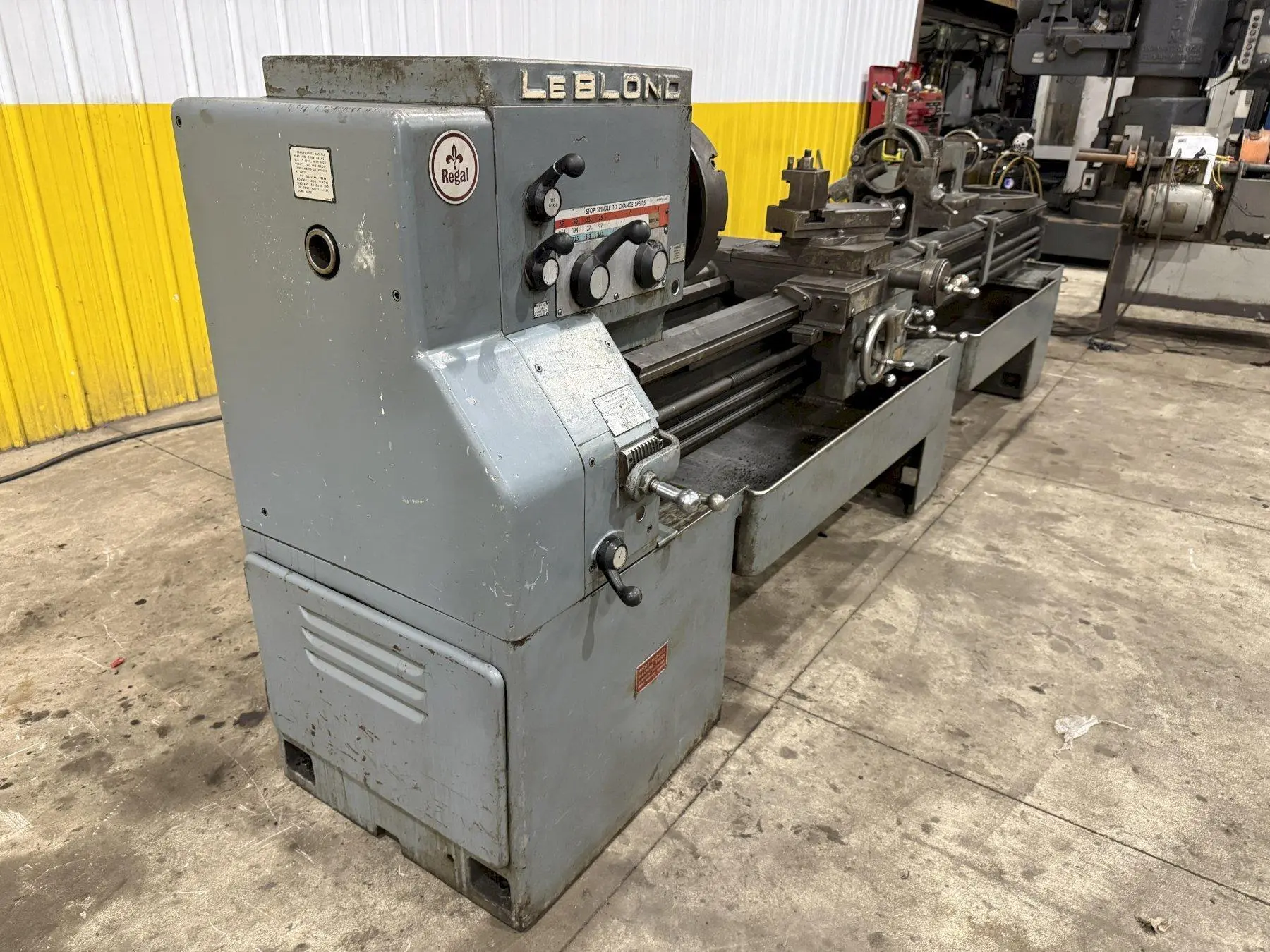

USED LEBLOND 19" X 120" REGAL #6E ENGINE LATHE (14661)
Overview
Description
19" X 120" LEBLOND MODEL #6E REGAL ENGINE LATHE 1.75" HOLE: STOCK # 14661
Specifications
| Swing | 19" | 482.6 mm |
|---|---|---|
| Centers | 120" | 3,048 mm |
19" X 120" LEBLOND MODEL #6E REGAL ENGINE LATHE 1.75" HOLE
STOCK # 14661
Specifications:
SERIAL ....................... 6E 911
MODEL ........................ REGAL
SWING OVER BED ............... 19"
SWING OVER CROSS SLIDE ....... 12-1/2"
DISTANCE BETWEEN CENTERS ..... 120"
SPINDLE SPEEDS ............... 25 TO 1000 RPM
HOLE THROUGH SPINDLE ......... 1-13/16"
THREADS ...................... 2 TO 112 TPI
FEEDS ........................ .0018 TO .104 IPR
THREAD DIAL .................. YES
CHUCK ........................ 4 JAW
FACE PLATE ................... YES
STEADY REST .................. 3 POINT
MOTOR ........................ 7-1/2 HORSEPOWER
**Temporary Specifications Subject To Revision**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
