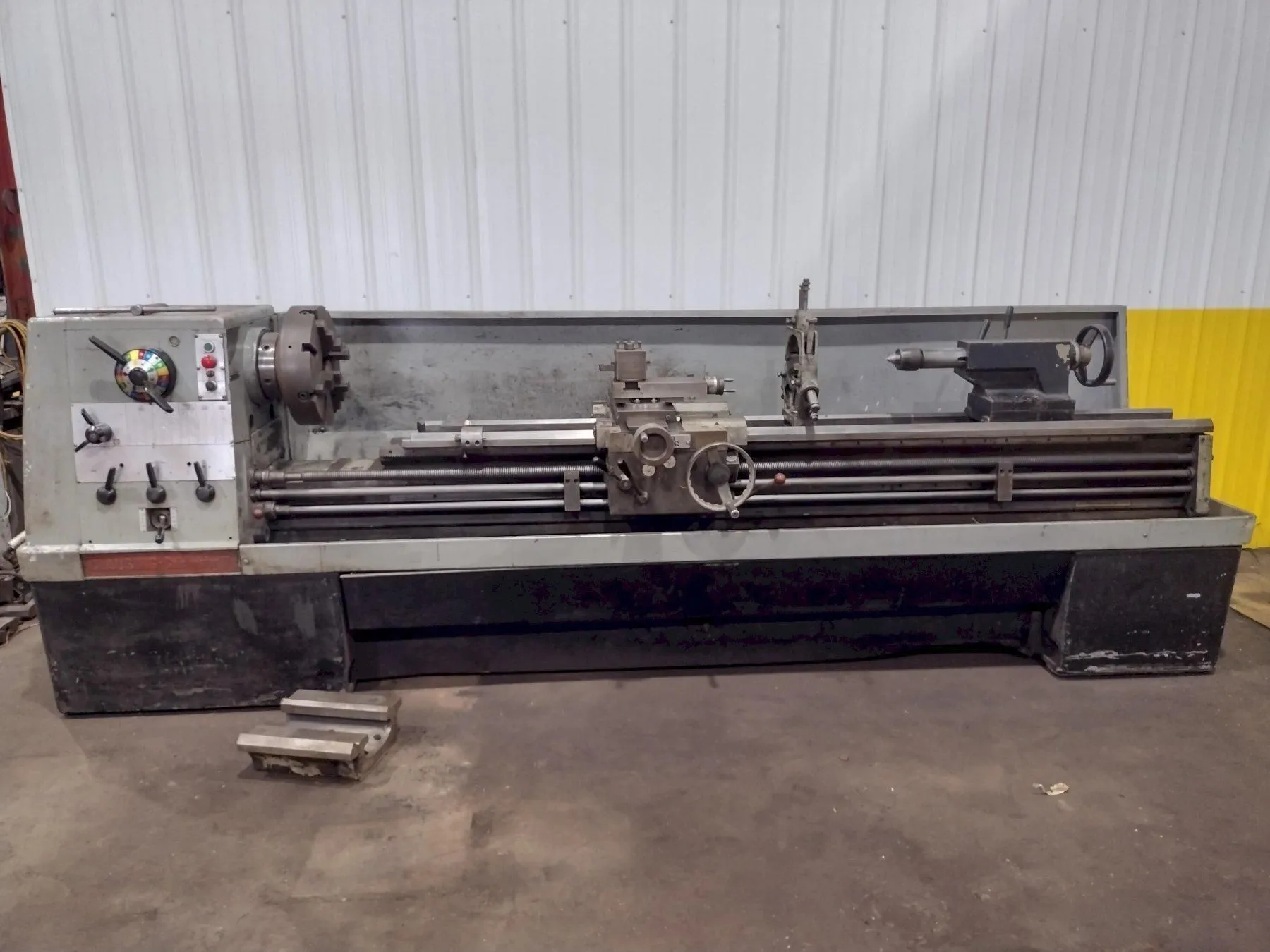

17" x 108" CLAUSING COLCHESTER MODEL #17 ENGINE LATHE, 3.25" HOLE: STOCK #14660
| Swing | 17" | 431.8 mm |
| Centers | 108" | 2,743.2 mm |
17" x 108" CLAUSING COLCHESTER MODEL #17 ENGINE LATHE, 3.25" HOLE
STOCK # 14660
Specifications:
SERIAL ............................. 7/0056/10558
MODEL .............................. 17
SWING OVER WAYS .................... 18"
SWING OVER CROSS SLIDE ............. 10-1/2"
DISTANCE BETWEEN CENTERS ........... 108"
SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/4"
FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR
THREADS (ENGLISH) .................. (38) 2 TO 72 TPI
THREADS (METRIC) ................... (40) .4 TO 14 MMPI
CROSS FEEDS ........................ .001 TO .016
CHUCK .............................. 16" 4-Jaw Chuck
STEADY REST ........................ 7"
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
COOLANT ............................ YES
TRAVEL DIAL ........................ YES
MOTOR .............................. 10 HORSEPOWER
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
