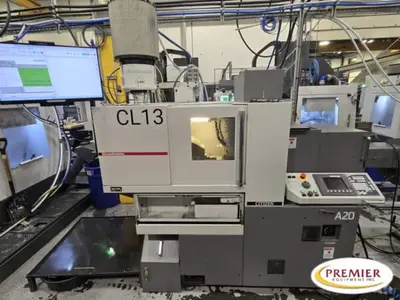

Citizen A20-VIIPL – 2013

number of axes: 7
maximum turning diameter (main spindle): 20 mm (.787”)
maximum turning length: 165 mm (6.49”)
maximum turning diameter (sub-spindle): 20 mm (.787”)
maximum capture length: 80 mm (3.14”)
bar diameter range: 2-20 mm (.078 – .787”)
rapid traverse in X1 axis: 708 IPM
rapid traverse in Y1, Z1, X2, Z2 axes: 1259 IPM
C-axis indexing (main spindle): every 0.001°
C-axis indexing (sub-spindle spindle): every 0.001°
maximum rotational speed (main spindle): 8000 rpm
maximum rotational speed (sub-spindle spindle): 8000 rpm
maximum drive power (main spindle): 5 HP
maximum drive power (sub-spindle): 2 HP
total number of tools in the head: 21
number of driven tools: 4
number of cutting tools: 5
number of fixed tools for face drilling: 4
number of fixed tools for back drilling: 8
maximum rotational speed of driven tools: 8000 rpm
driven tools drive power: 1 HP
dimensions (L x W x H): 85” x 49” x 69”
weight of machine: 5000 lbs

All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity..
