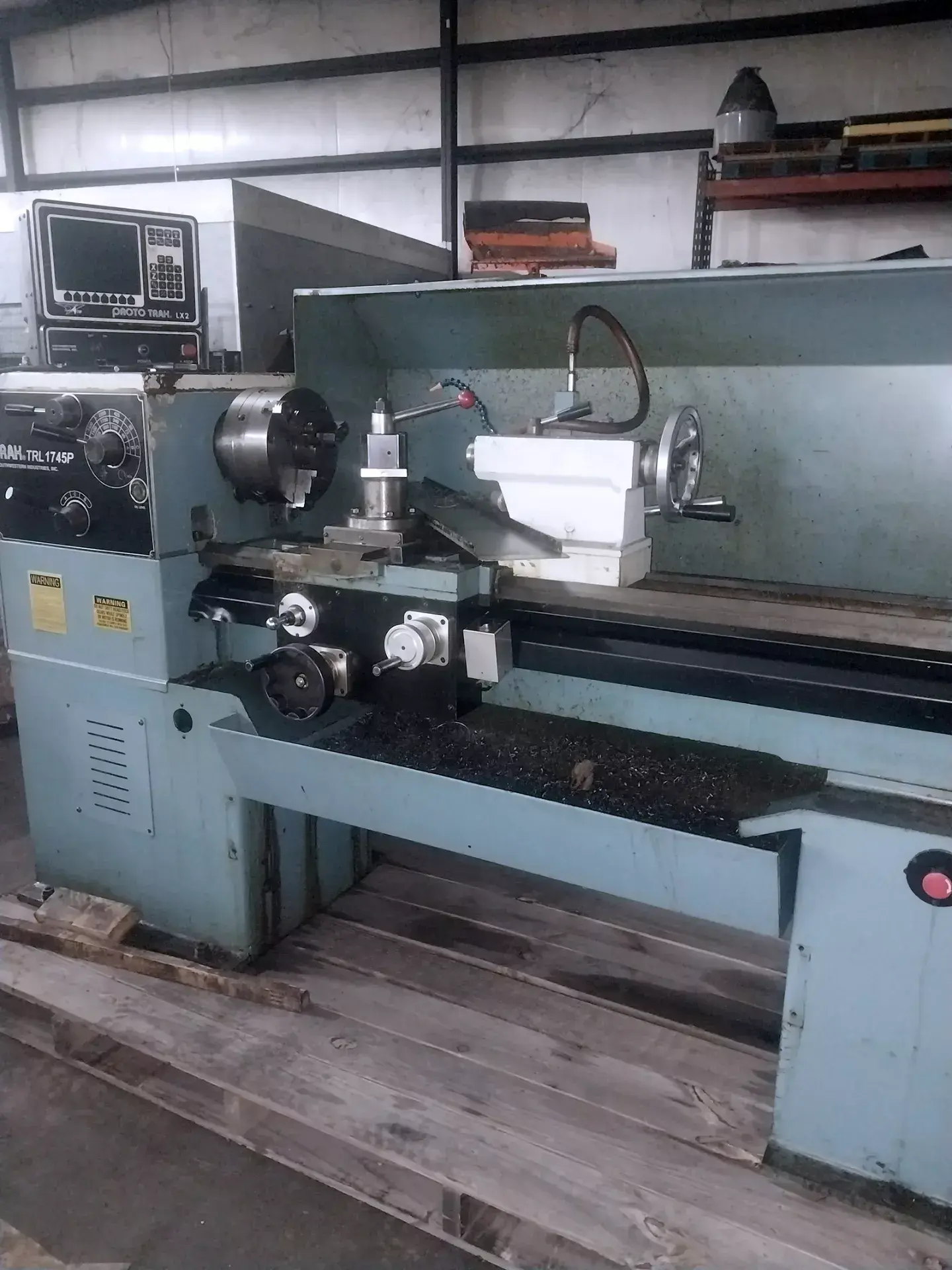

USED SOUTHWESTERN INDUSTRIES TRAK TRL 1745P
Overview
Description
TRAK TRL 1745P Lathe features the LX2 Control by Southwestern Industries, ideal for precision machining with Sport Machines, ensuring reliable performance and advanced functionality for various industrial applications.
Specifications
| Swing | 17.687" | 449.25 mm |
|---|---|---|
| Machining Length | 45" | 1,143 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 2,200 RPM | 2,200 RPM |
| Turning Dia | 17.688" | 449.26 mm |
| Tailstock | Yes | Yes |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (SWI LX2) | CNC (SWI LX2) |
| Dimensions | 90" x 42" x 64" | 90" x 42" x 64" |
| Weight | 3800 | 3800 |

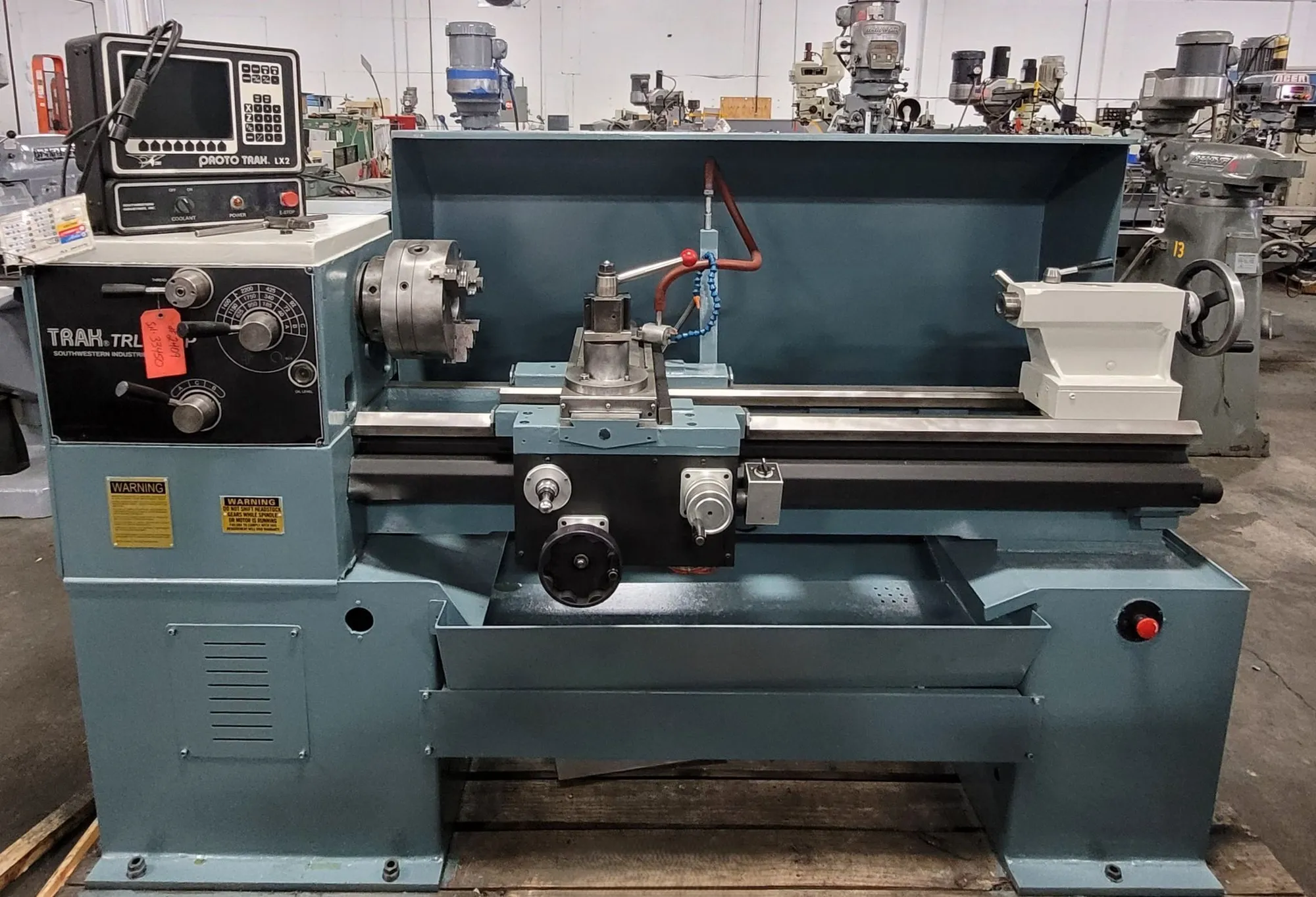

SOUTHWESTERN INDUSTRIES TRAK TRL 1745P LATHE
SWI LX2 Control
10" 3 Jaw Chuck
Quick Change Toolpost
Capacity
Height of Centers 8-7/8″
Distance Between Centers 45″
Swing Over Bed 17- 11/16″
Swing Over Saddle Sings 16- 1/8″
Swing Over Cross- Slide 10-15/32″
Cross- Slide Travel 9″
Tool Section Maximum 1″
Coolant 4 Gallons
Headstock
Spindle Nose (camlock) D1-6
Spindle Through Hole 2″
Taper in Reduction Sleeve Mt#4
Spindle Diameter/ Front Bearing 3.15
Number of Spindle Speeds 12
Spindle Speed Range: 40-2200 Rpm
Tailstock
Quill Travel 6-1/4″
Quill Diameter 2-5/16″
Quill Taper Hole Mt#4
90" x 42" x 64"
3800lbs
