USED DONALDSON TORIT CPC-4

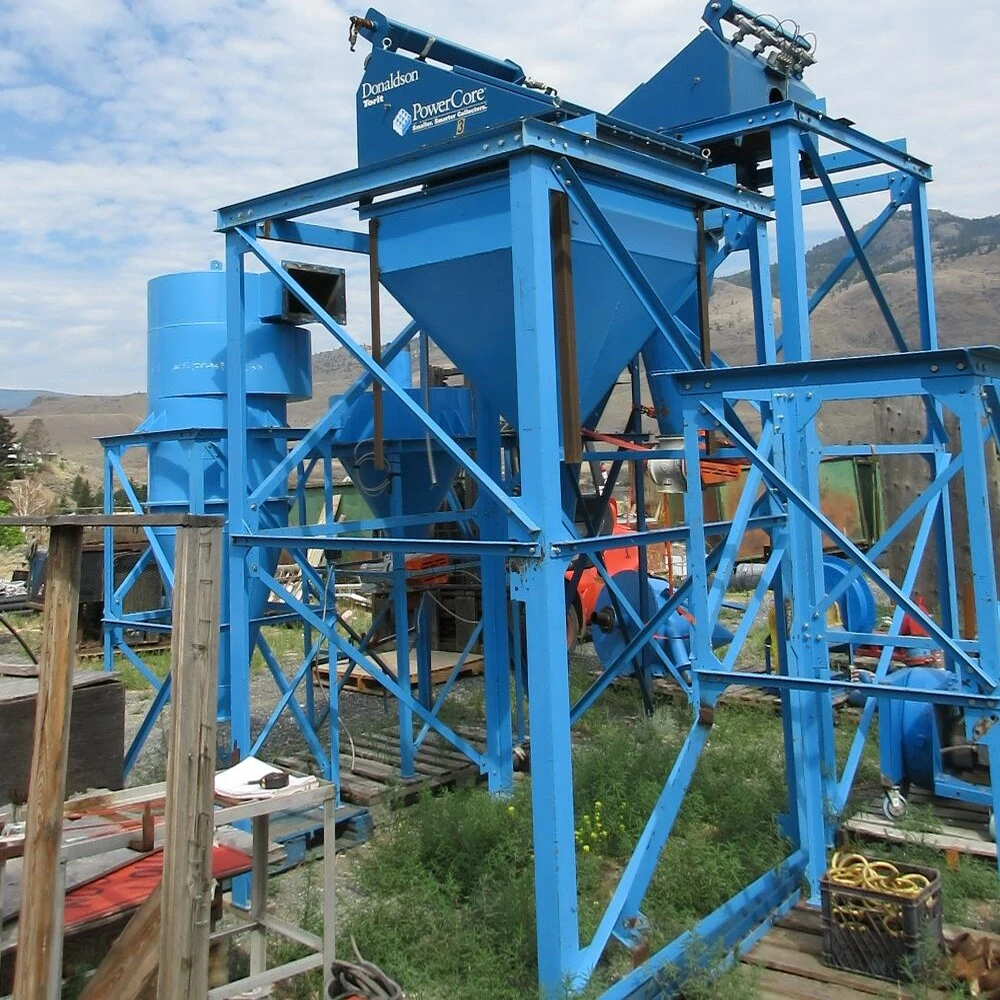

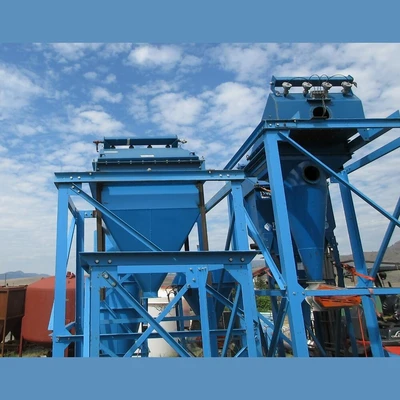

Donaldson Power-Core CPC-4 Dust Collector
Make: Donaldson Torit
Model: CPC-4

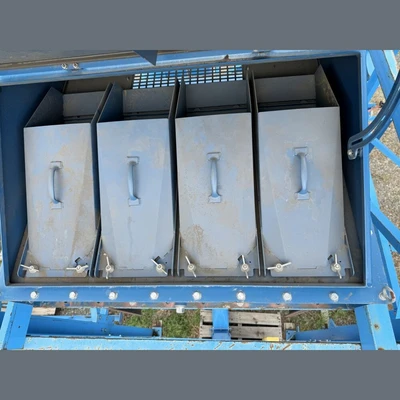

Filter Packs: 4
Filtration Area: 24.8m²

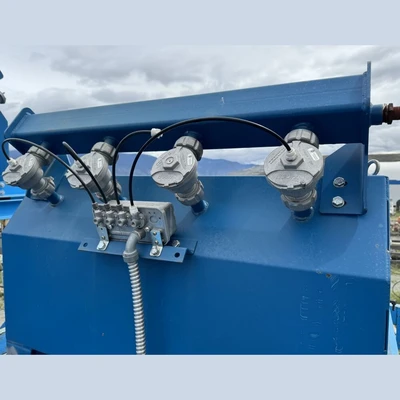

Valves:
4 Goyen Air Operated.
4 Goyen Air Operated.

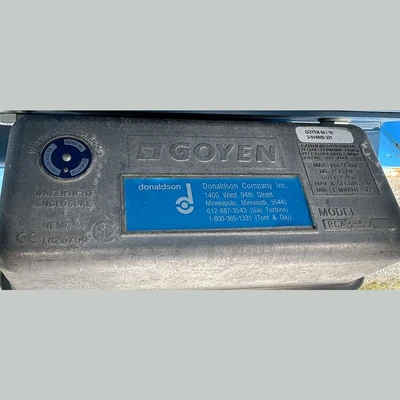

With Goyen RCA3-5V Pilot Solenoid Valve Controller
Dirty Air Inlet: 4in
Clean Air Outfeed: 16in x 12in
Range: 1,400 - 2,700 CFM
Working Compressed Air Pressure: 6.2 bar (90 PSIG)
Atmospheric Air Volume (F.A.D. at 12s Intervals): 20m³/h (11.8 CFM)
Pulse Duration: 100ms
Dust Disposal Outlet: 6in

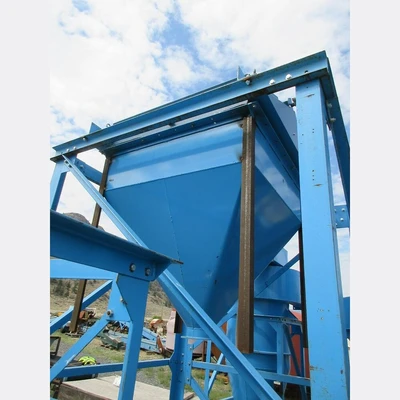

Disposal Hopper Dimensions:
Length: 44in
Width: 42in
Height: 42in
Length: 44in
Width: 42in
Height: 42in
Mounted on 4in x 4in Angle Iron Frame
Overall Dimensions:
Height: 13ft
Width: 6ft
Depth: 6ft
Weight: 531 Kgs
Height: 13ft
Width: 6ft
Depth: 6ft
Weight: 531 Kgs
Location: Savona, British Columbia, Canada
