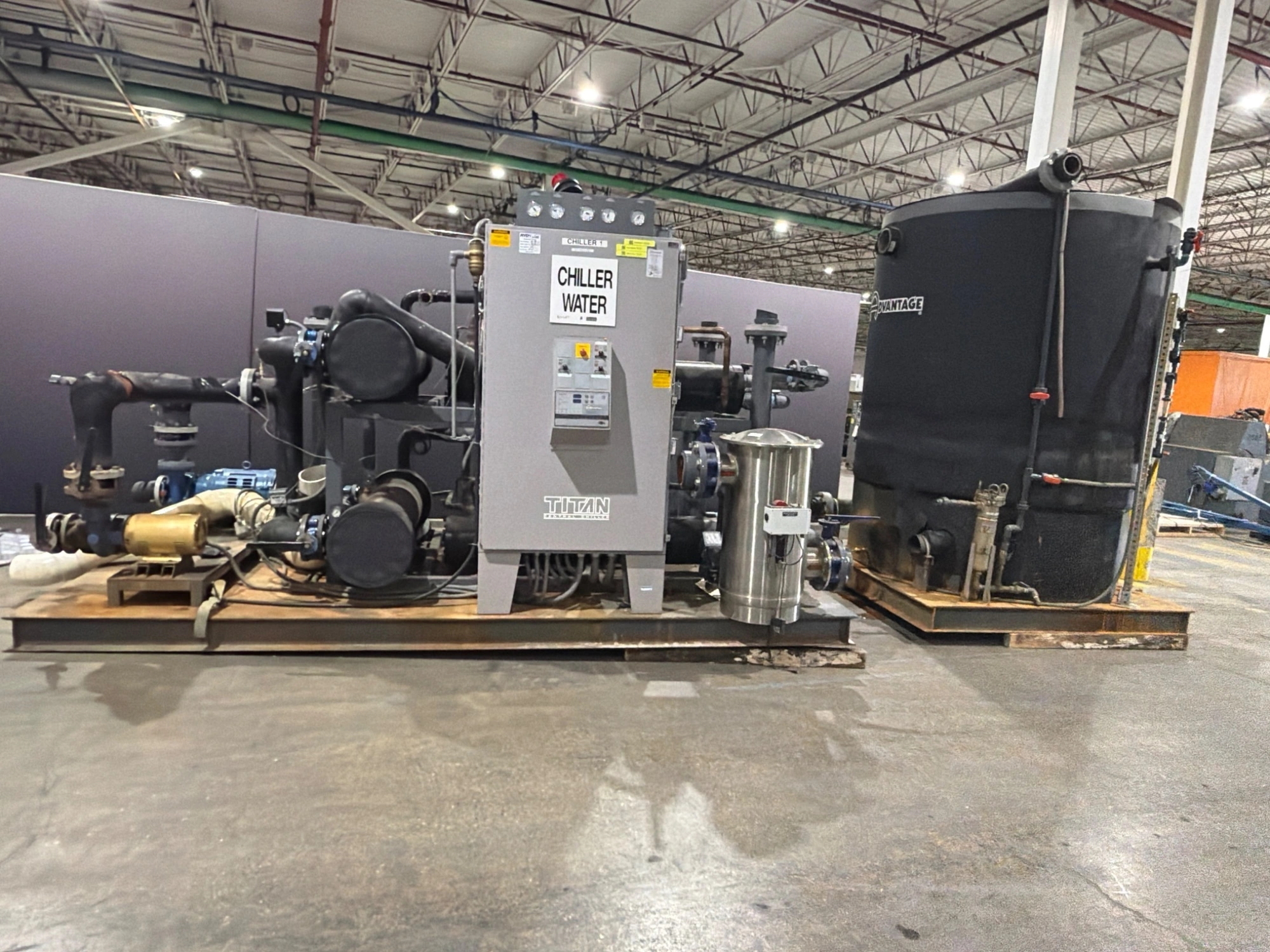

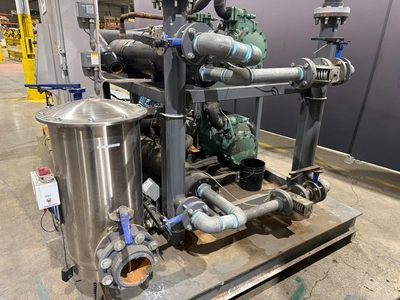

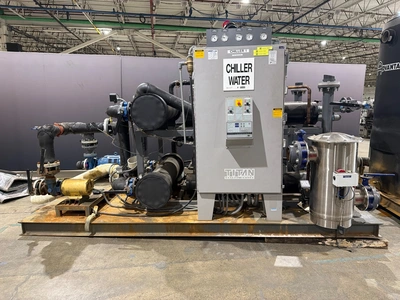

This listing is for a USED ADVANTAGE ENGINEERING TIP-100W Titan. This unit is designed to provide industrial water chilling by removing heat from circulating process water and supplying cooled fluid to connected equipment. It is commonly applied in plastics processing and industrial cooling systems requiring large-capacity operation with 460V 3-phase power, R407C refrigerant, and integrated multi-compressor configuration.
| Weight | 6515 LBS | 6515 LBS |
Manufacturer: Advantage Engineering
Product Line: Titan

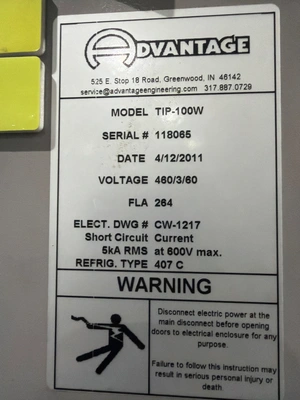

Model: TIP-100W
Condition: USED
YOM: 2011
Device Type: Industrial Water Chiller
Function: Removes heat from circulating water for process cooling
Cooling Capacity: 100 ton
Electrical:
Voltage: 460 V
Phase: 3 Phase
Frequency: 60 Hz
Full Load Amps (FLA): 264
Refrigeration:
Refrigerant Type: R407C

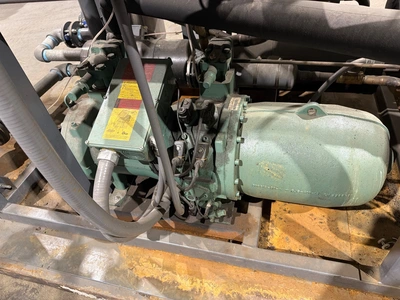

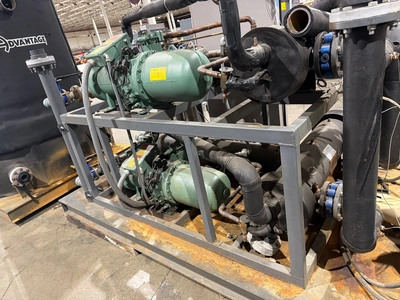

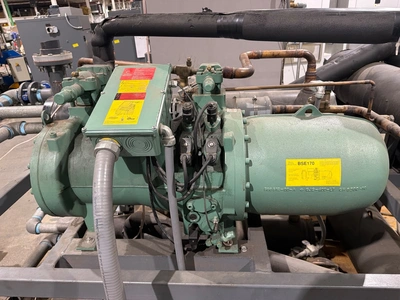

Compressor Configuration: Multiple compressors
Short Circuit Current Rating: 5 kA RMS @ 600V max
Control System:

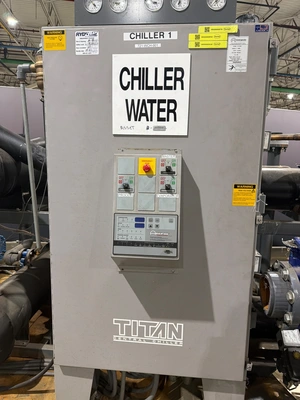

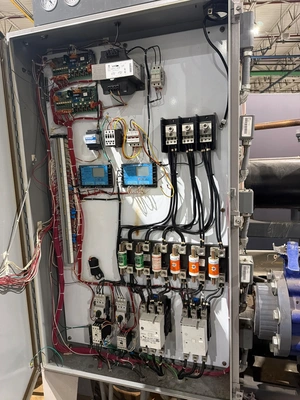

- Integrated control panel
- Emergency stop / disconnect
- Monitoring interface with gauges
Fluid System:

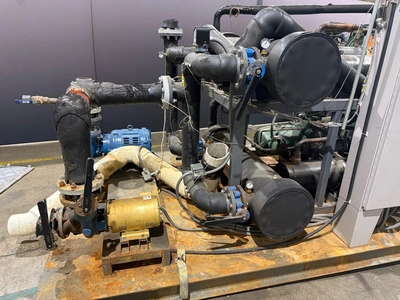

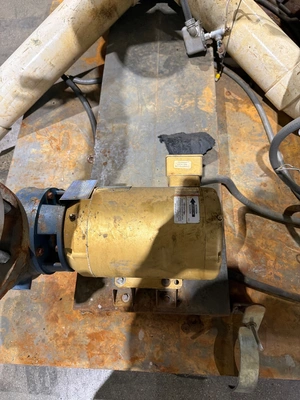

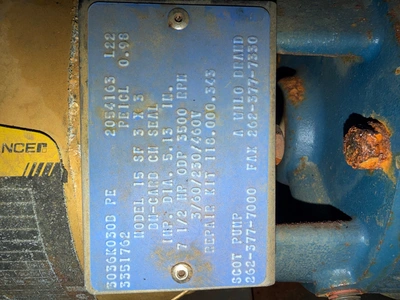

- Circulation pump system

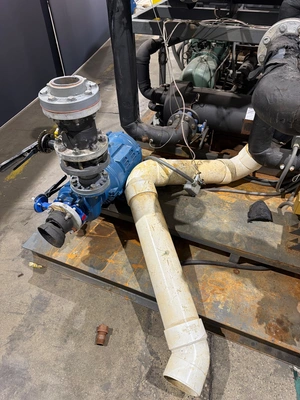

- Piping manifold

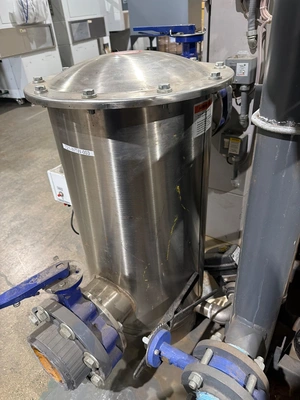

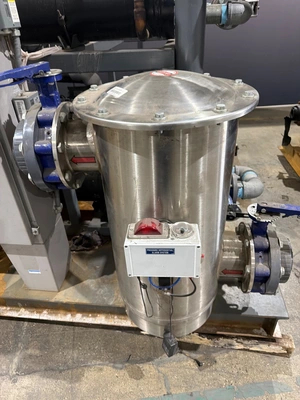

- Stainless reservoir vessel

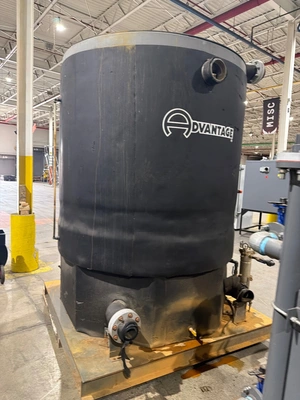

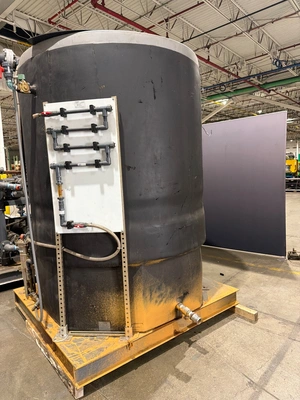

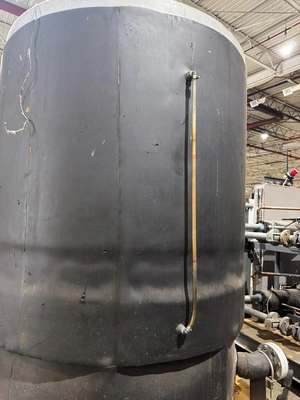

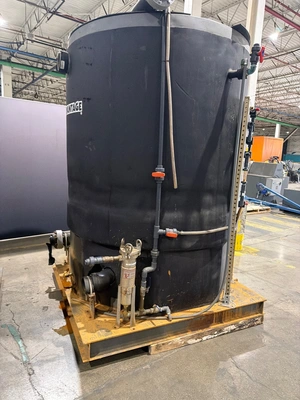

- External storage tank
- Inline filtration housing
Pressure Rating:
Maximum Pressure: 100 PSI
Maximum Temperature: 125°F
Additional Component:

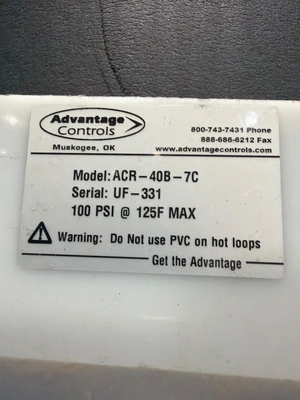

Accessory Unit Model: ACR-40B-7C
Accessory Serial: UF-331
Mounting: Skid-mounted system
Country of Manufacture: USA
