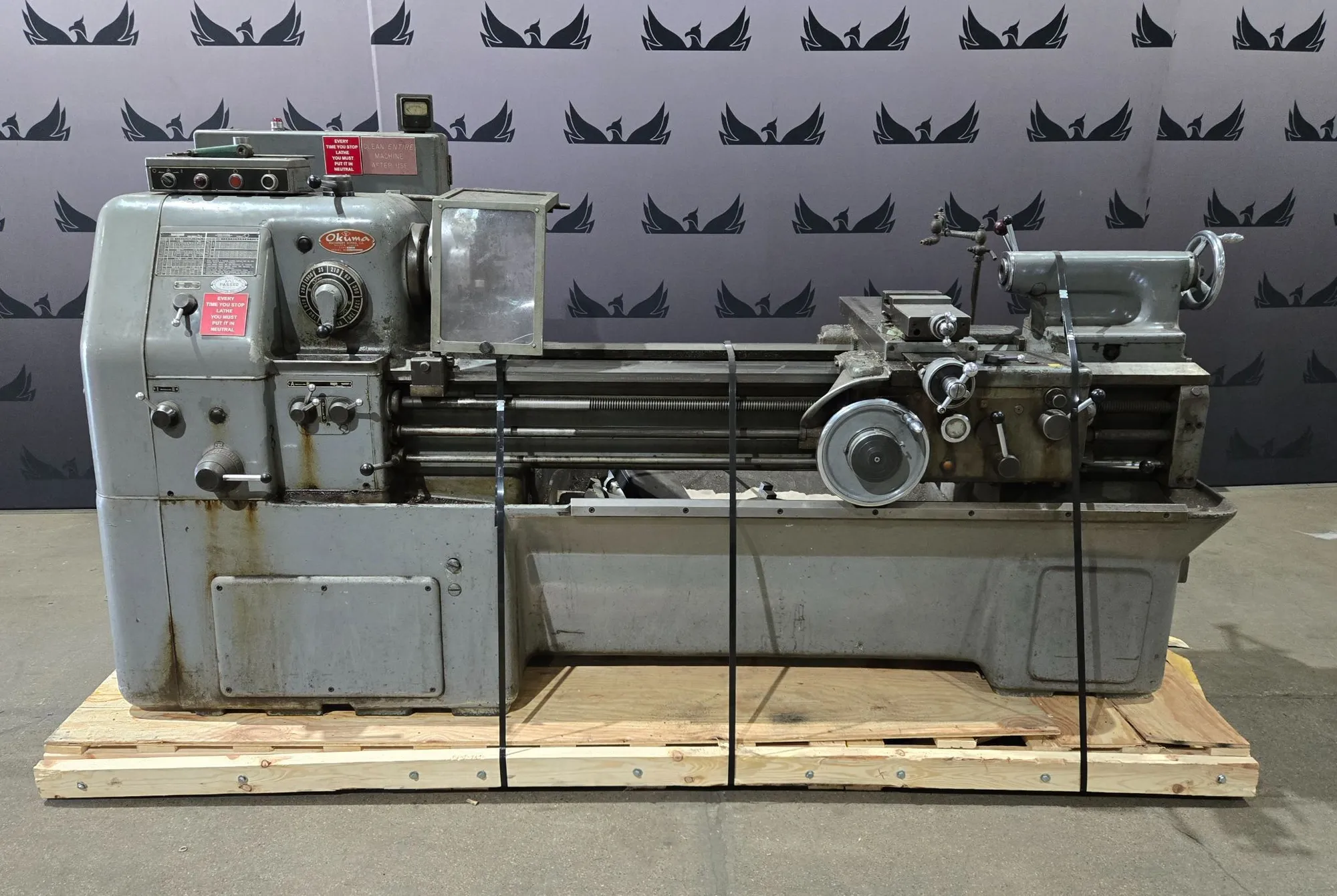

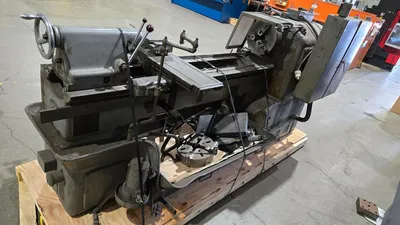

This listing is for a USED OKUMA LS. This unit is designed to perform manual turning operations by rotating a workpiece against cutting tools for machining. It is commonly applied in machine shops and industrial environments for turning, facing, and threading, and includes a 3-jaw chuck, tailstock, threading gearbox, and integrated electrical control cabinet for machine operation.
| Swing | 21" | 533.4 mm |
| Centers | 57" | 1,447.8 mm |
| Spindle Bore | 2" | 50.8 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 35 RPM | 35 RPM |
| Swing Over Cross Slide | 13.7" | 347.98 mm |
| Dimensions | 116X43X66 | 116X43X66 |
| Weight | 5896LBS | 5896LBS |
Manufacturer: Okuma Machinery Works Ltd.
Model: LS
Machine Type: Engine Lathe
Condition: USED
YOM: n/a
Function: Manual metal turning and machining operations
Country of Manufacture: Japan

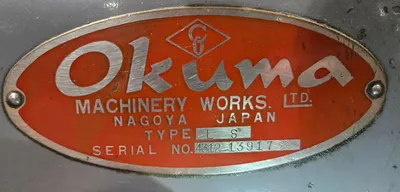

Serial Number: 4312-13917
Control Type: Manual

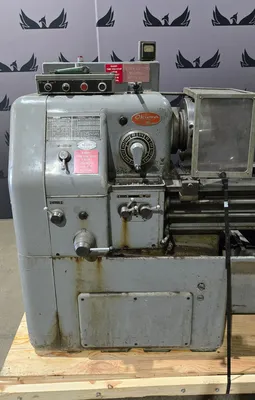

Spindle Drive: Gear-driven headstock

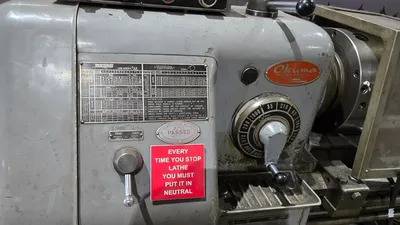

Speed Selection: Mechanical dial selector
Threading System:
- Integrated gearbox

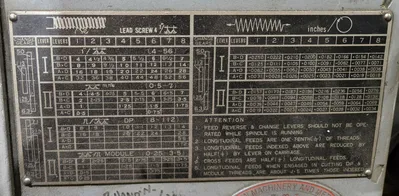

- Feed and threading chart plate (inch and metric tables present)
- Leadscrew driven threading

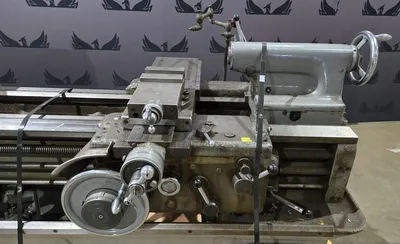

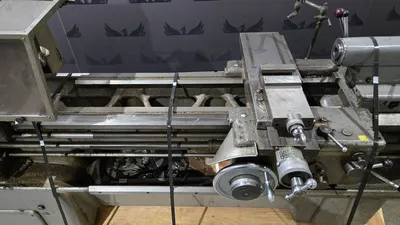

Carriage Assembly:
- Cross slide
- Compound rest
- Tool post
Tailstock: Included
Workholding:

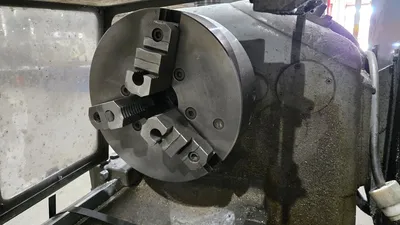

- 3-jaw chuck included
Feed System:
- Leadscrew present
- Feed rod present

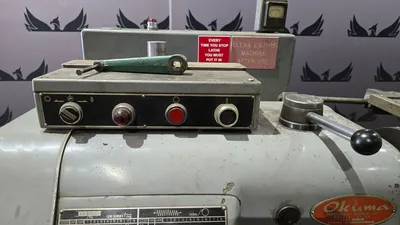

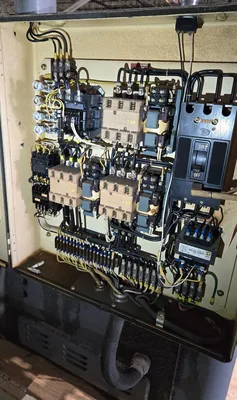

Electrical System:
- Internal control cabinet
- Contactor-based motor control
- Main disconnect switch
Base / Chip Handling:
- Integrated chip pan
Mounting: Floor-standing, secured to pallet
Included Components:
- Lathe machine
- 3-jaw chuck

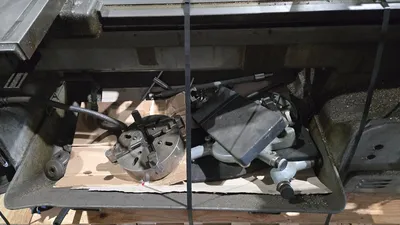

- Tooling components (loose)
- Tailstock
