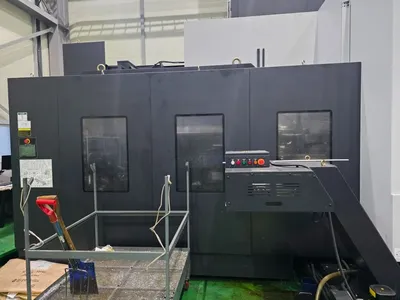

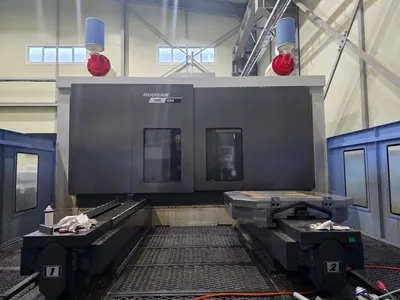

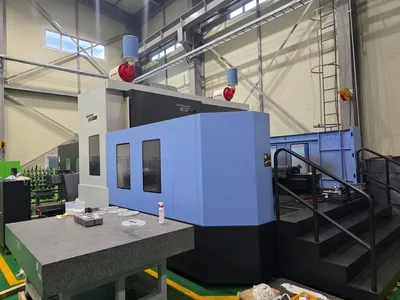

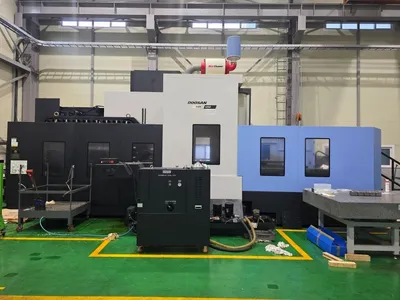

2022 Doosan HM 1250 CNC Horizontal Machining Center, used. Equipped with FANUC 31I-B control, high-pressure coolant through spindle, and chip conveyor. Features 82.7" X, 59.1" X, Y, Z travel, 6,000 RPM spindle, and 60 tool ATC. Pallet size 49.2" with 6,613 lb capacity.
| Pallet Size - L | 49.2" | 1,249.7 mm |
| Pallet Size - W | 49.2" | 1,249.7 mm |
| Number of Pallets | 2 | 2 |
| Pallet Weight Capacity | 6,613 lb | 2,999.6 kg |
| Pallet Surface to Spindle Center | 3.0" ~ 62" | 3.0" ~ 62" |
| Pallet Center To Spindle Gage Line | 11.2" ~ 70.3" | 11.2" ~ 70.3" |
| X - AxisTravel | 82.7" | 2,100.6 mm |
| Y - Axis Travel | 59.1" | 1,501.1 mm |
| Z - Axis Travel | 59.1" | 1,501.1 mm |
| B - Axis Travel | 1 DEGREE | 1 DEGREE |
| Rapid Traverse Rate - X | 944 in/min. | 24 m/min. |
| Rapid Traverse Rate - Y | 944 ipm | |
| Rapid Traverse Rate - Z | 944 ipm | |
| Cutting Feed Rate | 472.4 in/sec. | 719.9 m/min. |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | 50 | 50 |
| Main Motor | 50 hp | 37.3 kW |

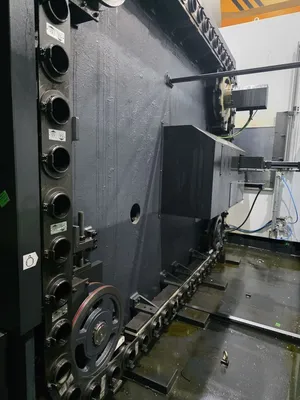

| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 5.1", 11.8" | 5.1", 11.8" |
| Tool Length | 25.6" | 650.24 mm |
| Tool Weight | 66.1 lb | 30 kg |
| Machine Weight | 68,342 lb | 30,999.4 kg |
| Control | CNC (FANUC 31I-B CNC COLOR CONTROL) | CNC (FANUC 31I-B CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |

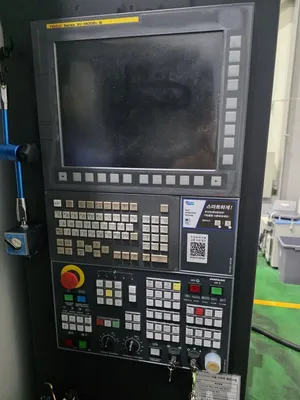

FANUC 31I-B CNC COLOR CONTROL

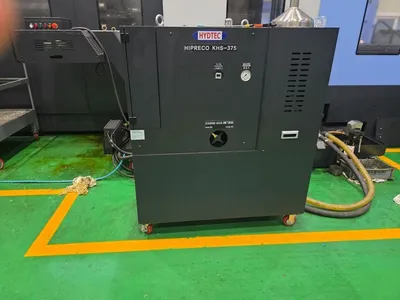

HIGH PRESSURE COOLANT THRU SPINDLE
CHIP CONVEYOR
MANUALS
