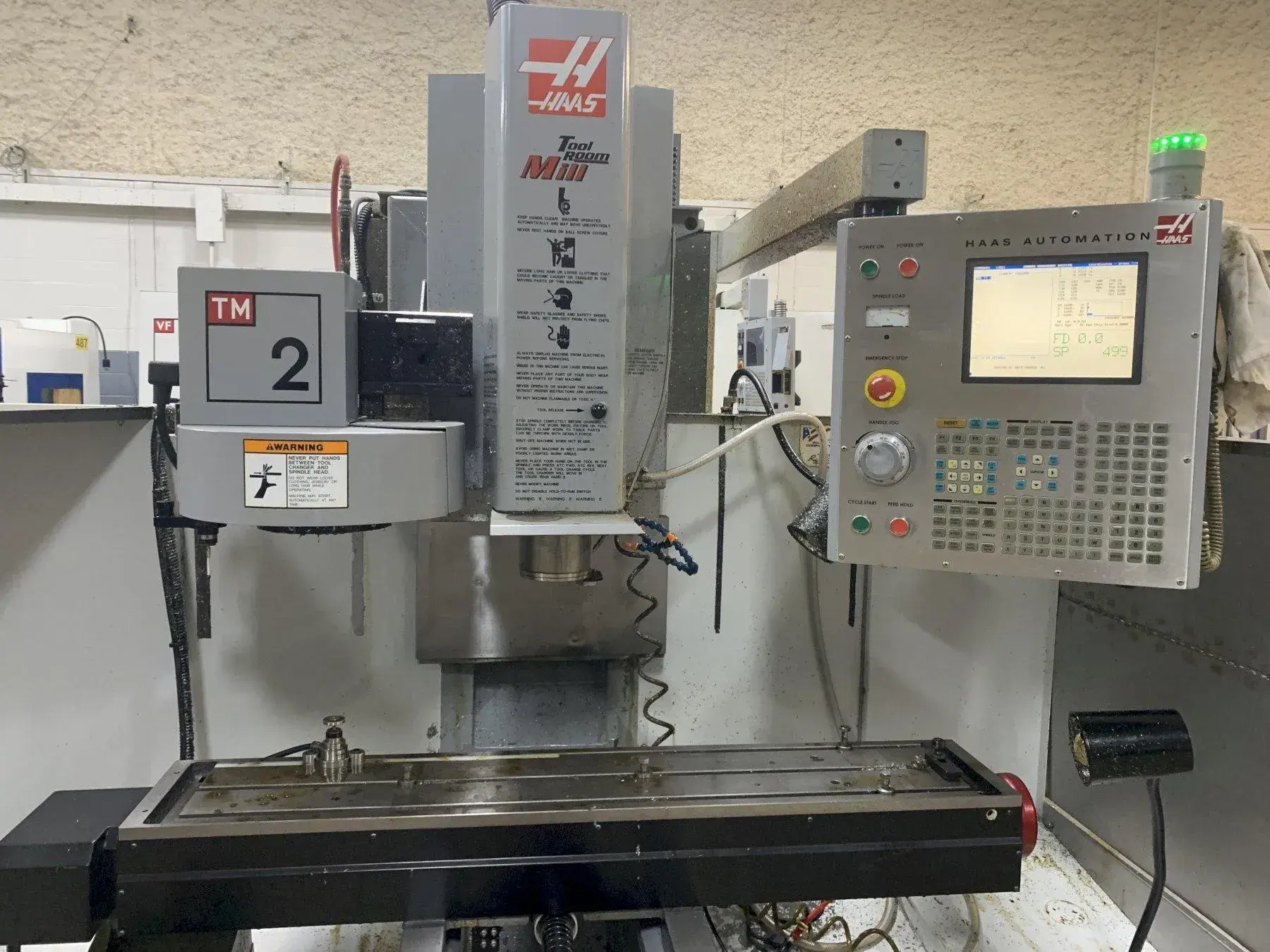

2006 HAAS TM-2 Vertical Machining Center offers 40"x16"x16" travel, 7.5 HP, 4000 RPM,4,190 spindle hours, and CAT-40 spindle. Compact 57.75"x10.5" table and 10-tool ATC make it ideal for precision tasks. Purchase a reliable partner in production today!
| X | 40" | 1,016 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 10 | 10 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 57.75" | 1,466.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 100" x 70" x 105" | 100" x 70" x 105" |
| Weight | 4,500lbs | 4,500lbs |
Specifications
Equipped With
Specifications:
Table size - 10.5" x 57.75"
X-Axis Travel - 40"
Y-Axis Travel - 16"
Z-Axis Travel - 16"
Spindle Speed - 4000 rpm
Spindle Motor - 7.5 HP
Spindle Taper - CT40
ATC Capacity - 10 pockets
Max Rapids - 200 ipm
Machine dimensions, approx - Specifications
Equipped With
Specifications:
Table size - 10.5" x 57.75"
X-Axis Travel - 40"
Y-Axis Travel - 16"
Z-Axis Travel - 16"
Spindle Speed - 4000 rpm
Spindle Motor - 7.5 HP
Spindle Taper - CT40
ATC Capacity - 10 pockets
Max Rapids - 200 ipm
Machine dimensions, approx - 100" x 70" x 105"
Machine weight, approx - 4500 lbs.
Haas CNC Control
Handwheels for X & Y
Tool Setter and Probe
10 Station ATC
Coolant Pump and Tank
