USED AIDA NS2-3000(2)

The AIDA Model NS2-3000(2) is a used straight side mechanical press boasting a capacity of 330 US tons. It features an 11.81-inch stroke length and operates at speeds from 15 to 35 strokes per minute, accommodating high-demand production settings. The slide area measures 94.48 inches by 35.43 inches, while the bolster area is 102.36 inches by 47.24 inches, offering ample working space for various applications.

This press offers 18.89 inches of die height with a slide adjustment of 5.11 inches, providing operational flexibility and precision. It is equipped with a 37 kW main motor that ensures robust performance and requires air pressure of 0.5 MPa. It supports a maximum upper die weight of 3,968 pounds, making it suitable for heavyweight tasks.

With its sturdy construction and reliable features, the AIDA NS2-3000(2) is an excellent choice for boosting production line efficiency. Its capability to handle diverse manufacturing needs ensures consistent, enhanced productivity.

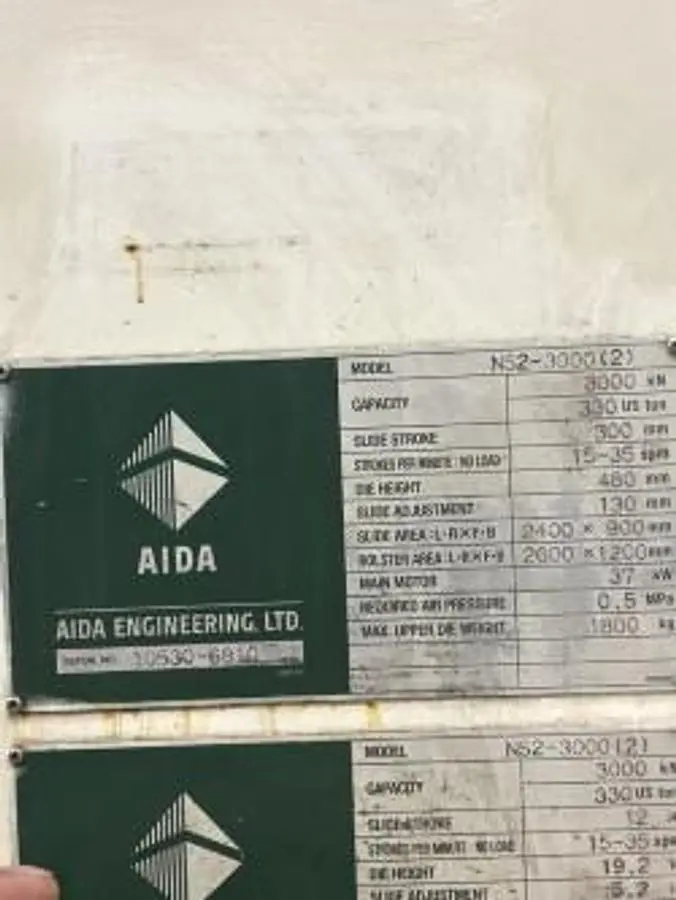

MODEL NUMBER: NS2-3000(2)
SERIAL NUMBER: 10530-6010
CAPACITY: 330 US TON
LENGTH OF STROKE: 11.81"
STROKES PER MINUTE: NO LOAD: 15-35
DIE HEIGHT: 18.89"
SLIDE ADJUSTMENT: 5.11"
SLIDE AREA: 94.48" LR x 35.43" FB
BOLSTER AREA: 102.36" LR x 47.24" FB
MAIN MOTOR: 37 kW
REQUIRED AIR PRESSURE: 0.5 MPa
MAX UPPER DIE WEIGHT: 3968 LBS
