USED CHALLENGE EH-3A

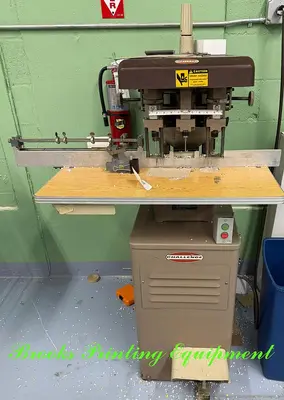

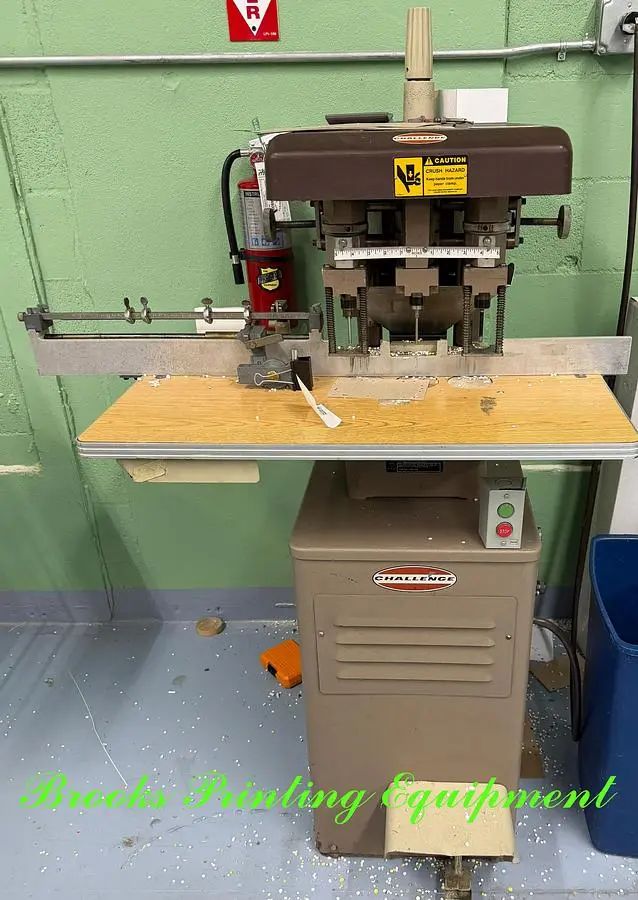

Challenge EH-3A 3 Hole Drill

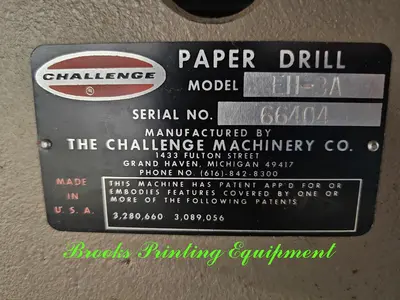

Serial #66404

Number of Drill Heads: 3
Range Between Drills: 2 3/4" to 4 1/2"
Range Between Outside Drills: 5 1/2" to 9"
Maximum Drilling Capacity: 2 1/2"Strokes Per Minute (adjustable): Up to 18
Backgauge Adjustment: 0 to 4 1/2"Vertical
Adjustment of Individual Heads: 1/4"
Table Size: 19 1/2" x 31 1/2"
Table Height: 37"
Overall Height: 59 1/4"
Floor Space Needed: 36" x 41 1/2"
Net Weight (approximate): 520 lbs.
Spindle Motor: 208-230V/18 amps/60 Hz/ AC Single Phase
Unique id: 20260405DNC66404
