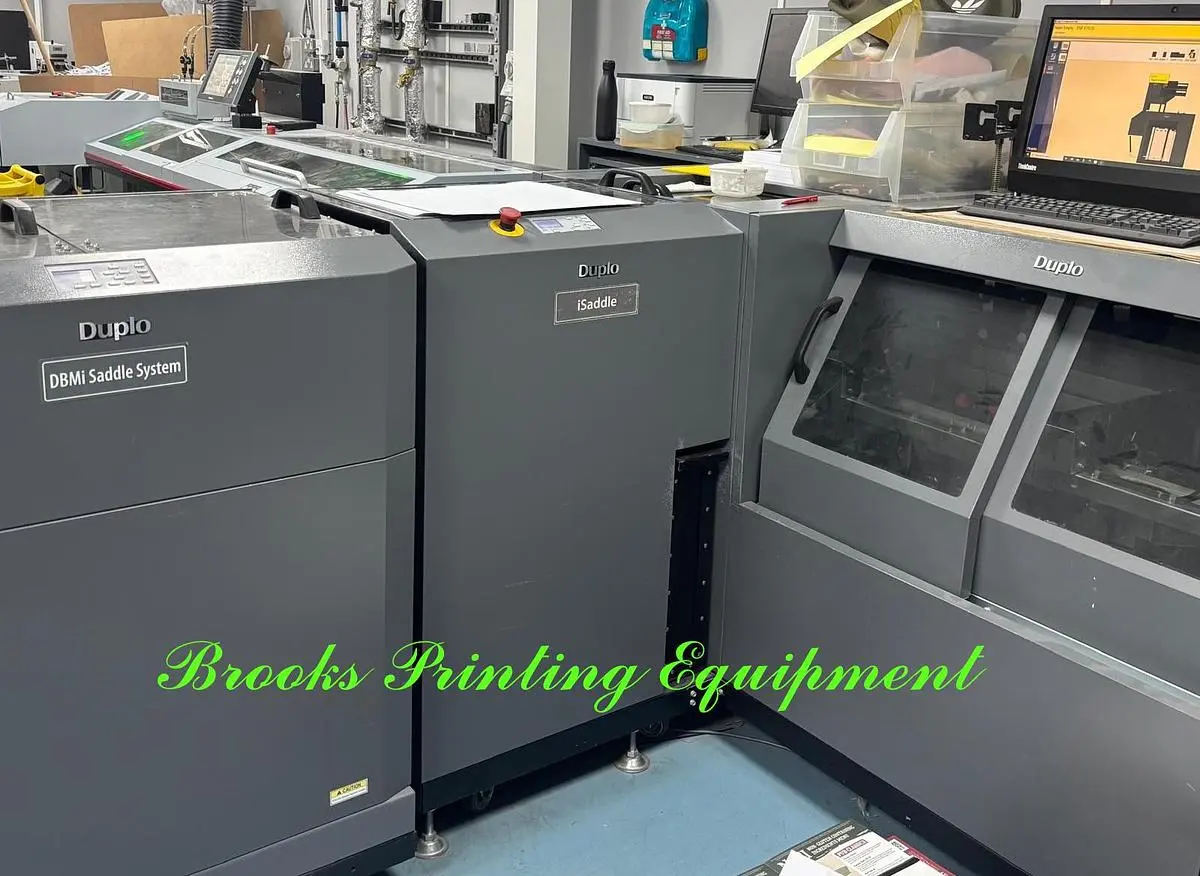

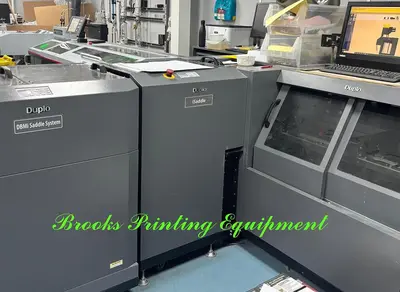

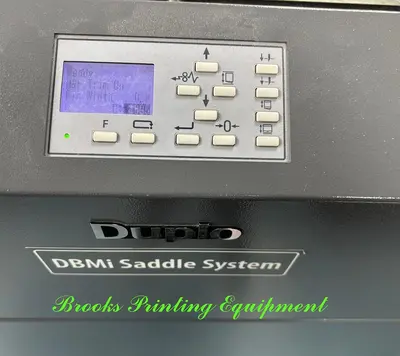

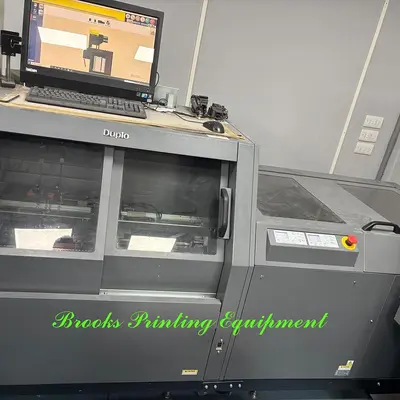

Duplo DBMi Saddle System with DSF-CFL Sheet Feeder & Cover Feeder, 2015
Overview
Description
Duplo DBMi Saddle System with DSF-CFL Sheet Feeder & Cover Feeder, 2015
Serial #150901023
Specifications
Paper type: Fine quality paper 64 to 157gsm
Art/Coated paper: 84.9 to 157gsm
Cover sheet: 300 gsm
Paper size: Saddle stitching/Length 210 to 610 mm Width 120 to 356 mm
Type of stitching: Saddle Stitch
Maximum booklet thickness: 6.0mm (1 Cover sheet + 29 inner sheets)
Maximum processing speed: A4 size, within 10 sheets 5,050sets/h A3 size, within 10 sheets 4,000sets/h
Thickness of Scoring/Folding: 1.0mm (DBMS-S5 stack sub-sets on the buffer section)
Trimming Width: 1 to 25mm
Number of stitch: 0 to 2 ( 3 or 4 stitch is available by optional equipment)
Detecting function 【DBMS-F5】: Paper jam, Cover open/close, Motor overload detection
Detecting Function【DBMS-S5】: Paper jam, No stitch detection, Stitcher dislocation detection, Cover open/close, Motor overload detection
Detecting Function 【DBMS-T5】: Paper jam, Cover open/close, Knife stop position error, Motor overload detection
Rating and power consumption 【DBMS-S5】: 200 to 240V, 50/60Hz, 3.0A, 510W
Rating and power consumption【DBMS-T5】: 200 to 240V, 50/60Hz, 2.5A, 355W
Unique id: 20261504DNC150901023
