USED WATKISS AUTO SPINEMASTER

Watkiss Auto Spine Master
Serial #WA/ASM/1564
This product is intended for the re-forming of booklet spines, to flatten the booklet and give a square appearance to the spine, within the specifications below.

Production: up to 1400 per hour single pass
Booklet Size: from 80 x 120mm to 250 x 350mm (dependant on specification of connected equipment)
Booklet Thickness: minimum of 1mm, 0.04”maximum of 6.5mm, 0.25”. This is approximately 30 sheets of 80gsm (20# bond) folded into a 120 page booklet

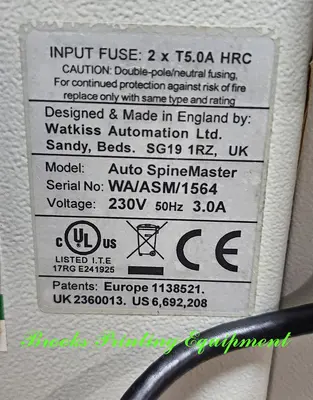

Electrical: 230V, 50Hz, 3A or 115V, 60Hz, 5ASingle Phase, Earthed supply required
Noise: 72 dB(A)
Dimensions: Width: 28" Depth: 29.5" Height: 49" Weight: 630 Lbs.
Unique id: 20260804DNCWA/ASM/1564
