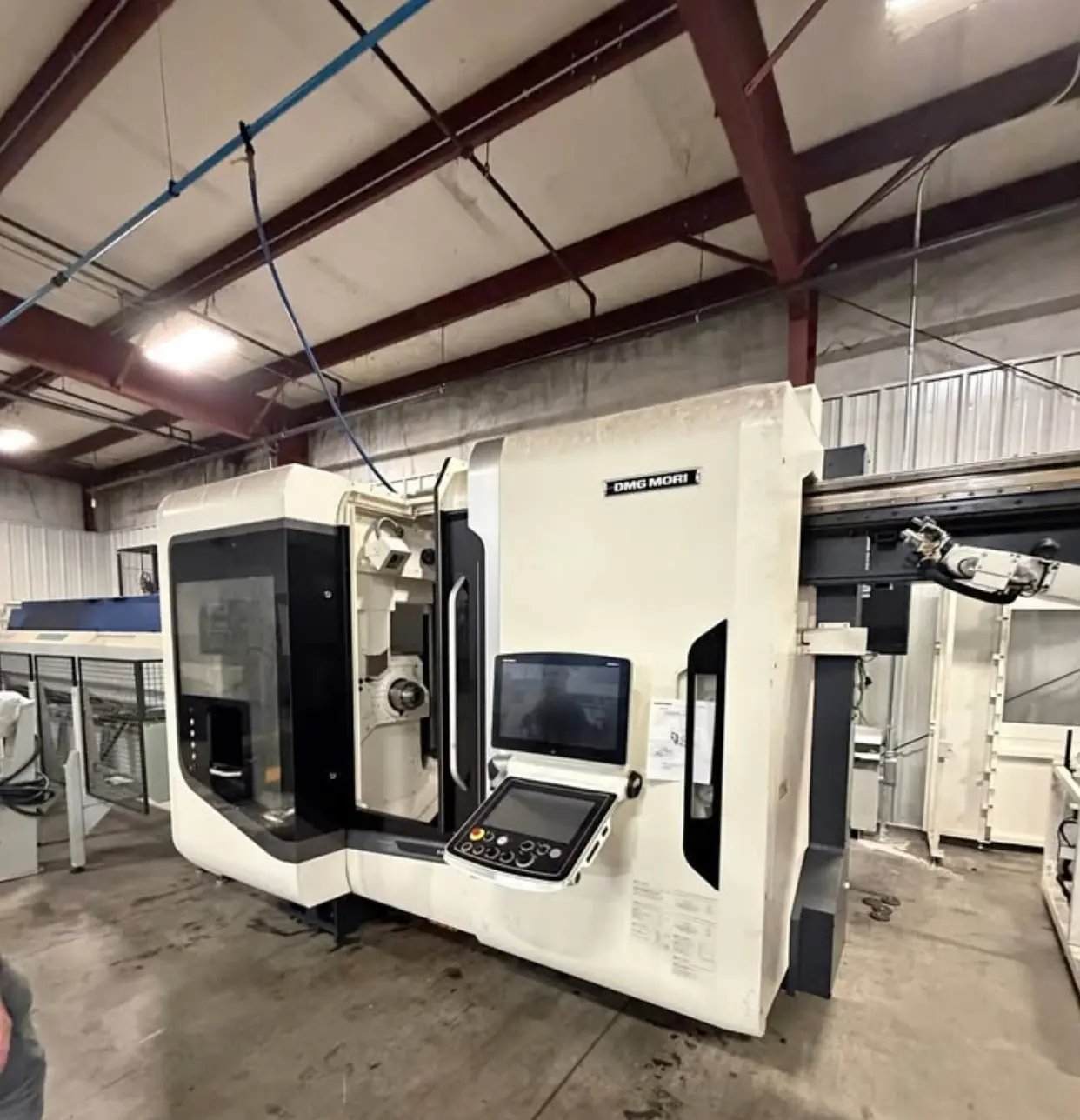

USED 2019 DMG MORI NTX 1000

5-axis CNC lathe, used. Equipped with gantry loader, Fanuc robot, automatic bar feeder, and a robust toolset including a 76-tool magazine and HSK-A50 spindle. Includes mist collector, chip conveyor, and more.

# Axis 5
Swing 450 mm
Machining Length 800 mm
Chuck Size 8"
Bar Capacity 73 mm
Power 22 kW
Max RPM 6,000 RPM
Turning Dia 430 mm
Control CNC (CELOS)
Tool Magazine: 76 Tools
Tool Spindle: HSK-A50
Tool Spindle Speed: 20,000 RPM
Main Spindle Speed: 5,000 RPM
Counter Spindle Speed: 6,000 RPM
Lower Turret: 10 Station, Milling Capable
Machine Weight: Approx. 25,300–26,400 lbs

Gantry Loader / In-Machine Traveling Robot
Fanuc LR Mate 200iD 7L Robot
IEMCA Master 80F Automatic Bar Feeder
Kitagawa 8" Hollow Chucks
76-Tool HSK-A50 Magazine
20,000 RPM compactMASTER Tool Spindle
10-Station Lower Turret with Milling Capability
Renishaw RMP600 In-Machine Workpiece Measuring System
Automatic In-Machine Tool Presetter
Chip Conveyor
Mist Collector
Automatic Door
Gear Skiving Technology Cycle
3D quickSET
Machine Protection Control
Text Engraving Function
Program Restart
DMG MORI Messenger
In-Machine HD Network Camera
Weekly Timer
Additional External M-Codes
Manual Pulse Generator
