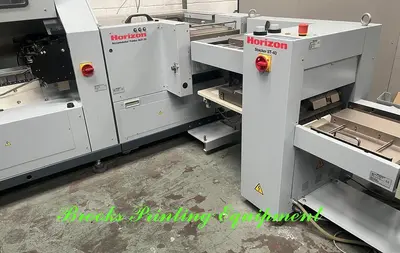

USED 2012 HORIZON SL5500S

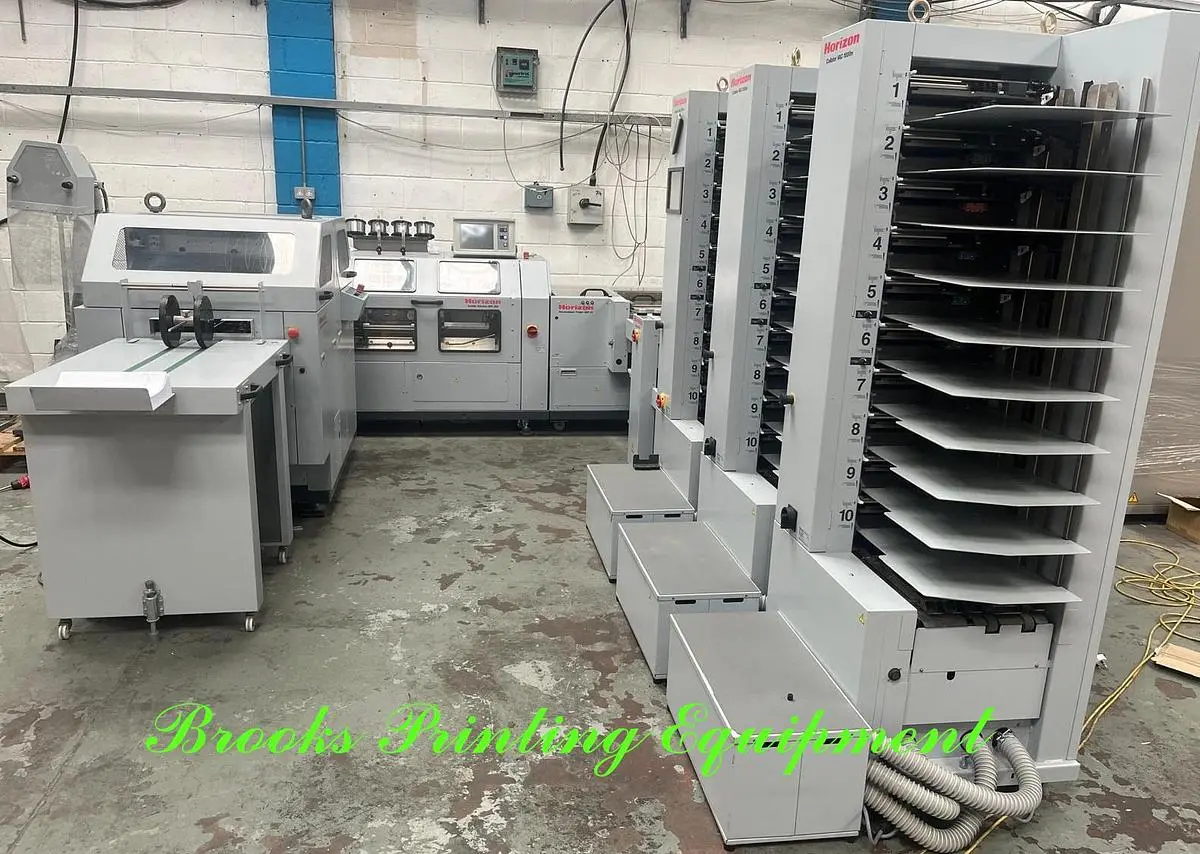

Horizon SL5500S with 3 Vac 1000 Towers, 2012

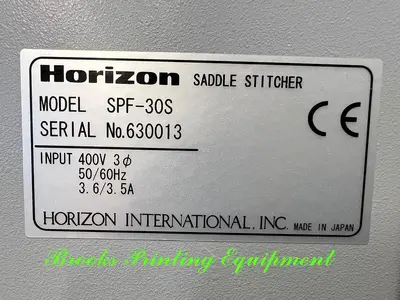

Serial #630013

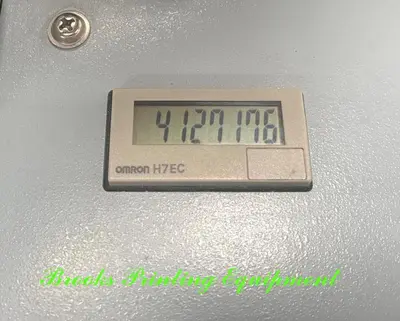

Book Count: 4.1 mil

Maximum Sheet Size: 13.77″ W x 19.68″ L
Minimum Sheet Size: 5.52″ W x 7.84 L
Sheet Weight Range: Normal: 64 to 210 gsm / Coated: 80 to 210 gsm
Maximum Booklet Size (before trim): 13.77″ x 9.84″
Minimum Booklet Size (before trim): 5.52″ x 3.9″
Trim Width: 0.08″ to 1″
VAC-1000: Number of Bins 10
Sheet Feeding System: Suction Rotor System
Max. Sheet Size: 13.77” W × 19.68"L
Min. Sheet Size: 5.83” W × 5.83” L
VAC-1000 Sheet Weight Range: Art / Coated Paper : 73.3 to 207 gsm Normal Paper : 52.3 to 207 gsm 8-page fold signature : up to 104.7 gsm
Bin Stack Height: Max.Stack Height 2.16" Max. Stack Weight 24.3 lb each bin
Sheet Overlap: Front delivery : 4 Steps Maximum, Large, Middle and Small Rear delivery : 4 Steps Maximum, Large, Middle and Small
VAC-1000 Production Speed: 10 bins Max. 9,900 sets per hour (A5LEF, Straight Receiving) Max. 8,900 sets per hour (A4LEF, Straight Receiving)
Bin Production Speed: limited by the type of finisher or sheet weight.
20 bins: Max. 6,900 sets per hour (A4LEF, Straight Receiving)
30 bins: Max. 6,400 sets per hour (A4LEF, Straight Receiving)
Electrical: Single Phase 208 / 220 V, 50 or 60 Hz Single Phase 230 to 240 V, 50 or 60 Hz
Unique id: 20261803DNC630013SPF-30S
