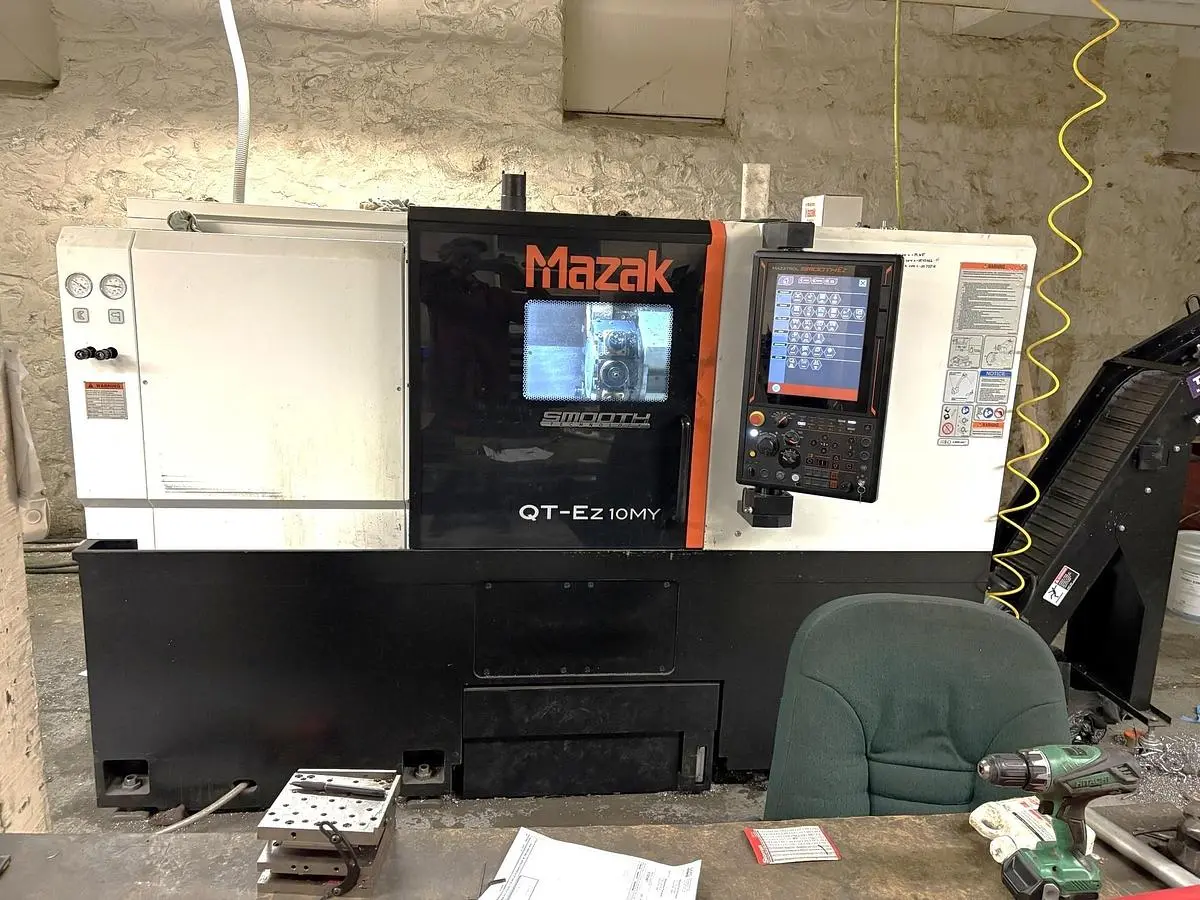

USED 2022 MAZAK QT-EZ 10MY

Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
Transformer
USB Port Interface
RS 232 Port Interface
Relocation Device
Coolant System with Tank & Pump
All Available Manuals
Some Static Tool Holders

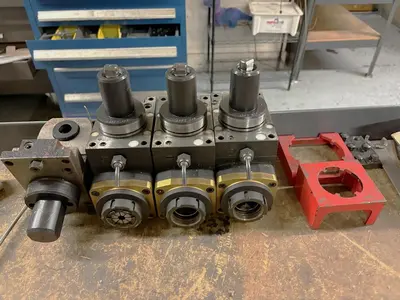

(6) Live Tool Holders
Wired 208V Electrics

**Machine has cut aluminum, brass, stainless and titanium for the optics industry. Routinely holding +/- .001 tolerance and has done jobs holding as tight as +/- .0005.
**There is a crack in the actuator from whipping a bar, but it has not effected its functionality**

**Power On Hours 5,840**
**Auto Operation Hours 2,587**
**Total Cutting Hours 1,737**

**Manufactured New in January of 2022**

The 2021 Mazak QT-EZ 10MY is a versatile CNC lathe designed for precision machining with advanced capabilities. It's equipped with the Mazatrol Smart EZ Control system, providing user-friendly operation and efficient workflow management. The lathe features a main spindle with a 10-inch 3-jaw hydraulic chuck and supports a 27.4-inch maximum swing, accommodating various workpiece sizes.

This model boasts a maximum cutting diameter of 16.13 inches and a cutting length of 22.83 inches. The machine supports X, Y, and Z-axis travel of 8.5, 4.0, and 25 inches, respectively, and incorporates a precise C-axis with 0.001-degree rotation. With spindle speeds reaching up to 4,200 RPM and a 20 HP motor, it offers impressive performance for demanding tasks.

The Mazak QT-EZ 10MY includes a 12-station turret for versatile tool applications and efficient processing, housed within dimensions of 110 x 75 x 68 inches and a weight of 11,650 pounds. Its robust construction and advanced functionalities make it a reliable choice for complex machining operations.

Machine Control: Mazatrol Smart EZ Control
Chuck Size: 10" 3 Jaw Hydraulic Chuck
Maximum Swing: 27.4"
Maximum Cutting Diameter: 16.13"
Maximum Cutting Length: 22.83"
X-Axis Travel: 8.5"
Y-Axis Travel: 4.0"
Z-Axis Travel: 25"
C-Axis Rotation: .001 Degree Rotation
Spindle Nose / Bore / Bar Capacity: A2-6" / 3.4" / 3.0"
Spindle Speeds: 4,200 RPM
Spindle Motor: 20 HP
Milling Spindle Speed / Motor Horsepower: not available / 7.5 HP
Number of Turret Positions: 12 Station Turret Bolt on Type
Machine Dimensions LxWxH: 110" x 75" x 68"
Machine Weight: 11,650 lbs
